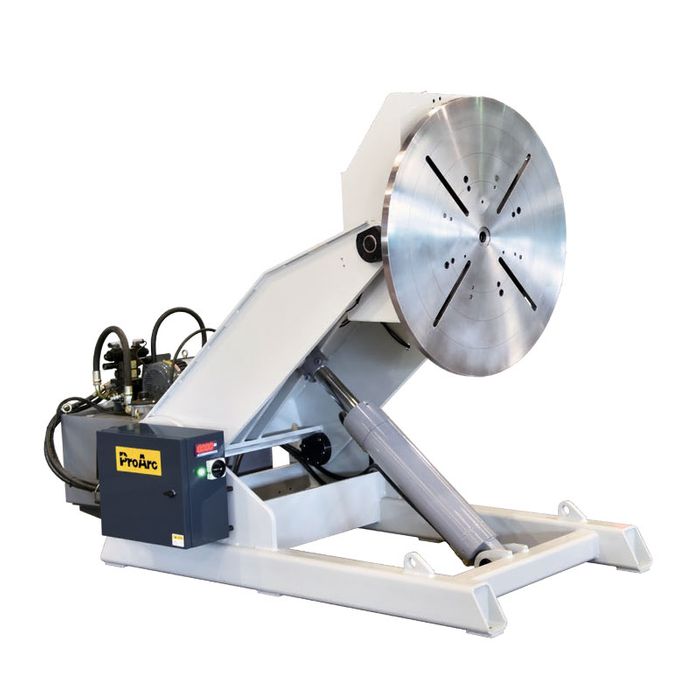

ProArc 3 Axis Hydraulic Welding Positioner 2000kg 220V

Stock Code:
PT-2000H
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites


Please note this product is unavailable until further notice.

Looking for a welding positioner? Click here to view other products currently available.

Downloads

Description

• Flexible to move and adjust workpiece height, angle and rotating speed to attain an ideal and perfect working position.
• Inverter-controlled faceplate provides smooth and accurate rotation movement in all loading conditions. Powerful hydraulic tilting and height adjustments enable safe positioning of the workpiece to optimal welding and working condition.
• All movements can be controlled from a handy remote pendant. The operator can monitor rotation speed from digital RPM display.
• For safety, PT-H series hydraulic system is equipped with safety valves for power off emergency situation and a self-locked design worm reducer. Conforms to CE standard.

Applications:
• Pressure vessels
• Ship buildings
• Oil and gas industry

Options:
• Variable speed foot control
• 3-Jaw chucks | PG-500, OD 4 ~ 500mm; PG-750, OD 15 ~ 750mm; ID 100 ~ 750mm

Specifications:
Power input: AC 220V 50/60 Hz, 3 phase
Capacity (W): 2000kg
Rated center of gravity (S): 300mm
Rated eccentricity (R): 300mm
Rotation speed (RPM): 0.05 ~ 0.8
Tilt range: 0 ~ 135°
Tilt speed (0 ~ 135°): 58 seconds
Earthing: 1200 amps
Overall length (mm): 2110
Overall width (mm): 1180
Overall height (mm): 846 ~ 1572
Centre to floor (mm): 720~ 1446
Table dimension (mm): 800
Through hole (mm): Ø35
Table pilot hole (dia. x depth) (mm): 50 x 5
Table slot bolt size (mm): M16
Weight: 1400kg

Details

  • Brand:
    ProArc
  • Web Type:
    ProArc Hydraulic Welding Positioners
  • Unit/Pack:
    EA
  • Pack Qty:
    1
