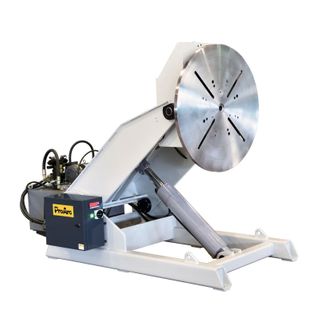

ProArc 3 Axis Hydraulic Welding Positioner 3000kg 220V

Stock Code:
Contact Us For Price
Stock Level:
Please contact us for stock availability


• Flexible to move and adjust workpiece height, angle and rotating speed to attain an ideal and perfect working position.
• Inverter-controlled faceplate provides smooth and accurate rotation movement in all loading conditions. Powerful hydraulic tilting and height adjustments enable safe positioning of the workpiece to optimal welding and working condition.
• All movements can be controlled from a handy remote pendant. The operator can monitor rotation speed from digital RPM display.
• For safety, PT-H series hydraulic system is equipped with safety valves for power off emergency situation and a self-locked design worm reducer. Conforms to CE standard.

• Pressure vessels
• Ship buildings
• Oil and gas industry

• Variable speed foot control
• 3-Jaw chucks | PG-500, OD 4 ~ 500mm; PG-750, OD 15 ~ 750mm; ID 100 ~ 750mm

Power input: AC 220V 50/60 Hz, 3 phase
Capacity (W): 3000kg
Rated center of gravity (S): 300mm
Rated eccentricity (R): 200mm
Rotation speed (RPM): 0.05 ~ 0.8
Tilt range: 0 ~ 135°
Tilt speed (0 ~ 135°): 65 seconds
Earthing: 1200 amps
Overall length (mm): 2650
Overall width (mm): 1300
Overall height (mm): 991 ~ 1835
Centre to floor (mm): 850~ 1695
Table dimension (mm): 1000
Through hole (mm): Ø40
Table pilot hole (dia. x depth) (mm): 75 x 5
Table slot bolt size (mm): M20
Weight: 2700kg
