ProArc Headstock-Tailstock Welding Positioner 15 Tonne 220V

Stock Code:
HTS-15K
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

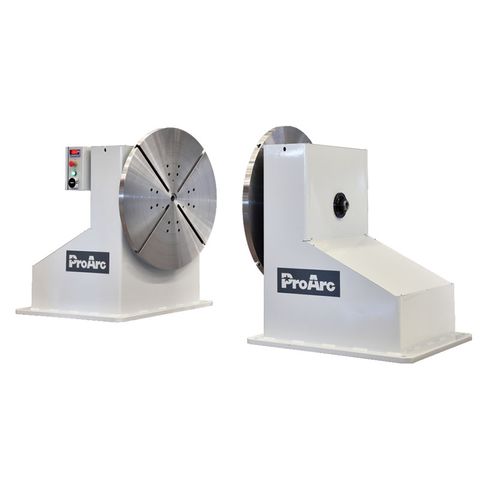

The ProArc HTS-15K welding positioner comprises of the HS-7500 headstock and TS-7500 tailstock.

Features & benefits:
• All welded steel frame structure
• For long weldments rotation
• Machined 'T' slots table with pilot and through hole
• A.C. inverter drive for rotation
• Forward-stop-reverse and variable speed control are standard
• Totally gear-safe design
• Maintenance-free grounding system
• Optional adjustable table height to fit larger workpieces
• Available capacities range from 500kg to 20,000kg

Specifications:
HS-Headstock/TS-Tailstock: HS-7500/TS-7500
Power input: AC 220V 50/60 Hz, 3 phase
Rotation motor (hp): 3
Overall length (mm): 1350
Overall width (mm): 1500
Overall height (mm): 2000
Centre to floor (mm): 1250
Bold-down hole dia.*square (mm): 28*1200
Capacity (kg): 7500 (HS-7500)/7500 (TS-7500)
Total loading capacity (kg): 15,000
Rated eccentricity (mm): 300
Eccentric load torque rating (kg-cm): 225,000
Table dimension (mm): 1500 x 1500
Through hole (mm): Ø50
Table pilot hole (dia. x depth) (mm): Ø100 x 5
Table slot bolt size: M30
Rotation speed (RPM): 0.02 ~ 0.5
Earthing (amp): 1200

Details

  • Brand:
    ProArc
  • Web Type:
    ProArc Headstock-Tailstock Welding Positioners
  • Unit/Pack:
    EA
  • Pack Qty:
    1
