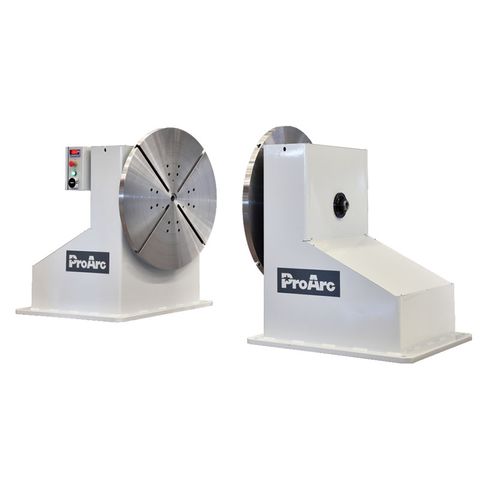

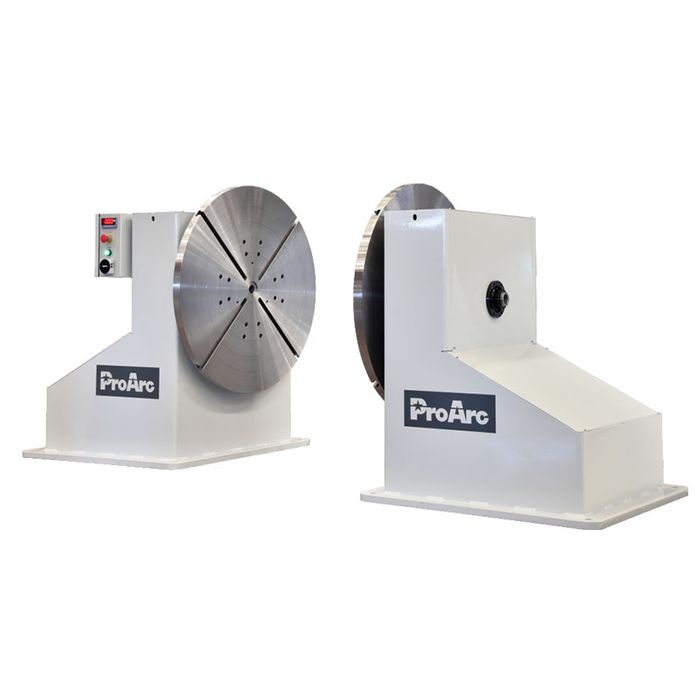

The ProArc HTS-10K welding positioner comprises of the HS-5000 headstock and TS-5000 tailstock.

Features & benefits:
• All welded steel frame structure
• For long weldments rotation
• Machined 'T' slots table with pilot and through hole
• A.C. inverter drive for rotation
• Forward-stop-reverse and variable speed control are standard
• Totally gear-safe design
• Maintenance-free grounding system
• Optional adjustable table height to fit larger workpieces
• Available capacities range from 500kg to 20,000kg

Specifications:
HS-Headstock/TS-Tailstock: HS-5000/TS-5000
Power input: AC 220V 50/60 Hz, 3 phase
Rotation motor (hp): 2
Overall length (mm): 1150
Overall width (mm): 1200
Overall height (mm): 1600
Centre to floor (mm): 1000
Bold-down hole dia.*square (mm): 28*1000
Capacity (kg): 5000 (HS-5000)/5000 (TS-5000)
Total loading capacity (kg): 10,000
Rated eccentricity (mm): 200
Eccentric load torque rating (kg-cm): 100,000
Table dimension (mm): 1200
Through hole (mm): Ø40
Table pilot hole (dia. x depth) (mm): Ø75 x 5
Table slot bolt size: M24
Rotation speed (RPM): 0.04 ~ 0.8
Earthing (amp): 600

Details

  • Brand:
    ProArc
  • Web Type:
    ProArc Headstock-Tailstock Welding Positioners
  • Unit/Pack:
    EA
  • Pack Qty:
    1
