Arcair K4000 Gouging Torch 1m Air/Power

Stock Code:
AA61082008KIT
Price:
$683.30 excl GST
Special order item
Get a Fast Quote
Add to Favourites

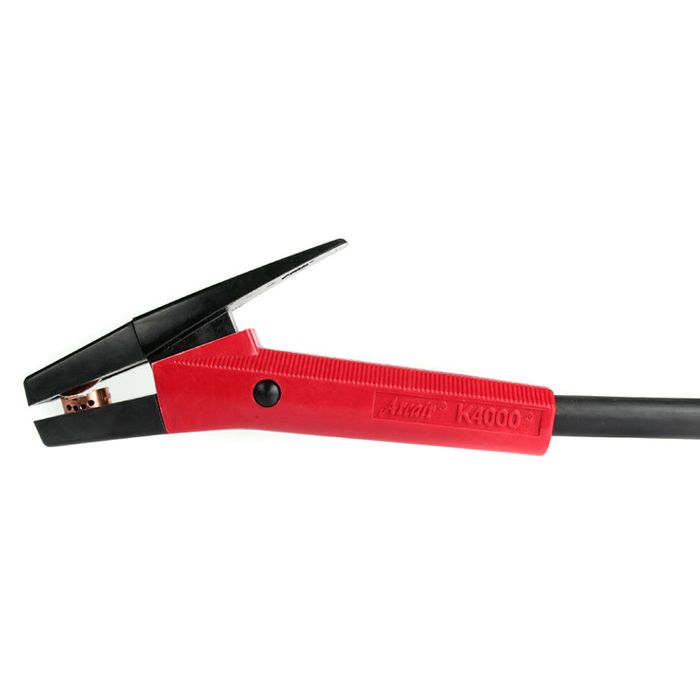

The Arcair K4000® is a durable carbon-arc gouging hand held torch that features an ergonomic design to provide operator comfort and is made for heavy-duty metal removal applications such as pin removals, removing old welds, gouging out cracks, cleaning and repairing castings.

The genuine Arcair boot design helps keep the power connection securely enclosed during operation. Unlike conventional rubber boots that can shift and potentially expose the live connection, the rigid Arcair cover is mechanically secured in place to help prevent movement and reduce the risk of accidental arcing.

This kit comes complete ready to use with 1.0m Air & Power Hoses, Minsup® or Nitto® fittings. Kits can be made any length to suit your application. Please advise Alphaweld of your specific requirements.

Please note: Setup requires a welding power source, air compressor and carbon electrodes.


FEATURES

  • Easy to operate air valve
  • 15° torch angle with swivel head provides greater operator comfort
  • Positive grip handle maximises operator feel and ease in positioning torch
  • Durable front insulators, high impact and heat resistant that protects the torch metal parts
  • Swivel cable gives less cable twist and less strain on the operator
  • Reduced weight optimised to minimise fatigue
  • Genuine Arcair boot design
  • High quality cable hose offers non-conductive, high heat ad abrasion resistance
  • Head assembly machined from copper alloy with 4 air blast holes maximising the airflow to the arc
  • Lever spring provides excellent clamping pressure on the air carbon-arc electrode


SPECIFICATIONS

Accepts:
Pointed Carbons: 4mm to 12.7mm
Flat Carbons: 10mm to 15.9mm
Jointed Carbons: 7.9mm to 12.7mm
Maximum Amps: 1000A
Air Pressure: 80 psi (5.6kg/cm2)
Flow Rate: 28 cfm (0.79m3/min)
Torch & Cable Weight: 2.4kg
(depended on hose lengths supplied)

Details

  • Brand:
    Arcair
  • Web Type:
    Arcair Gouging Torches
  • Unit/Pack:
    EA
