Hypertherm Powermax 33XP with Duramax LT Hand Torch

Stock Code:
088591
Contact Us For Price
Stock Level:
Please contact us for stock availability
Get a Fast Quote
Add to Favourites

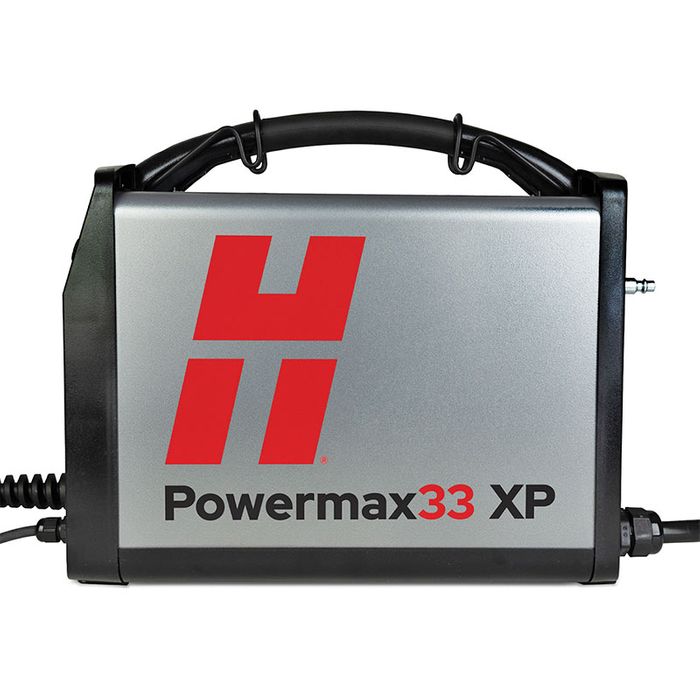

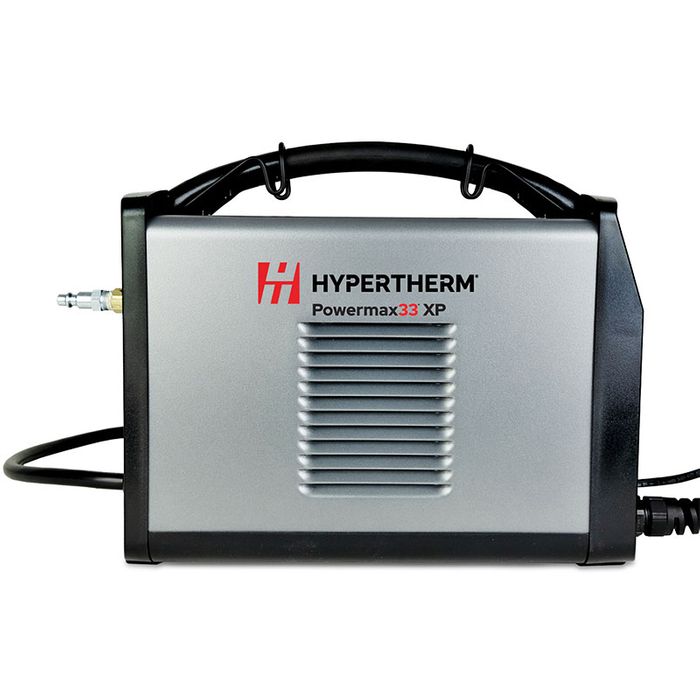

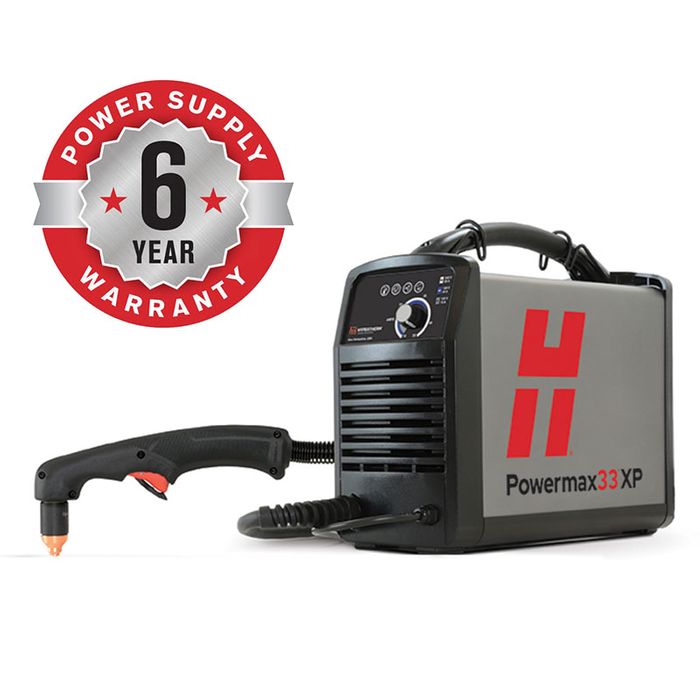

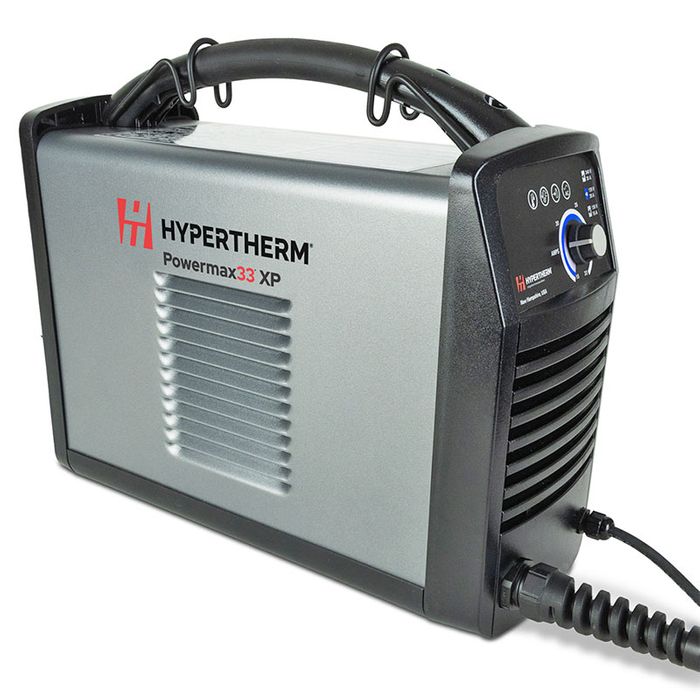

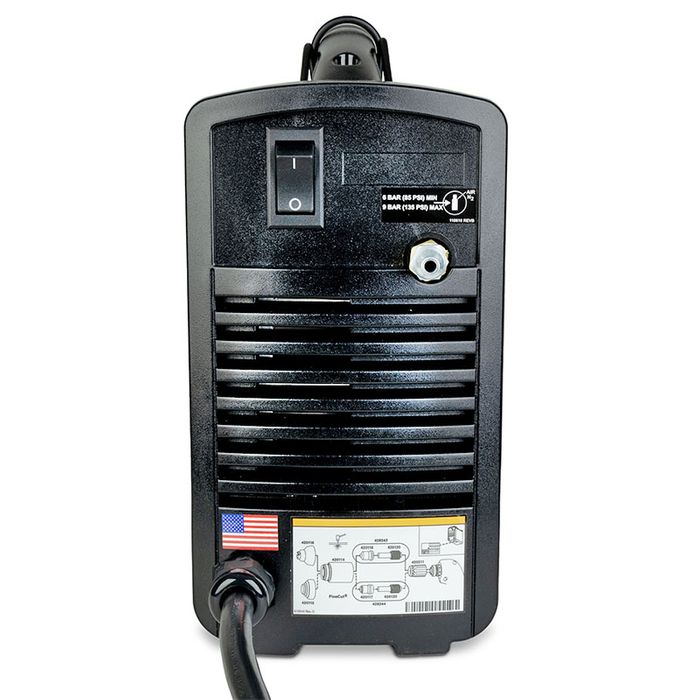

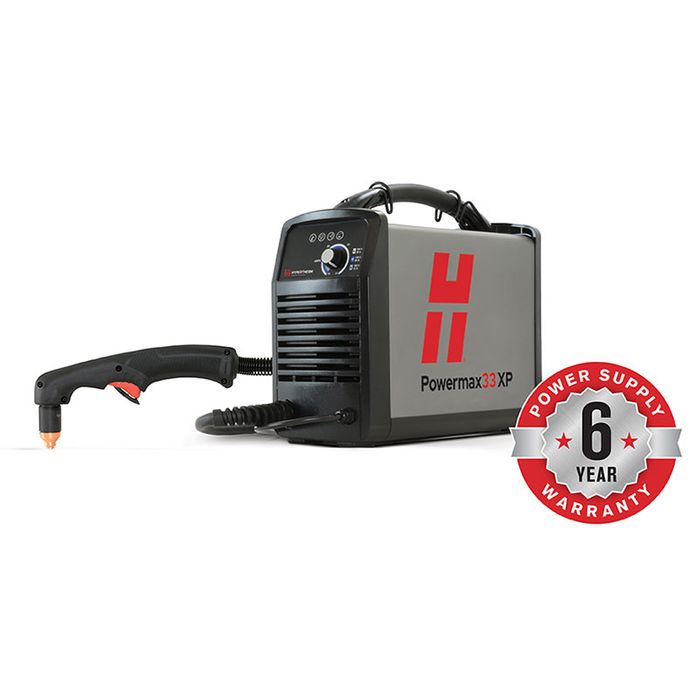

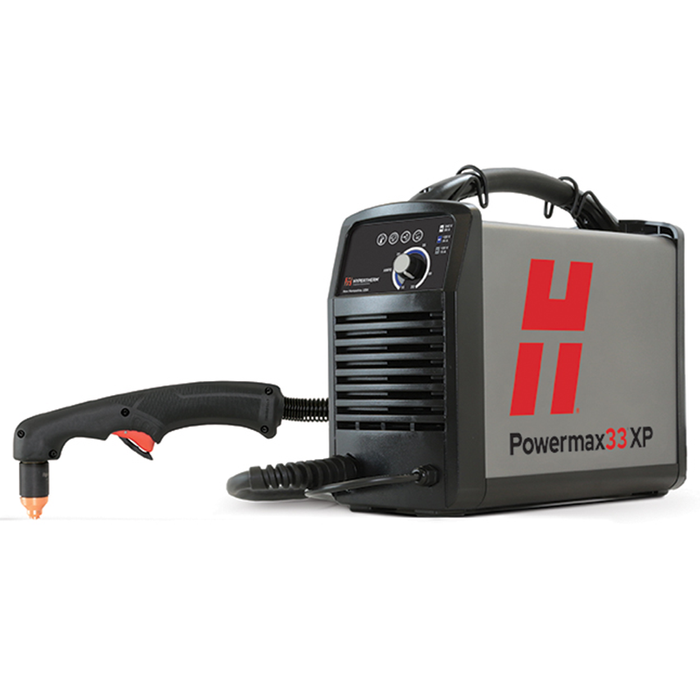

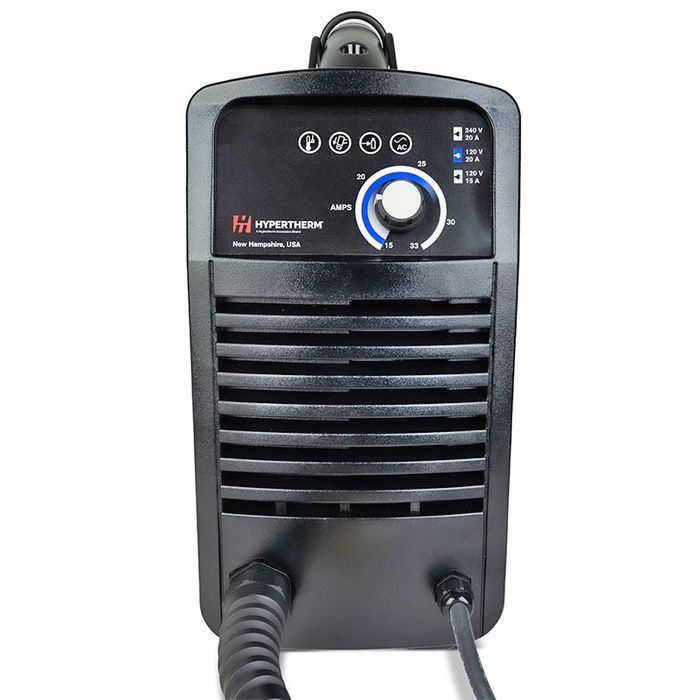

The Hypertherm Powermax 33XP (088591) is a professional grade, portable powerhouse that delivers the most power and thickest cutting capacity in its class, along with an unmatched 6-year power supply warranty.

Highly portable, the Powermax 33XP handles a wide range of jobs and provides high-power capability for thick-metal cutting and FineCut® consumables for detailed, thin-metal cutting. It has a recommended cut capacity of 13mm (1/2”) and severance capacity of 20mm (3/4”). With a dual-voltage design, it can run on both a 240V and 120V circuit.

FEATURES & BENEFITS

Get up and running quickly
Portable and easy-to-use, get cutting quickly with improved cut quality

Longer consumable life
Up to 10 x longer consumable life compared to competitors saves money in the long run

Built to last
Robust design ensures system durability in harsh environments, backed by an industry-leading warranty

APPLICATIONS

  • Automotive repair/restoration
  • Metal art and signage
  • Property/plant maintenance
  • HVAC/mechanical contracting
  • Educational/trade schools
  • Agricultural/equipment maintenance

PRODUCT VIDEO


CUT & GOUGE CAPACITIES

 Capacity  Thickness Cut Speed
   Cutting
 Recommended  13mm (1/2") 400mm/min (16 ipm)
   16mm (5/8") 250mm/min (10 ipm)
 Severance  20mm (3/4") 125mm/min (5 ipm)

 Torch Output*   4.1kW
  33A x 125V ÷ 1000W = 4.1kW

*Higher output voltage at the torch, plus efficiently designed consumables, result in a faster, cleaner cut.

SPECIFICATIONS

Input voltages (± 10%): 120–240V, 1-PH, 50/60Hz
Input current @ 4.1 kW: 120–240V, 1-PH, 24-20.5A
Output current: 15-33A
Rated output voltage: 125 VDC
Duty cycle @ 40°C: 35%, 240 V20%, 120V
Open circuit voltage (OCV): 256 VDC
Gas supply: Clean, dry, oil-free air or nitrogen
Recommended gas inlet flowrate/pressure: 113.3 l/min (4 scfm) @ 80 psi (5.5 bar)
Input power cable length: 3m
Power supply type: Inverter – IGBT
Engine drive requirement: 5.5kW for full 33A output
Recyclability: 100%
Dimensions with handles: 356mm (14.0") D; 140mm (5.5") W; 292mm (11.5") H
Weight with 4.5m (15') torch: 9.5kg
Warranty: Power supply (6-year), Torch (1-year)
