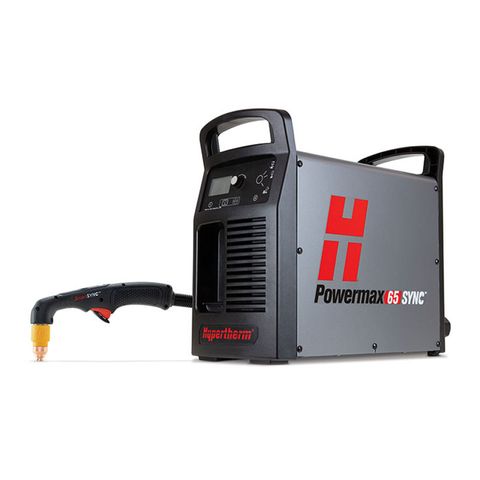

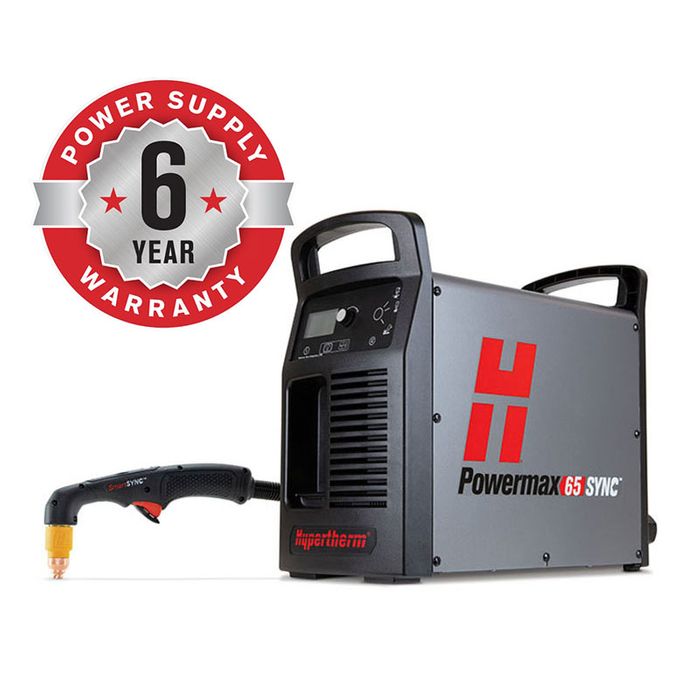

Hypertherm Powermax 65 SYNC with 75°Torch

Stock Code:
Contact Us For Price
Stock Level:
Currently in Stock



The Hypertherm Powermax65 SYNC™ is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 20 mm (3/4″) and maximises productivity through reductions in downtime, optimised cut quality performance and streamlined consumable inventory management.

Package includes 75 degree handheld torch with 7.6m (25’) lead.

Key features:
• Easy to identify single-piece cartridge consumables are colour coded by process to eliminate parts mix-up and simplify consumable inventory management.
• Time-saving torch controls allow the operator to adjust the amperage on the fly and change consumables and applications without returning to the power supply.
• New SmartSYNC torches with the Hypertherm cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
• Tackle a wide range of jobs with easily interchangeable torch styles and application-specific Hypertherm cartridge consumables for various types of cutting and gouging.
• End of life detection lets the operator know when it’s time to change the cartridge.
• Advanced cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanised setups compared to standard consumables.

• Input voltages: 200–600 V, 3-PH, 50/60 Hz
• Kilowatt output: 9 kW
• Input current: 200/208/240/480 V, 1-PH 52/50/44/22 A @ 9 kW; 200/208/240/480/600 V, 3-PH 32/31/27/13/13 A @ 9 kW
• Output current: 20–65 A
• Rated output voltage: 139 VDC
• Duty cycle: 50% @ 65 A, 230–600 V, 1/3-PH; 40% @ 65 A, 200–208 V, 1/3-PH; 100% @ 46 A, 230–600 V, 1/3-PH
• Open circuit voltage (OCV): 295 VDC
• Dimensions with handles: 483 mm D; 233 mm W; 430 mm H
• Weight w/7.6 m (25′) torch: 29 kg
• Gas supply: Clean, dry, oil-free air or nitrogen
• Optimum inlet gas pressure: 7.6–8.3 bar
• Minimum inlet gas pressure: 5.2 bar
• Recommended inlet gas flow rate: Cutting: 210 l/min @ 5.9 bar; Gouging: 210 l/min @ 4.8 bar
• Input power cable length: 3m
• Power supply type: Inverter – IGBT
• Engine drive requirement: 15 kW for full 65 A output
• Certifications: CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. UKCA – Great Britain
• Warranty: Power supplies have a 3-year warranty and torches a 1-year warranty


  • Brand:
  • Web Type:
    Hypertherm Machines
  • Unit/Pack:
  • Pack Qty:
