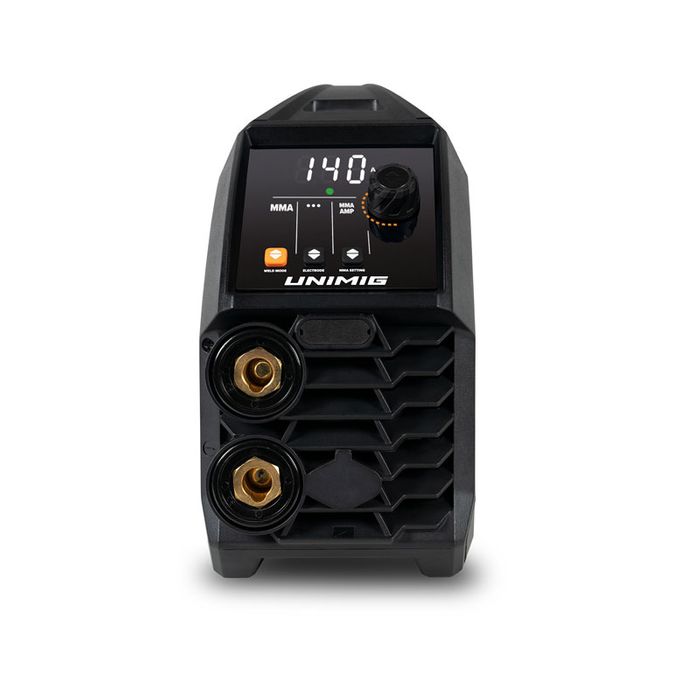

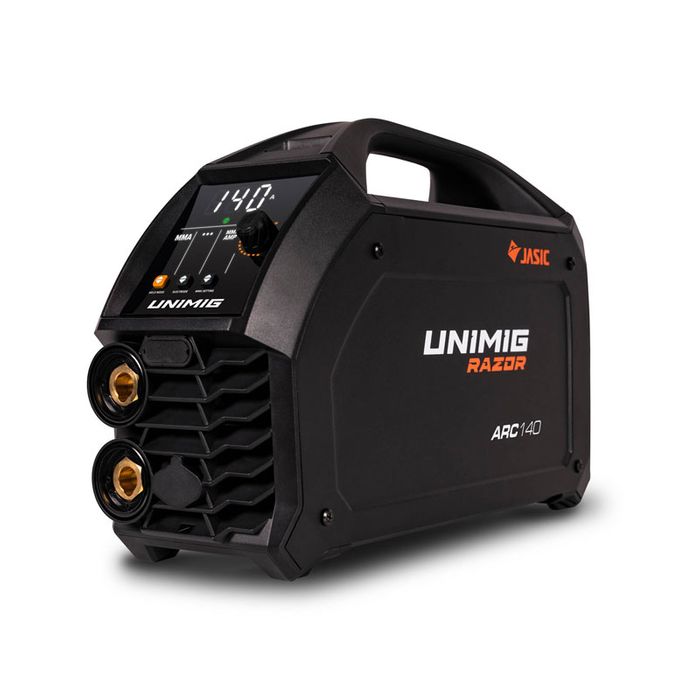

Unimig RAZOR Arc 140 Stick/TIG Welder

Stock Code:
U13004
Price:
$585.50 excl GST
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

The Unimig RAZOR ARC 140 is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Designed to be taken on the worksite or the workshop, this powerful, professional STICK (MMA) machine is packed full of advanced features including hot start, arc force and anti-stick, and is capable of DC Lift Arc TIG for more versatility.


Key features:

  • 10 Amp Plug - easilly connect to a 10 Amp outlet
  • DC Lift Arc TIG - TIG welding functionality
  • Hot Start / Arc Force for better MMA weld control
  • HD backlit interface

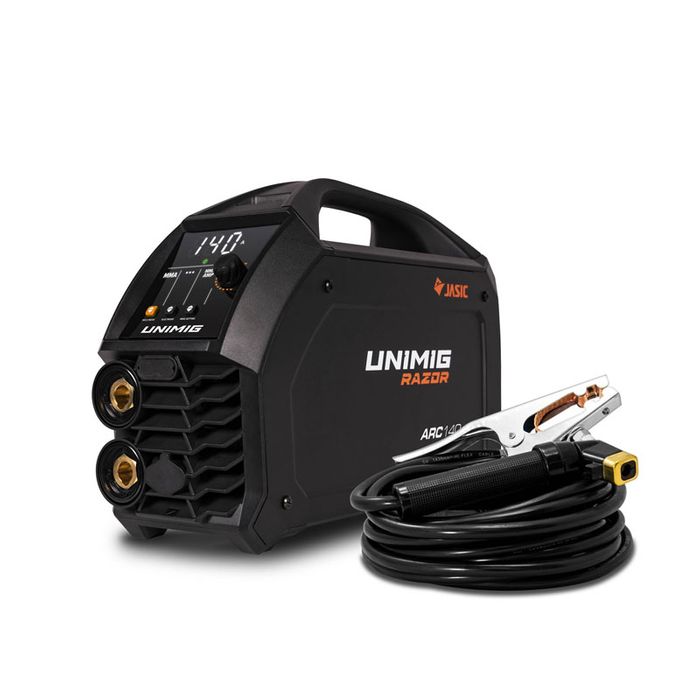

Package includes:

  • RAZOR ARC 140 PFC Welder
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Operating Manual

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE
240V Single Phase

SUPPLY PLUG
10 AMP

Ieff (A)
10.0

RATED OUTPUT
20A/20.8V - 140A/25.6V

NO LOAD VOLTAGE (V)
78

PROTECTION CLASS
IP23S

INSULATION CLASS
H

MINIMUM GENERATOR (kVA)
8.0

DINSE CONNECTOR
35/50

STANDARD
AS/NZ60974-1

SUITABLE MATERIAL
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)
5



TIG SPECIFICATIONS

TIG FUNCTION TYPE
DC Lift Arc

TIG WELDING CURRENT RANGE
10-140A

TIG DUTY CYCLE @ 40°C
20% @ 140A, 60% @ 80.8A, 100% @ 62.6A

TIG WELDING THICKNESS RANGE
1-5mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE
20-140A

STICK DUTY CYCLE @ 40°C
15% @ 140A, 60% @ 70A, 100% @ 54A

STICK ELECTRODE RANGE
2.5-3.2mm

STICK WELDING THICKNESS RANGE
2-8mm

SIZE & WEIGHT

DIMENSIONS (mm)
370 x 125 x 255mm

WEIGHT (kg)
5.5

MACHINE FEATURES

VRD
Yes



Downloads

Description

Includes a 5-year manufacturer's warranty to reflect the confidence in this machine.

Details

  • Brand:
    Unimig
  • Unit/Pack:
    EA
