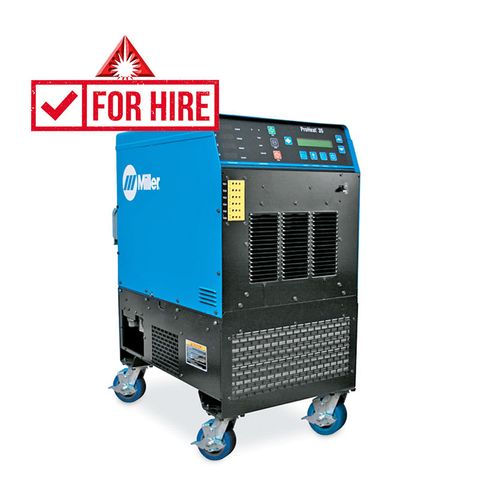

Miller ProHeat 35 with Built-In Temperature Control for Hire

Stock Code:
MR907432-H
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

Miller’s Induction Heating system brings a part to temperature in a fraction of the time, compared to traditional flame and resistance heating processes. It also holds the part at the specified temperature.

With Miller's ProHeat™, preheat time can be reduced by up to 400%. To put this in perspective, companies using the Pro-Heat™ have reduced pre-heating time from over two hours to just 30 minutes.

Features:
• Easy set up - Achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets. Easy to install primary power through panel that does not require removal of sheet metal.
• Time to temperature: Faster than conventional processes due to the method of applying the heat, reducing heating cycle time.
• Multiple outputs - Provides two insulated connectors for aircooled blankets or liquid-cooled cables.
• Low consumable costs - No fuel costs and minimal insulation costs. Insulation is reusable and may be used 50 times or more, reducing cost of disposal and replacement.
• On-board temperature control - Provides for manual or temperature-based programming in a simple to learn operator interface.
• Multiple control thermocouple inputs - Control on the hottest TC during heating and coolest TC during cooling for uniform heating and quality.
• Open output detection - Prevents system operation without a covered output receptacle (cable or protective plug).

Specifications:
Input power: 400 - 460 V, 3 Phase 50/60 Hz CE
Output frequency: 5-30 kHz
Rated output: 35 kW at 100% Duty Cycle
Input amps at rated output: 60 A, 400 V
KVA/KW at rated output: 39/37
Dimensions (mm): 669H x 552W x 933D
Weight: 103kg

Minimum Hire: 7 days (1 week)

Details

  • Brand:
    Alphaweld Welderentals
  • Unit/Pack:
    DAY
  • Pack Qty:
    1
