Translas 8XE 500 MIG Single Person Extraction System

Stock Code:
TR500SP
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

Description

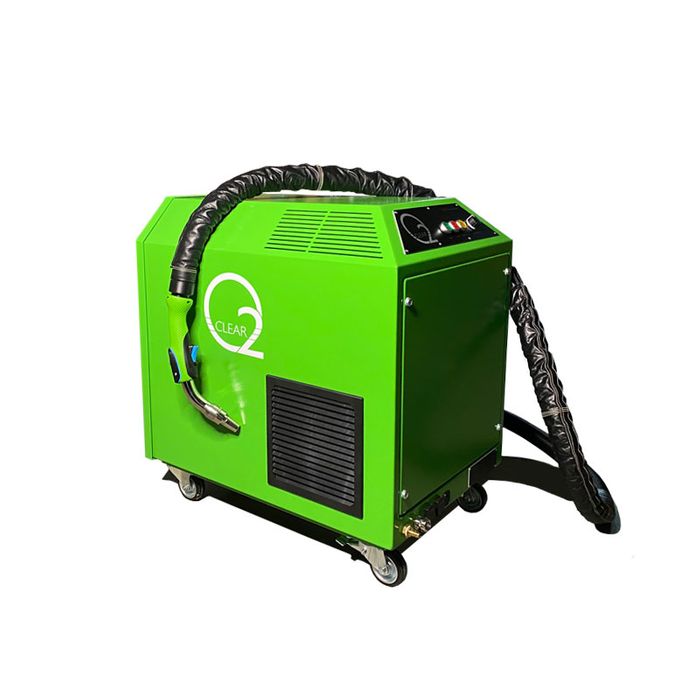

500 Amp air cooled on-gun fume extraction system.

This single person kit includes: 500 Amp 4m torch, W100 Single Phase Clear O2 Extraction Unit, gun end-suction coupler, extraction end suction coupler, 5m extraction hose, pressure reduction valve, 500 air flow meter and 4m sensing cable.

Features & benefits:
• For welding between 250 and 500 amps
• Up to 98% capture rate leaves shielding gas unaffected
• Ergonomic and super lightweight welding gun
• Extraction system self cleans with auto start and stop
• 100% duty cycle with Euro connection

Specifications:
Number of Users: 1
Recommended Amps: Over 400 Amps
Air/Water Cooled: Water Cooled
CO²: 550 Amp
Mixed Gases: 500 Amp
Duty Cycle: 100%
Fume Capture Rate: Up to 98%
Gun Rotation: 360° Swivel
Automatic Start/Stop: Yes
Auto Filter Cleaning: Yes
Dimensions: (L x B x H) 700 x 530 x 560 / 630mm (without / with wheels)
Implementation: Mobile on 4 wheels - 2 rotating with locks
Power Supply: 240V (Single Phase)
Motor Power: Maximum 3.0 KW
Suction Flow (Torch): Target: 33 CFM / Max: 38 CFM
Filter Surface: 5m² Active filter surface, filter efficiency: IFA >99.8%
Working Temperature: 0 to +50°C
Weight: 58kg
Noise Level: Max. dB(A) <65dB(A) (at 100% suction flow)
Certifications: CE (European), W3 (Germany), and CSA (North America)
Compressed Air (Cleaning): 80 PSI (5.5 Bar), Dry/Clean Air, 20 CFM, Standard Size Airline

Details

  • Brand:
    Translas
  • Unit/Pack:
    EA
