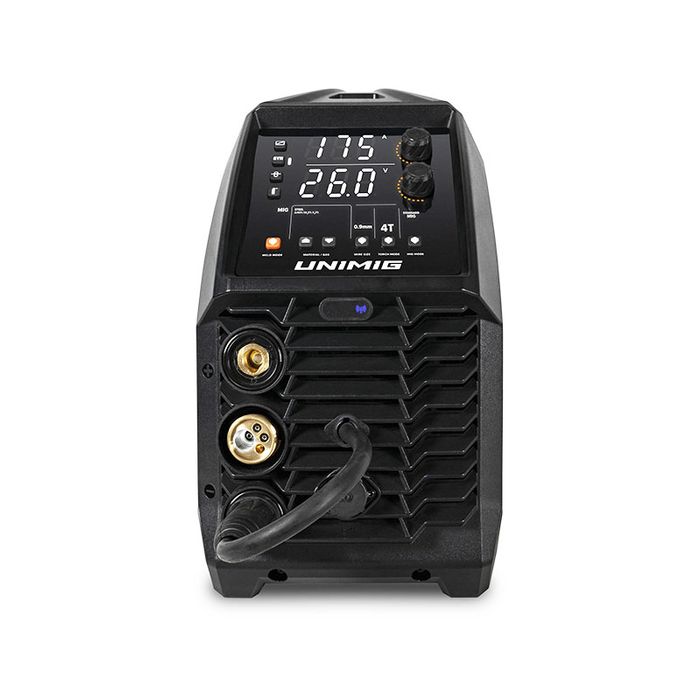

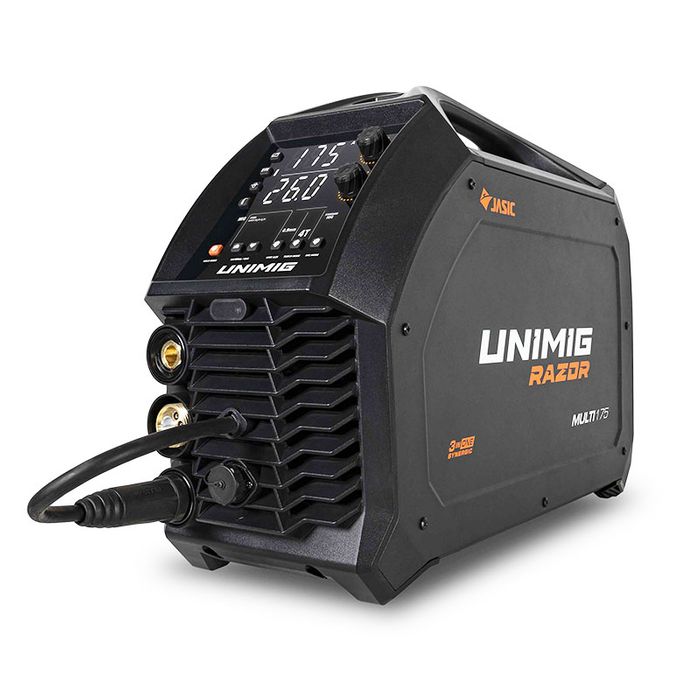

Unimig RAZOR Multi 175 MIG/TIG/STICK Welder

Stock Code:
U11007K
Price:
$1,581.50 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

A powerful, professional machine in a portable case, the Unimig RAZOR Multi 175 is perfect for the workshop or the worksite.

• Quick and easy setup with synergic MIG programs
• 3-in-1 multi-process machine so you can MIG, TIG & STICK
• Geared wire drive system for smooth wire feeding
• Included 5-year warranty

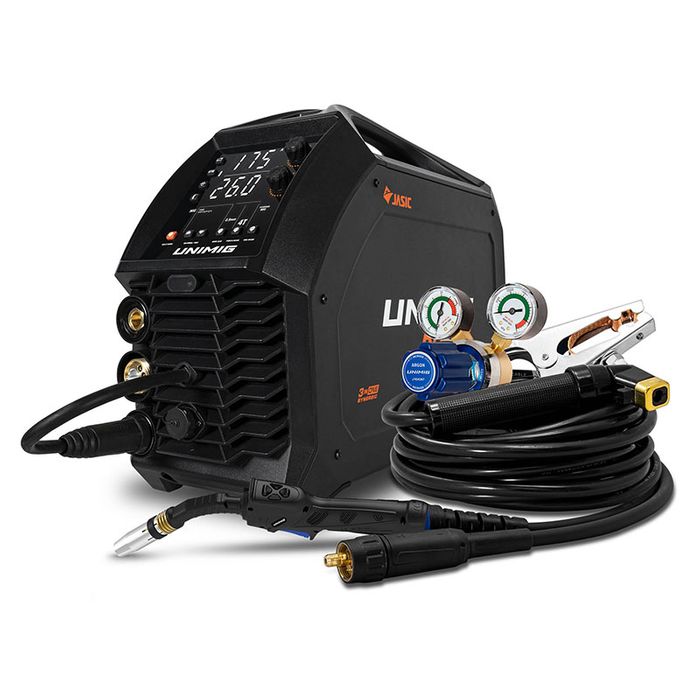

Package includes

• Unimig RAZOR MULTI 175 Welder
• 4m M24 Digital MIG Torch
• 4m Twist Lock Electrode Holder
• 4m 300 Amp Earth Clamp & Lead
• Twin Gauge Argon Regulator
• 1.8m Gas Hose with fittings
• 0.8-0.9mm V Groove Roller
• 0.8-0.9mm F Groove Roller
• 1.0-1.2mm U Groove Roller
• Operating Manual

Key Features

HD Backlit Interface
Experience a new level of convenience with Unimig's next-generation interface panel. With its vibrant and easy-to-read display, you'll be able to effortlessly navigate and customise your welding settings in any lighting condition.

Synergic MIG Control
Say goodbye to complicated and time-consuming setup with innovative Synergic MIG control. This cutting-edge technology automatically adjusts your welding settings based on your wire type, gas, wire size, and material thickness, ensuring precise and efficient results every time.

Digital Control MIG Torch
The ultimate solution for welders seeking unprecedented control and precision in their work. No more hassle of constantly adjusting your settings on a separate control panel. With built-in leading technology, you can easily fine-tune your amps, wire speed, and voltage right on the MIG torch itself.

Spool Gun Ready
You have the option of attaching a Spool Gun to run softer core wires such as aluminium MIG wire. You don’t even need to change the setup of your existing torch or drive roller.

Gas & Gasless MIG
This welding machine supports both gas-shielded and gasless MIG wire, allowing you to tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, Unimig machines have you covered.

Geared Wire Drive
Experience smooth and consistent wire feed with the advanced geared roller drive unit. This feature ensures that your wire is fed consistently and accurately, even when using longer MIG torches.

Multi-Process Welding
Get the job done quickly and efficiently with this versatile three in-one welding machine. With the ability to perform MIG, TIG, and STICK welding all in one unit, you can save valuable time and effort without sacrificing quality.

Foot Control Ready
Enjoy greater control and precision with the optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement.

Trigger Controlled DC Lift Arc TIG
With Trigger Controlled DC Lift Arc ignition, starting your welding projects has never been easier. The built-in Lift Arc TIG technology ensures that your tungsten tip won't stick to the work piece, preventing costly tip breakages.

Smart Fan
Advanced Smart Fan technology reduces noise, saves power, and minimises contaminants, making it the perfect choice for any welding environment.

Advanced MMA Features
The RAZOR MULTI 175 features adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.

Optional Remote Control
Upgrade your machine with a handy remote control. Both a wired and wireless controller are available.

Generator Compatible
Minimum 11 kVA (175), or 12 kVA (220) recommended.

Technical Data

Primary Input Voltage: 240V Single Phase
Supply Plug: 15 AMP
Ieff (A): 15
Rated Output: 30A/15.5V - 175A/22.8V
No Load Voltage (V): 60
Protection Class: IP23S
Insulation Class: H
Minimum Generator (kVA): 11.0
Dinse Connector: 35/50
Standard: AS/NZ60974-1
MIG Weld Material type: Mild Steel, Stainless Steel, Aluminium and Silicon Bronze
TIG Weld Material type: Mild Steel, Stainless Steel, Copper and Silicon Bronze
MMA Weld Material type: Mild Steel, Stainless Steel and Cast Iron
Warranty (Years): 5

MIG Specifications

MIG Welding Current Range: 30-175A
MIG Duty Cycle @ 40°C: 25% @ 175A; 60% @ 101A; 100% @ 78A
MIG Welding Thickness Range: 1-8mm

TIG Specifications

TIG Function Type: DC Lift Arc
TIG Welding Current Range: 5-175A
TIG Duty Cycle @ 40°C: 25% @ 175A; 60% @ 113A; 100% @ 88A
TIG Welding Thickness Range: 1-6mm

STICK Specifications

STICK Welding Current Range: 20-160A
STICK Duty Cycle @ 40°C: 20% @ 160A; 60% @ 93A; 100% @ 72A
STICK Welding Thickness Range: 2-10mm

Size & Weight

Dimensions (mm): 560 x 220 x 40
Weight (kg): 15.0



Downloads

Details

  • Brand:
    Unimig
  • Unit/Pack:
    EA
