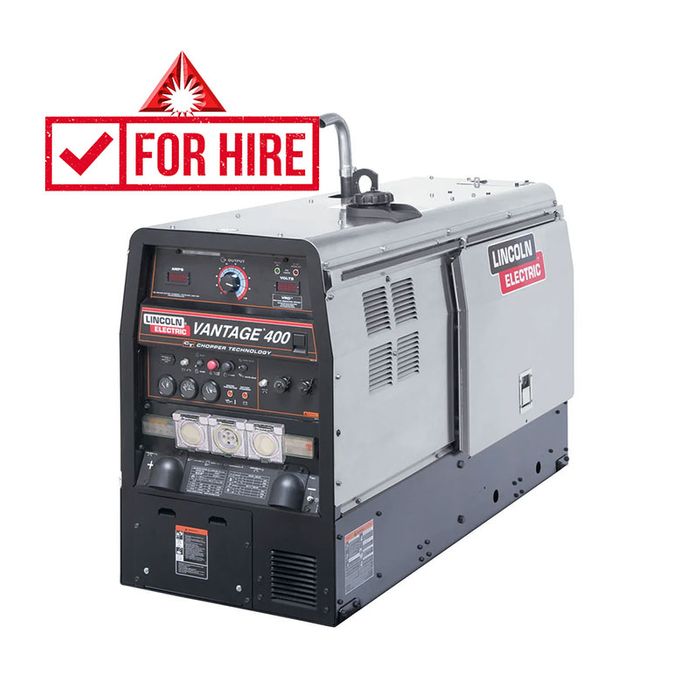

Lincoln Vantage 400 Diesel Welder for Hire

Stock Code:
K32038-1-H
Contact Us For Price
Stock Level:
Please contact us for stock availability

Description

The Lincoln Vantage 400 is one of the most compact 400 amp engine driven welder generators available on the market. It has a four-cylinder Perkins diesel engine that can perform across a wide range of processes including stick (conventional and pipe modes), MIG including FCAW, TIG welding and gouging. This model efficiently generates 13kVA or auxiliary power for your lights or power tools in 240V & 415V.

This model is Mine Spec approved.

Features:
• Arc control adjusts to produce a soft arc or more forceful arc to suit your application
• Arc performance 350 amps @100% duty cycle with an output range of up to 400 amps using Chopper Technology
• Hot start for easier starts and restrikes which minimises the electrode sticking¬Ě to the work
• Excellent CV wire welding with cored-wire and MIG (CO2 and blended gas). Up to 2.4mm E70T-6 up to 260 IPM, 27V
• Standard fuel, oil, temp. gauges and meters
• 96dDA noise level performance
• Factory fitted VRD
• 13.2kVA of auxiliary power with 240V, 15A IP66 rated outlets

Specifications:
Duty Cycle: 400A @ 60% / 350A @ 100%
Output range - 30-400A
Engine Type - Perkins 404C-22 liquidcooled 4 cylinder diesel
HP @ RPM - 28Hp@1500rpm
Dimensions (mm) 913H x 642W x 1524D
Net weight (kg): 560

Minimum Hire: 7 days (1 week)

Details

  • Brand:
    Alphaweld Welderentals
  • Unit/Pack:
    DAY
  • Pack Qty:
    1
