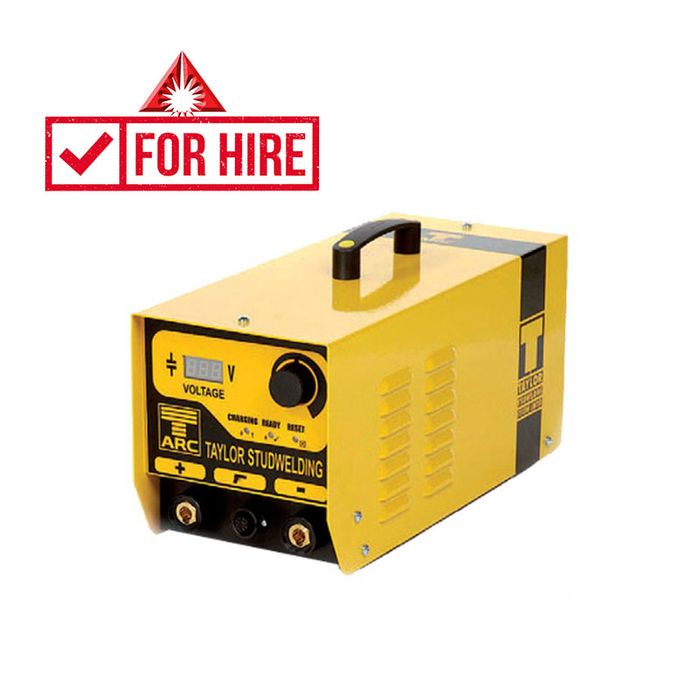

Taylor CDM10 Stud Welder for Hire

Stock Code:
Contact Us For Price
Stock Level:
Please contact us for stock availability


The Taylor CDM10 is a CD (Capacitor Discharge) Stud Welding System for 2-10mm CD Studs.

The Taylor CDM range are compact and ultra-portable Capacitor Discharge (CD) stud/pin welders designed to weld up to 10mm diameter studs. With their simple yet robust construction the CDM range offers an economical and reliable method of fixing Mild Steel, Stainless Steel, Aluminium and Brass studs.

Fast and accurate, the CDM range gives you excellent weld results. Designed and built to meet/exceed all required standards and is CE marked.

Welding Range: Mild Steel: 2-10mm, Stainless Steel: 2-10mm, Aluminium: 2-6mm, Zintec: 2-8mm
Mains Input: 115 and 230V AC, 50 -60Hz, 1Ph
Input Power: 1.8KVA
Input Fuse Rating: 16A at 115V, 19A at 230V
Output Voltage: 35 - 200V
Output Power: Source Electrolytic Capacitors
Welding Rate: 10 - 50 Studs per min
Welding Stud Range: 2 - 10mm
Nominal Capacitance: 132,000mf
Dimensions (mm): 425L x 172W x 280H
Weight (kg): 18.5

Minimum Hire: 7 Days (1 Week)
