TAG PREP 02 Electric Bevelling Machine

Stock Code:
TP2E220
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Description

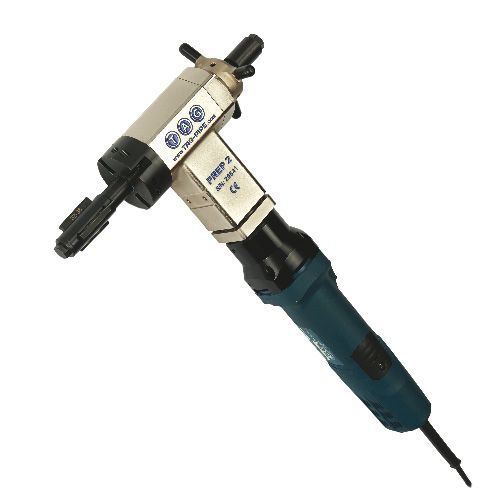

TAG PREP 2 is small, portable, powerful electric bevelling machine. A four jaw tool holder (chuck) allows use of up to 4 form tools to enable weld preparation of thin wall tube, or heavy wall pipe. Simultaneous external and internal bevelling and facing of tubes is simple, ideal for accurate repetitive work.

Machine supplied with locking jaws, service tools, instruction manual and warranty certificate all in a protective metal case.

Specifications -
Locking Tube Range (ID/mm): 23-42
Recommended Working Range (inches): ½- 1½
Idle Speed (rpm): 5-250
Torque (kgm/nm): 4.0/39+
Length of Axial Feed (mm): 24
Max Operating Temp (C°): 55
Max Decibel (dBA): 75
Motor (W): 720
Input Power (V): 240
Packed Dimensions (mm): 560W x 410D x 120H
Unit Weight (kg): 5.5
Packed Weight (kg): 14.5

Details

  • Brand:
    TAG
  • Unit/Pack:
    EA
  • Pack Qty:
    1
