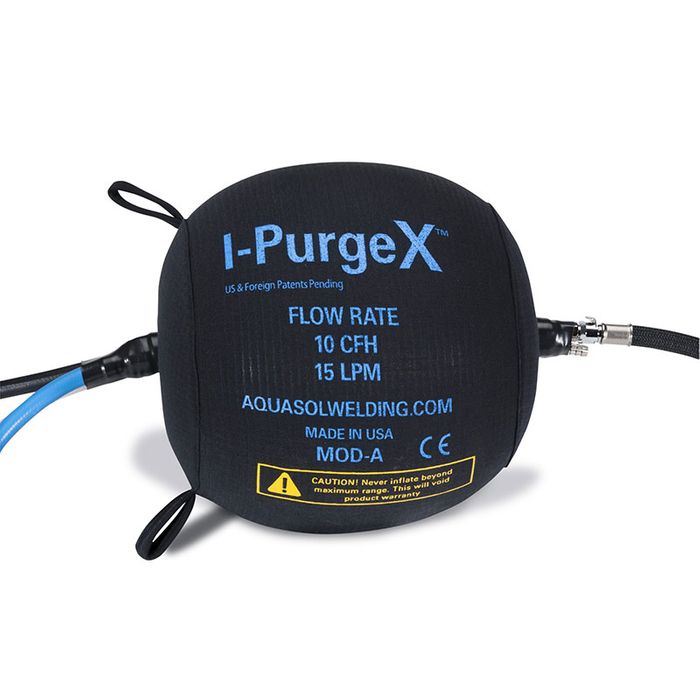

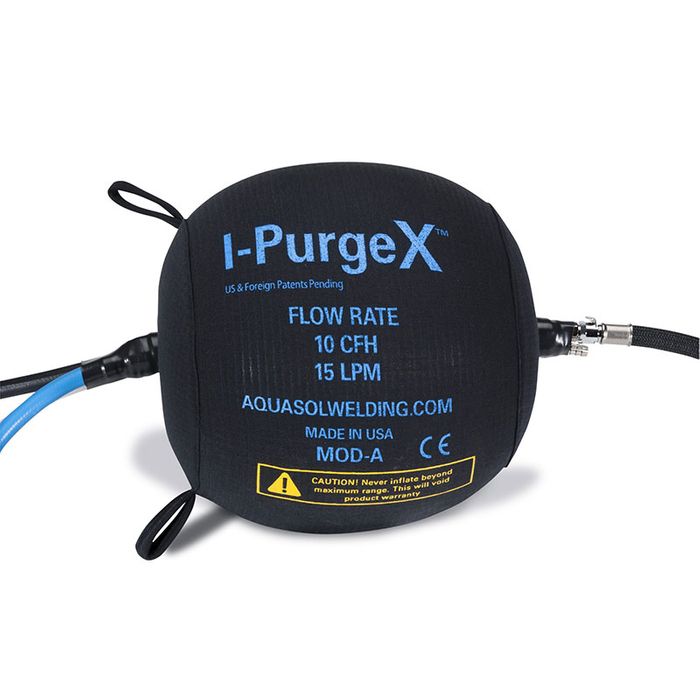

I-PurgeX Expandable Double Purge Bag System with High Heat Harness
Brands We Sell

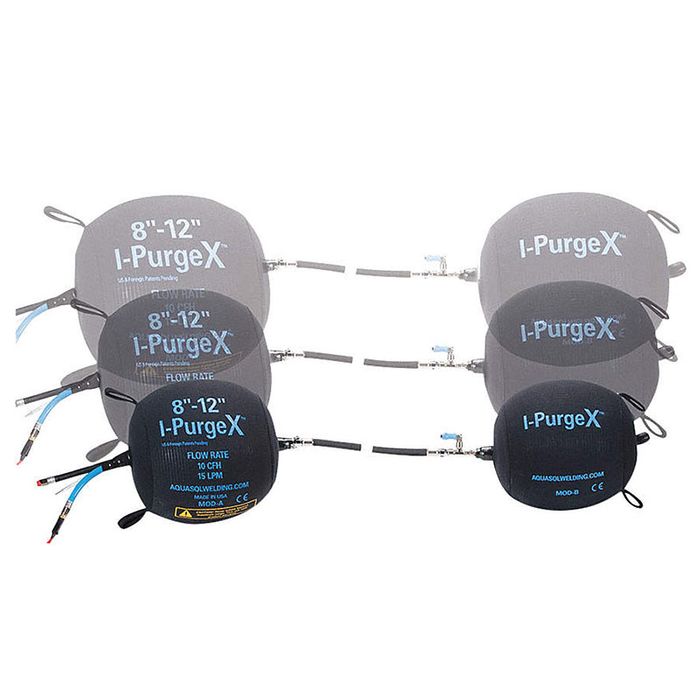

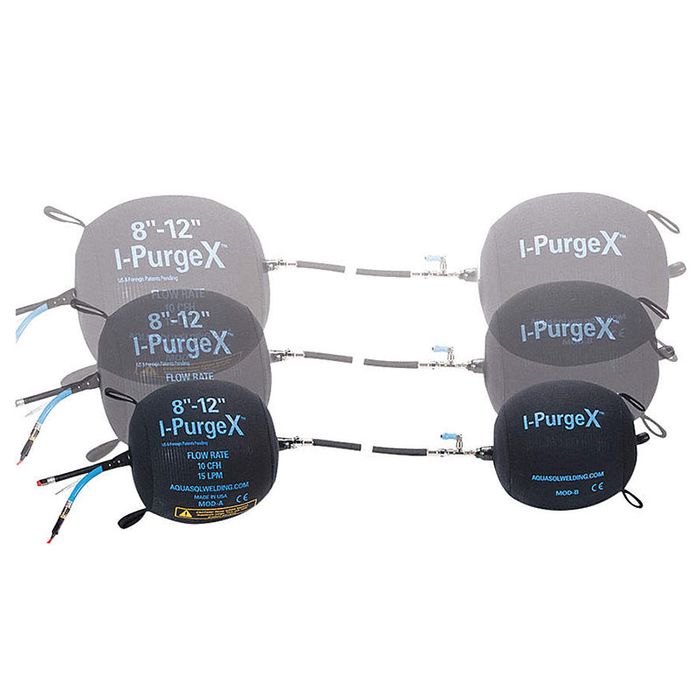

The I-Purge X is the most adaptable and technologically advanced modular inflatable bladder system available to date. The I-Purge X comes equipped with its revolutionary Bladder Expansion Technology (BET) that enables one unit to fit multiple pipe sizes. Bladders have the ability to expand and contract to fit each piping specification and are protected by a spark resistant exterior cover that does not combust when exposed to flames and sparks.
These state-of-the-art features allow the operator to create multiple configurations, including a one-sided pipe stopper and reducer. Bladders are available in sizes ranging from 2″- 3″ (51 mm – 76 mm) to 60″- 70″ (1524 mm – 1778 mm) and may be purchased either individually or as a complete system, a distinct advantage should additional sizes be desired or a component need replacing.
Coupled with an extended length, high heat resistant harness; the I-Purge X is the most versatile pipe purging solution available and is ideal for fabrication shops and any environment with pipe accessibility. Manufactured in the USA from the highest quality materials, the I-Purge X is a reusable, long-term solution that is expandable, extendable, and simply extraordinary.
| Image | Part Number | Description | Details | Price | Quantity |
|---|---|---|---|---|---|
 |
XABLD2-3
|
I-PurgeX Expandable Double Purge Bag System 2-3"
Diameter Range: 51-76mm (2"-3") | Harness Length: 279mm (11")
Stock Code:
XABLD2-3
Details
Downloads |
Details
|
$1,254.50 excl GST
|
|
 |
XABLD4-6
|
I-PurgeX Expandable Double Purge Bag System 4-6"
Diameter Range: 102-152mm (4"-6") | Harness Length: 279mm (11")
Stock Code:
XABLD4-6
Details
Downloads |
Details
|
$1,633.50 excl GST
|
|
 |
XABLD8-12
|
I-PurgeX Expandable Double Purge Bag System 8-12"
Diameter Range: 203-305mm (8"-12") | Harness Length: 279mm (11")
Stock Code:
XABLD8-12
Details
Downloads |
Details
|
$1,852.00 excl GST
|
|
 |
XABLD14-18
|
I-PurgeX Expandable Double Purge Bag System 14-18"
Diameter Range: 356-457mm (14"-18") | Harness Length: 406mm (16")
Stock Code:
XABLD14-18
Details
Downloads |
Details
|
$2,291.50 excl GST
|
|
 |
XABLD20-26
|
I-PurgeX Expandable Double Purge Bag System 20-26"
Diameter Range: 509-660mm (20"-26") | Harness Length: 457mm (18")
Stock Code:
XABLD20-26
Details
Downloads |
Details
|
$2,710.00 excl GST
|
|
 |
XABLD28-36
|
I-PurgeX Expandable Double Purge Bag System 28-36"
Diameter Range: 711-914mm (28"-36") | Harness Length: 509mm (20")
Stock Code:
XABLD28-36
Details
Downloads |
Details
|
$3,790.00 excl GST
|
|
 |
XABLD38-48
|
I-PurgeX Expandable Double Purge Bag System 38-48"
Diameter Range: 965-1219mm (38"-48") | Harness Length: 914mm (36")
Stock Code:
XABLD38-48
Details
Downloads |
Details
|
$5,450.00 excl GST
|
|
