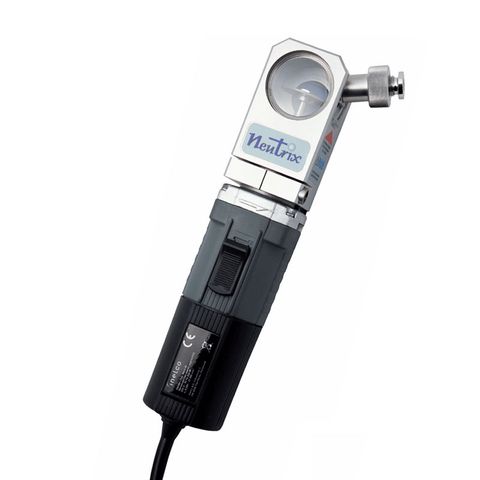

Neutrix Portable Tungsten Grinder
Portable grinding machine for Tungsten electrodes
Neutrix is a handheld and portable grinding machine that fulfills the requirements for safe and environmentally friendly grinding of Tungsten electrodes in high quality for TIG and plasma welding. Grinding in the longitudinal direction of the electrode, variable grinding angle, three grinding positions on the diamond disc and the electrode holder ensure efficient grinding.
Simple operation
Insert the electrode in the electrode holder and lock it in the stick-out. Set the variable degree scale at the desired angle. Place the electrode holder in the grinder. Start the grinder and rotate the holder until it reaches the stop and the grinding is finished.
Short electrodes
Neutrix can grind electrodes down to lengths of 19 mm and even 15 mm with a special clamp, for example for orbital welding. The inspection cover on the grinder makes it easy to follow the grinding process and to ensure that the electrode is not generating sparks during grinding. This avoids the electrode being damaged by high temperatures.
Mobile and safe
The storage case and low weight make Neutrix ideal where there is a need to take the grinder with you. At the same time, the Neutrix, is equipped with an integrated dust filter that protects against the harmful grinding dust and collects the dust for safe disposal.
Key features:
• Sealed grinding chamber with dust collector to protect the user
• Variable angle setting gives more flexibility
• Inspection cover so you can follow the grinding process
• The electrode holder ensures centring of the tip and reduces wastage
• The 3 positions of the diamond disc give optimal utilisation
• Powerful motor with speed adjustment
Standard unit includes:
• Complete grinder with diamond disc, filter and storage case
• Electrode holder
• Electrode clamps for Ø1.6, 2.4 and 3.2 mm electrodes (clamps are available for other electrode sizes)
Downloads
Description
Specifications:
Electrode size: Ø0.8 – 4mm
Min. length: 19mm standard (15mm with special electrode clamps)
Angles: 15° – 180° tip angle
Motor: 110V-50/60 Hz, 240V-50/60Hz
Motor effect: 850W
Weight: 2.8 kg
Speed: 8,000 – 22,000 rpm
Grinding speed: 28 – 50 m/sec
Details
-
Brand:Inelco Grinders
-
Unit/Pack:EA
-
Power Supply:240V
