Ultima TIG-S Bench Top Tungsten Grinder

Stock Code:
88897422
Price:
$5,030.00 excl GST
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

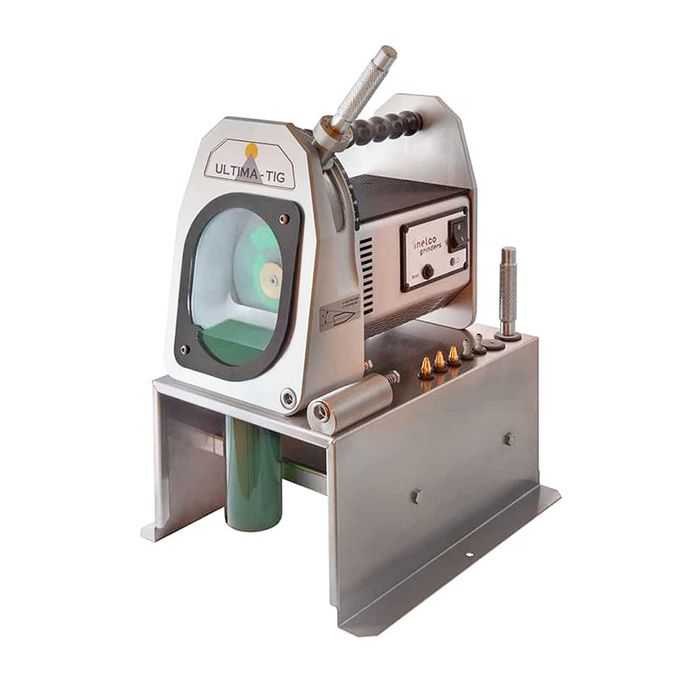

Ultima-TIG-S is the environmentally friendly wet grinder of Tungsten electrodes for TIG welding and is constructed with a unique disposable container that automatically collects the toxic dust particles and ensures safe disposal.

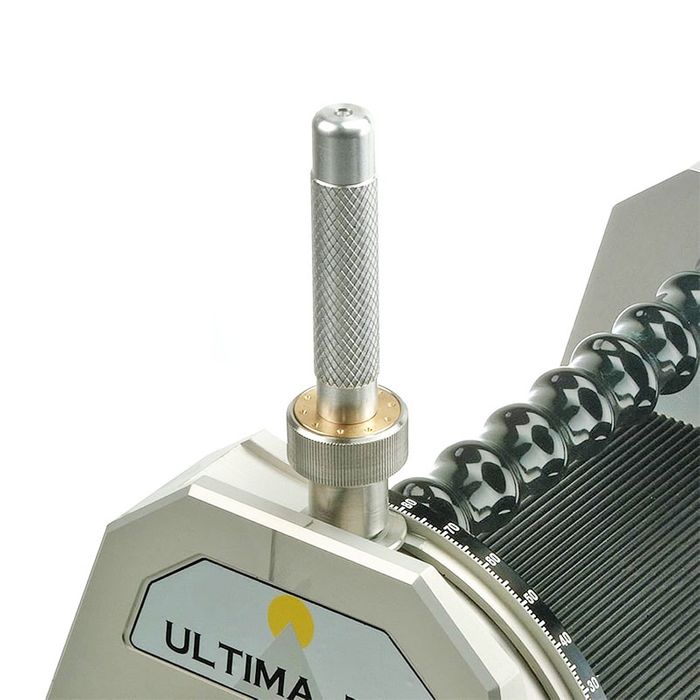

It's unique construction reduces the waste of expensive Tungsten electrodes and reduces the time spent on grinding, resulting in a short payback time. The variable angle adjustment and unique clamping system centres the electrode, so that the grinding is carried out in the correct longitudinal direction of the electrode.

Key features:

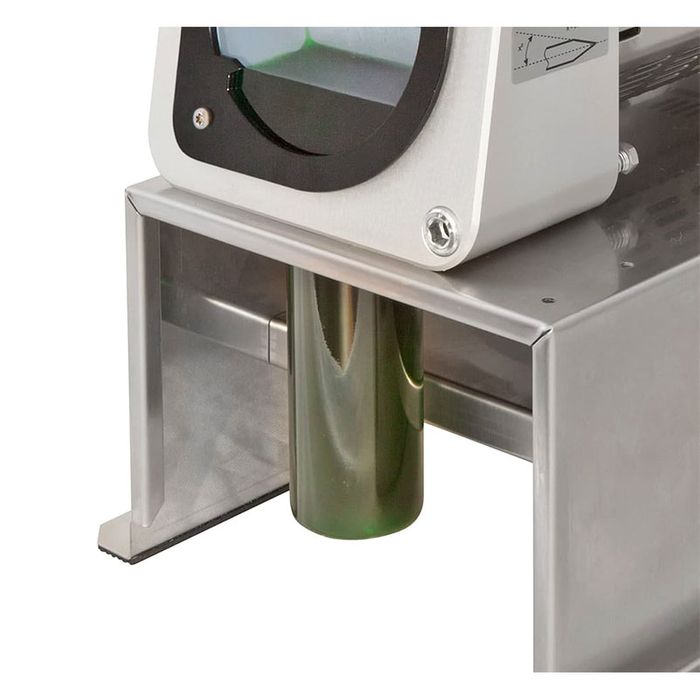

• Sealed grinding chamber with dust collector to protect the user

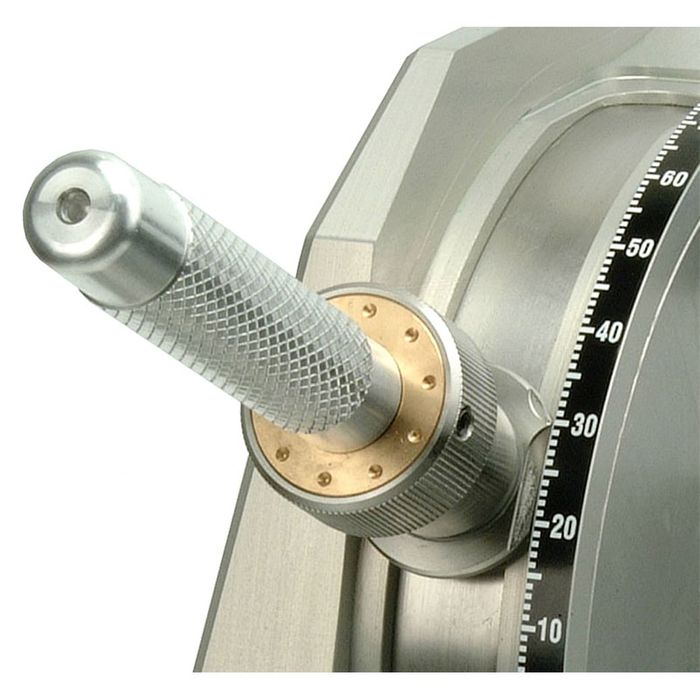

• Variable angle setting gives more flexibility
• Wet grinding prevents overheating of the electrode during grinding
• High grinding speed provides faster grinding and a smooth surface
• The electrode holder ensures centring of the tip and reduces wastage
• Less electrode wastage results in a short payback time

Specifications:
Input Power: 240V/1Ph/50Hz
Motor: 280W
RPM: 6000
Grind Speed: 31m/sec
Electrode Capacity: 0.8-8.0mm
Min length: 15mm (8 mm with special clamps)
Grinding Angles: 7.5°-90° (equiv. 15°-180° tip angle)

Details

  • Brand:
    Inelco Grinders
  • Unit/Pack:
    EA
  • Pack Qty:
    1
  • Power Supply:
    240V
