Ultima TIG Bench Top Tungsten Grinder

Stock Code:
88897022
Price:
$4,640.00 excl GST
Stock Level:
Currently in Stock
Get a Fast Quote
Add to Favourites

Looking for Ultima TIG Spare Parts? View available spare parts here.

Downloads

Description

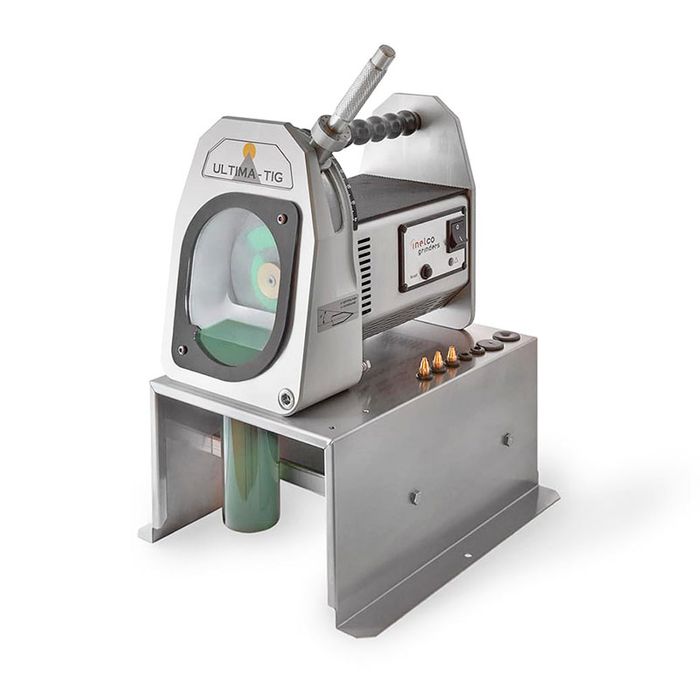

The patented Ultima TIG Tungsten Grinder provides ground tungsten electrodes for TIG-welding in a safe and environmentally friendly way moreover, it reduces the waste of electrodes substantially.

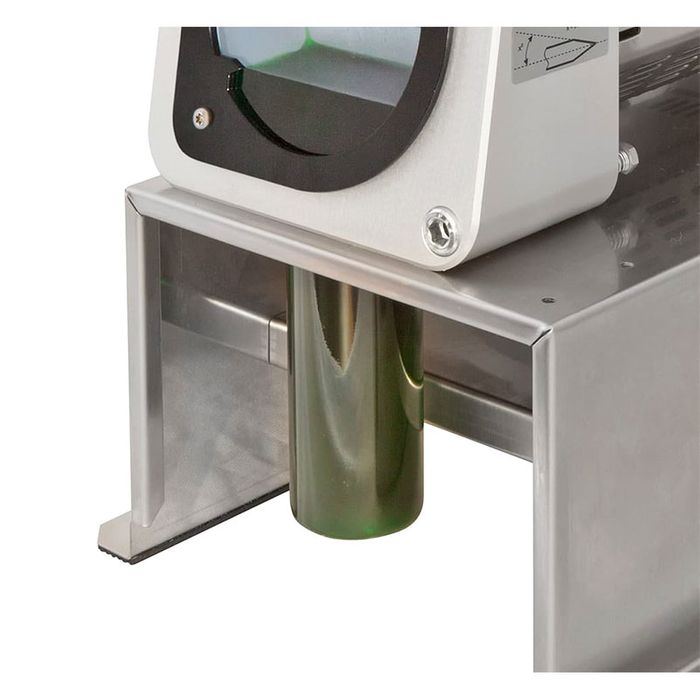

The combination of liquid for cooling and high grinding speed of the diamond disc results in a polished and even surface of the tungsten electrode. A unique disposable container collects all toxic dust particles eliminating the need for separate exhaust systems.

Key features:
• Sealed grinding chamber with dust collector to protect the user

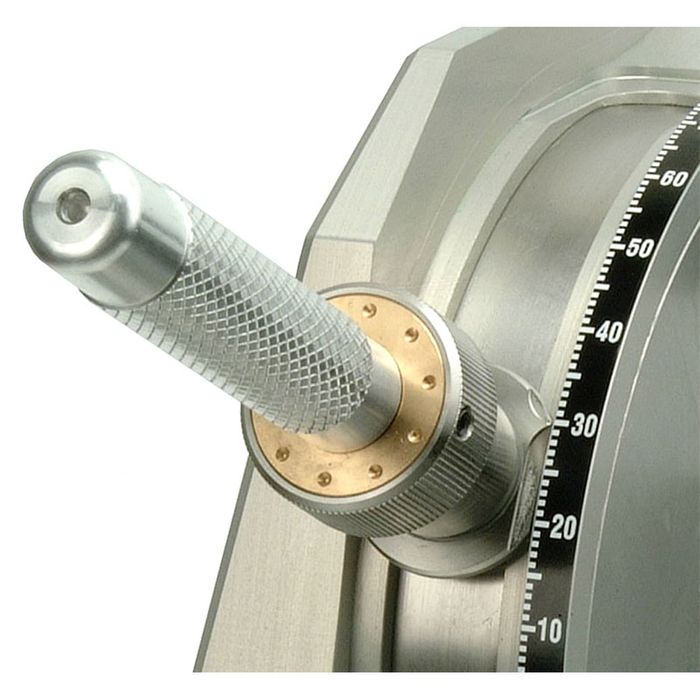

• Variable angle setting gives more flexibility
• Wet grinding prevents overheating of the electrode during grinding
• High grinding speed provides faster grinding and a smooth surface

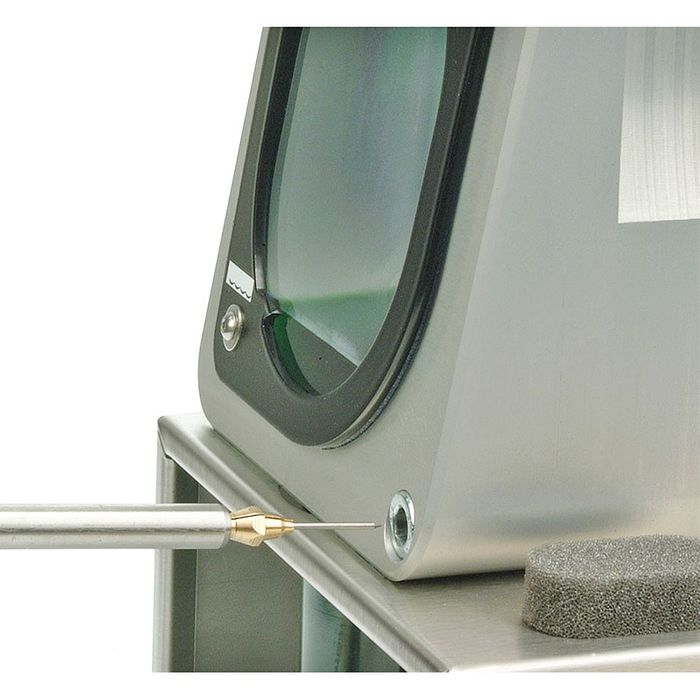

• The electrode holder ensures centering of the tip and reduces wastage
• Less electrode wastage results in a short payback time

Specifications:
Input Power: 240V/1Ph/50Hz
Motor: 280W
RPM: 6000
Grind Speed: 31m/sec
Electrode Capacity: 0.8-4.0mm
Min length: 15mm (8 mm with special clamps)
Grinding Angles: 7.5°-90° (equiv. 15°-180° tip angle)

Details

  • Brand:
    Inelco Grinders
  • Unit/Pack:
    EA
  • Power Supply:
    240V
