Taylor i22 Drawn Arc Stud Welder

Stock Code:
I22
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

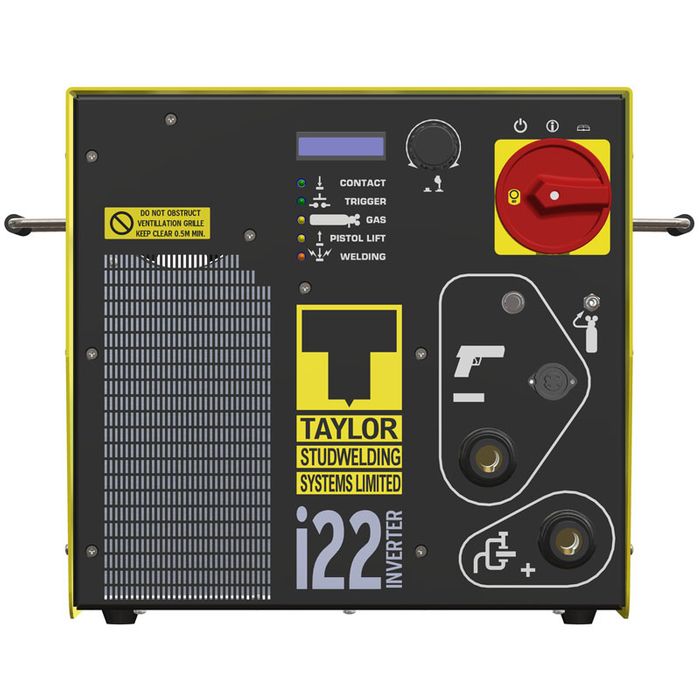

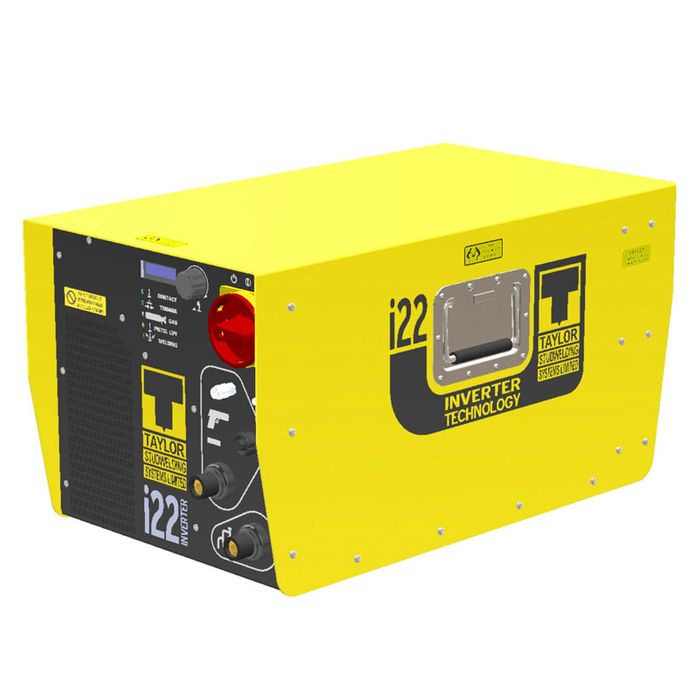

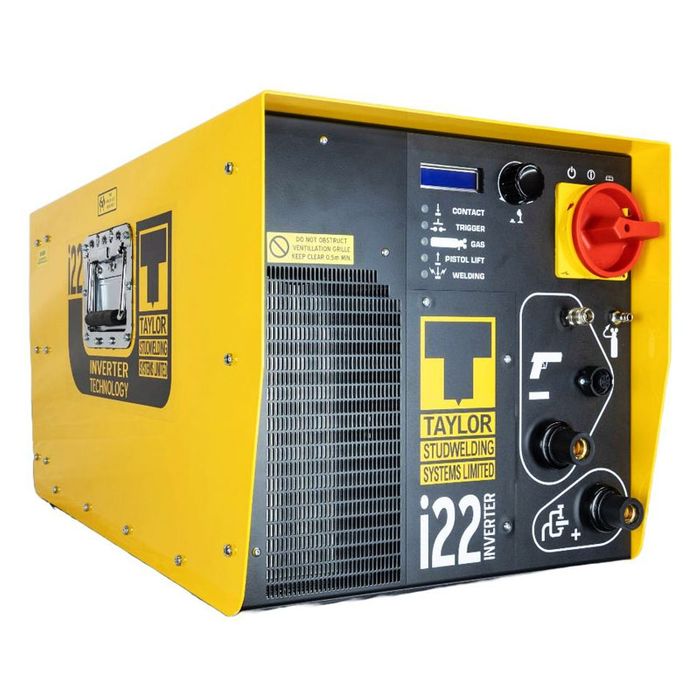

The Taylor i22 Drawn Arc Stud Welder is the latest addition to the Taylor Studwelding range of British-built drawn arc equipment, specifically developed for heavy-duty applications such as shipbuilding, construction, and infrastructure projects. Designed to weld up to 22mm diameter studs, the DA i22 brings powerful performance in a compact, robust package.

Built to handle challenging environments, the i22 delivers a highly reliable, economic solution for welding Mild Steel and Stainless Steel studs. Its simple, user-friendly interface and durable construction make it ideal for demanding industrial use, while offering fast, accurate results that improve productivity and reduce downtime.

This three-phase 400V inverter system features stepless adjustment of welding current and time, ensuring precise control over every weld. The i22 is microcomputer-controlled with constant current regulation, providing stable performance in both standard and Short Cycle (SC) welding modes.
​
Lightweight and compact for its class, the i22 is housed in a single, transportable cabinet with integrated fan cooling and IP23 protection, ensuring long-term durability even in harsh conditions. It’s CE and UKCA marked, meeting all required quality and safety standards.

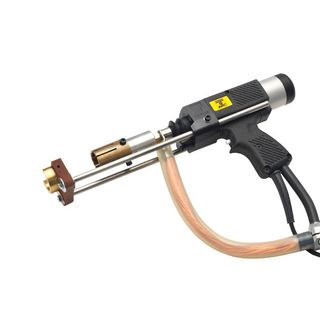

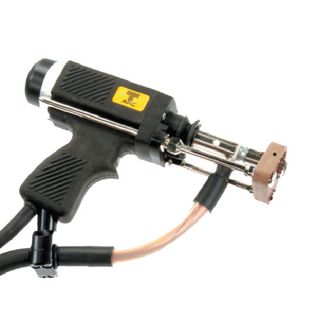

Compatible hand tools for use with the DA i22 machine are available; specifically the DA5 and DA6 hand tools.

Features:
• Robust and compact design housing all components in one unit
• Welds up to 22mm studs
• Lightweight and portable
• Stepless adjustment of welding current and time
• Microcomputer controlled
• Constant current regulation
• Adjustable arc time and current
• i22 uses the latest inverter technology
• Solid state switching
• Visual multi-functional display in 12 languages
• Self-diagnosis overheating, short circuit control, pilot arc malfunction
• Gun lift test facility
• Chuck saver circuit fitted
• Fitted with gas facility
• Welds in both standard and short cycle (SC) mode
• Stud counter

Specifications:
Welding Stud Range: 3-22mm
Input: 3Ph. 400V 50/60Hz (other voltage options available)
Fusing: 100A
Max. KVA Rating: 85kVA (Idling 50W)
Welding Current (10% cycle): 100 – 2200A
Welding Time (m/sec): 10 – 1000
Welding Rate: 3 – 30/min
Class Protection: IP23
Cooling: Fan
Dimensions (L x W x H) (mm): 760 x 440 x 415
Weight: 47kg
