Taylor i16 Drawn Arc Stud Welder

Stock Code:
I16
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites


Downloads

Description

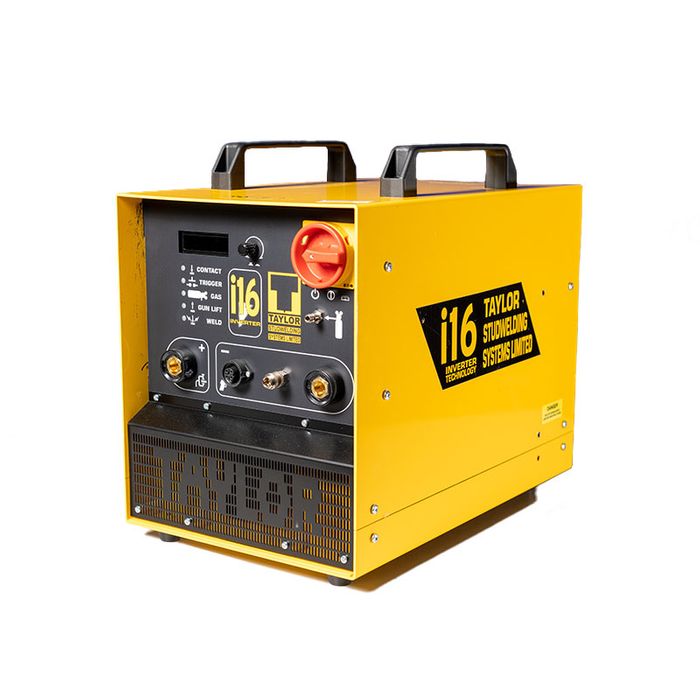

The Taylor i16 DA Stud Welder is a compact and easily portable Drawn Arc inverter system designed to weld up to 16mm reduced base studs. This microcomputer-controlled machine is lightweight, compact, and easy to manoeuvre and position to where you require it.

The i16 has been designed to offer fast and accurate welds, all while being easy to operate, so you can achieve better welding results consistently.

Features:
• Robust and compact design housing all components in one cabinet
• Lightweight and portable
• Stepless adjustment of welding current and time
• Microcomputer controlled
• Constant current regulation
• i16 uses the latest inverter technology
• Solid-state switching
• Visual multi-functional display (12 languages)
• Self-diagnosis overheating, short circuit control, pilot arc malfunction
• Gun lift test facility
• Chuck saver circuit fitted
• Fitted with a gas facility
• Welds in both standard and Short Cycle mode
• Stud counter

Specifications:
Welding Stud Range: 3-14.6mm RB (M16 PD)
Input: 3ph. 400v 50Hz/60Hz
Fusing: 32A
Max. KVA Rating: 35KVA (IDLING – 50W)
Welding Current (10% cycle): 100 – 1400 A
Welding Time (m/sec): 10 – 1000
Welding Rate: 3 – 30/min
Class Protection: IP23
Cooling: Fan
Dimensions (L x W x H) (mm): 510 x 325 x 450 (including handles)
Weight: 34kg

Details

  • Brand:
    Taylor
  • Unit/Pack:
    EA
