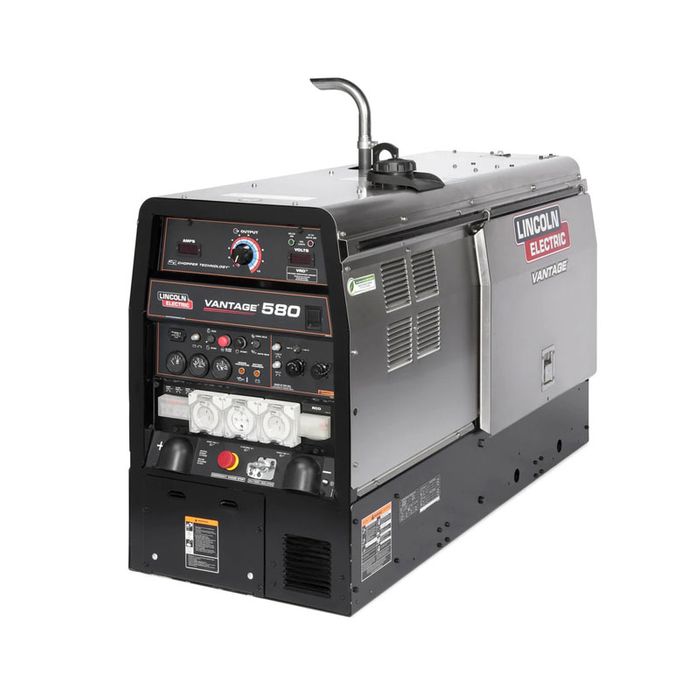

Lincoln Vantage 580 Diesel Welder

Stock Code:
K2963-1
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites

Downloads

Description

If you are looking for a rugged, reliable and capable welder for a demanding mining or construction site, a dependable hire fleet or for a quick turnaround repair job, the Lincoln Vantage 580 has all the power you need and the safety features modern standards demand. New standard features include a battery isolator switch for safer maintenance procedures and a engine stop button to quickly shut the Vantage 580 down in the event of an emergency.

Simple controls and Chopper Technology deliver the low maintenance, long service life, easy operation and great arc performance every owner demands in these environments. This multi-process powerhouse features 500 amps at 100%, or 525 amps at 60% duty cycle, tested at temperatures up to 40°C. Plenty of AC 240V & 415V auxiliary power – this unit delivers 20,000 watts.

You can depend on legendary engine reliability from Perkins and superior Lincoln arc performance. Suitable for Stick, TIG, MIG, Flux-cored and Gouging processes.

Features:
• Mine Site approved
• Simple to operate with five process modes
• CC-Stick mode optimised for general purpose and E7018 low hydrogen electrodes
• Arc control adjusts to produce a soft arc or more forceful arc to suit you
• Touch-Start DC TIG welding for easy arc starting avoiding tungsten contamination and high frequency
• Digital volt/amp meter with built-in pre-set function makes it easy to precisely set your procedures
• Arc gouging up to 13mm carbons
• New carbon arc gouging waveform delivers improved performance
• Standard fuel, oil pressure, temperature gauges and hour meter with digital Volt/Amp meters
• Factory fitted VRD
• 20kVA auxiliary power to power up to 3 inverter power sources - up to four stick electrode welding arcs for higher productivity
• 240V and 415V IP66 rated outlets

Specifications:
• Duty cycle: 525A @ 60% / 500A @ 100%
• Output range (Amps): 30-580
• Engine type - Perkins 404D-22T, 4 cylinder turbo, liquid cooled HP @ RPM - 43 @ 1850
• Dimensions (mm) 913H x 642W x 1524D
• Weight (kg): 586

Details

  • Brand:
    Lincoln Electric
  • Unit/Pack:
    EA
