Lincoln Frontier 580X Diesel Welder

Stock Code:
K5293-1
Contact Us For Price
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

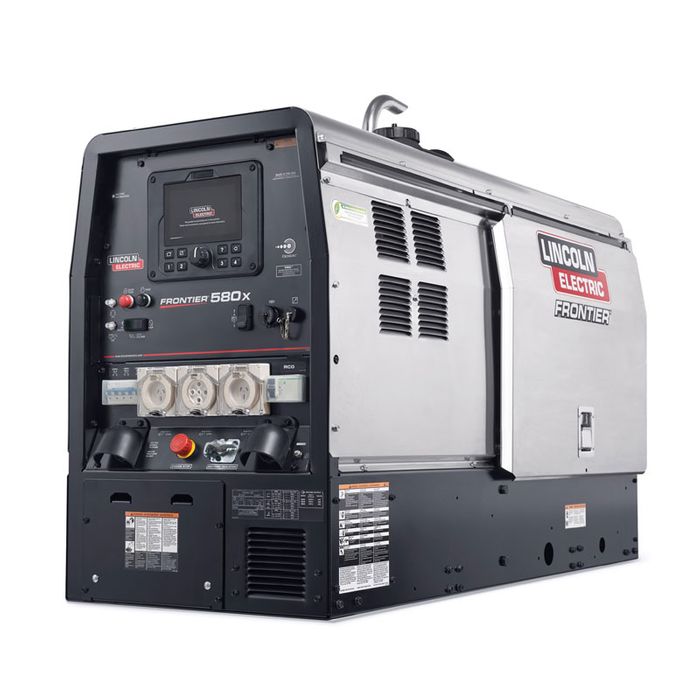

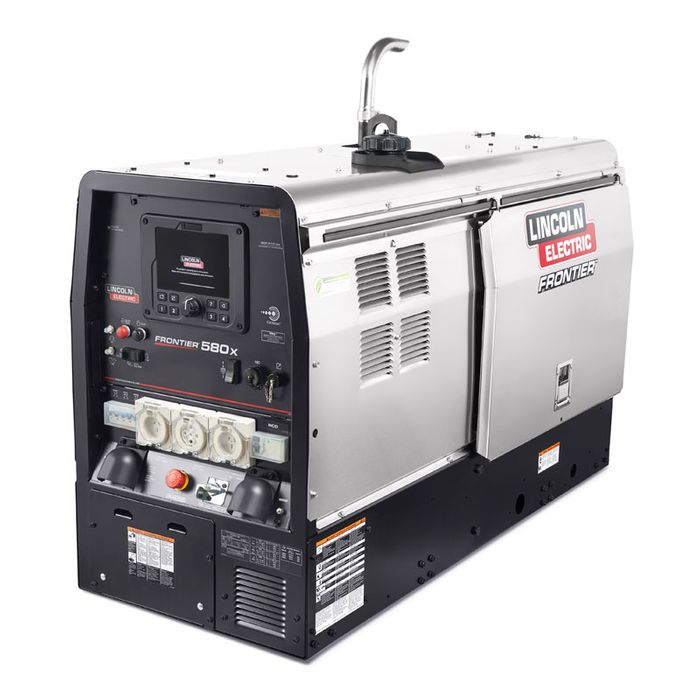

Driven from legacy, engineered for the future - the Lincoln Electric Frontier 580X diesel engine driven welder/generator breaks the boundaries of welding innovation.

Designed, engineered, and tested to create the new benchmark of engine driven welder performance, this next-generation system delivers the ultimate machine for performance and versatility. So whether you’re on a local construction site, or outback in the Never-Never, the Frontier 580X is the go-to choice for handling whatever job is thrown your way.

Key Features

PIONEERS IN INNOVATION

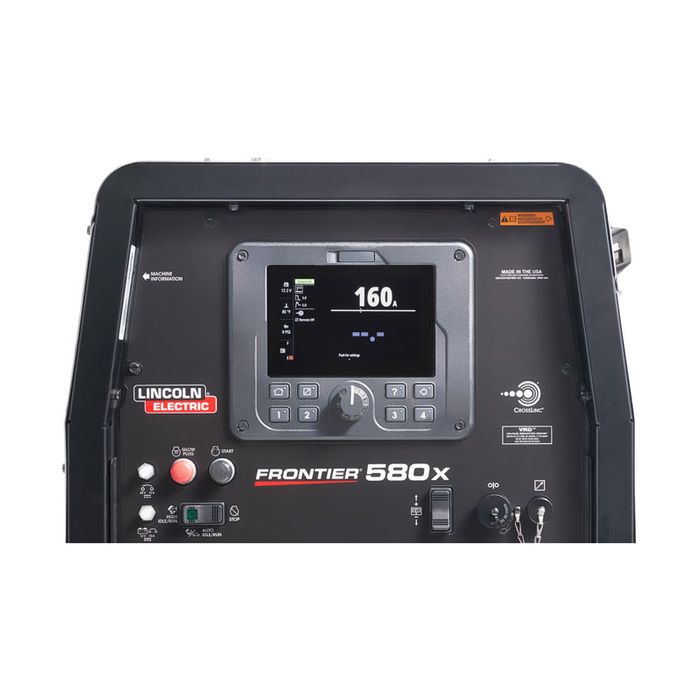

With its industry-leading, next-gen display and additional operator focused features — such as CrossLinc® Technology, Memory Settings, and Auto-Stop/Start — the Frontier 580X delivers the next frontier of engine drive innovation.

NEW BENCHMARK OF PERFORMANCE
From our iconic Chopper Technology® and smooth DC arc, to our advanced multi-process functionally and embedded Pulsed TIG, the Frontier 580X is packed with optimized arc performance specifically tailored to your application — setting the new benchmark for engine driven welders.

FIELD PROVEN, LEGACY DRIVEN
Designed around the 404D-22T Perkins® diesel engine, the Frontier 580X delivers up to 580A of welding and 20 kW of auxiliary output for plenty of all-day power, providing true peace-of- mind and field-proven reliability you can count on.

Machine Specifications

PRODUCT NUMBER
Frontier 580X: K5293-1

PROCESSES
SMAW (Stick), FCAW (Flux-Cored), GMAW (MIG), GTAW (TIG), CAC-A (Arc Gouging), DC TIG (GTAW) Lift, Scratch and Pulse, PIPE (SMAW) and ACTIV8X Pipe**

**Hidden mode which is automatically enabled when connected to selected device

APPLICATIONS
Maintenance and Repair, Pipeline, Power Generation, Process Industries and Structural

RATED OUTPUT @40°C
IEC Rating: 500A / 40V / 100% 525A / 36V / 60%
Max Rating: 580A / 35V / 40%
Desert Rating: @ 55°C 400A / 36V / 100%

OUTPUT RANGE
Stick / Pipe: 30-580 Amps
DC TIG: 5-580 Amps
MIG / FCAW: 10-45 Volts
Arc Gouging: 60-580 Amps

OPEN CIRCUIT VOLTAGE
71 Peak OCV >30 Peak OCV with VRD Active

AC GENERATOR AUXILIARY POWER¹
Single Phase: 7.2 kW Continuous, 11.5 kW Peak, 240V @ 60 Hz
Three Phase: 20 kW Continuous, 25 kW Peak 240V @ 60 Hz

AUXILIARY RECEPTACLES²
Clipsal IP66 (240V / 15A / 1~) (Auto Switch) Clipsal IP66 (415V / 32A / 3~)

DIMENSIONS H x W x L (mm)³
Machine Only: 913 x 643³ x 1,524
To Top of Exhaust Pipe: 1,113

WEIGHT (KG)
586⁵

Engine Specifications

ENGINE MODEL
Perkins 404D-22-T⁵ Tier 4i Compliant

ENGINE DESCRIPTION
4 Cylinder 43 HP (32 kW) Turbocharged Water Cooled Diesel Engine

OPERATING SPEED (RPM) @ 24.7 HP
High Idle: 1800
Low Idle: 1440

DISCPLACEMENT
Bore: 2.2L
Stroke: 87.1mm x 92.5mm

CAPACITIES
Fuel: 76L
Oil: 8.0 L
Cooling System: 6.8L

(1) When welding, available auxiliary power will be reduced. Output voltage is within +/- 10% at all loads up to rated capacity.
(2) Circuits cannot be wired in parallel to operate the same device.
(3) Includes width of door. Base width is 610 mm (24.0 in.)
(4) Machine only – Does not include fuel.
(5) Engine warranted separately by engine manufacturer.

Simultaneous Welding and Power Loads

K5293-1 Power Loads - Alphaweld

 *Each receptacle is limited to 15 amps.
