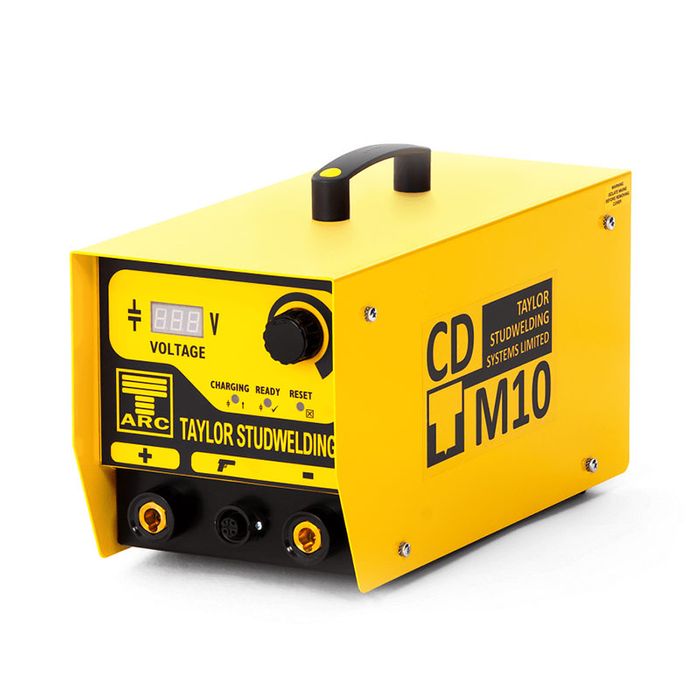

Taylor CDM10 Stud Welder

Stock Code:
CDM10
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites

Downloads

Description

The Taylor CDM10 stud welding machine is both highly cost-effective and reliable, providing powerful welding action that is fast and accurate. By combining power and portability, CD stud welding controllers are top of the market for many industries, providing welds that really last while weighing as little as 16 kilograms.

CDM capacitor discharge stud welding machines can weld CD studs from 2mm up to 10mm in diameter, including studs made from mild steel, stainless steel, aluminium and brass. Suitable materials to weld using these machines include mild and stainless steels, aluminium and Zintec (zinc-coated mild steel).

CD stud welding is ideal for thin gauge parent materials that are flat and clean, achieving flawless and strong welds with minimal marking. The improved strength provided by the welded joint between stud and sheet makes stud welding a truly superior process for fixing and fastening. The CDM range is all CE and UKCA marked.

Features:
• Compact, lightweight portable machine
• Strong, robust construction
• Rapid welding action reduces weld time
• Super fast recharge time improves profitability
• Easy adjustment of capacitor voltage
• LED displays allow easy monitoring of functions
• Quality and reliability from Taylor Studwelding Systems Limited
• Welds Mild Steel, Stainless Steel, Aluminium and Brass

Specifications:
Variants: Contact or Lift Gap
Nominal Capacitance: 132,000µ
Mains Input: 115 and 230V AC, 50 -60Hz, 1Ph
Input Power: 1.8KVA
Input Fuse Rating: 16A at 115V, 19A at 230V
Output Voltage: 35 - 200V
Weld Range Mild Steel: 2-10mm
Weld Range Stainless Steel: 2-10mm
Weld Range Al. Alloy: 2-8mm
Weld Range Zintec: 2-8mm
Weight – controller only: 18.5kg

Details

  • Brand:
    Taylor
  • Unit/Pack:
    EA
  • Power Supply:
    240V
