AllClear TA100 Grinding & Welding Table with Fume Extractor

Stock Code:
91100TA1
Price:
$6,870.00 excl GST
Special order item
Get a Fast Quote
Add to Favourites

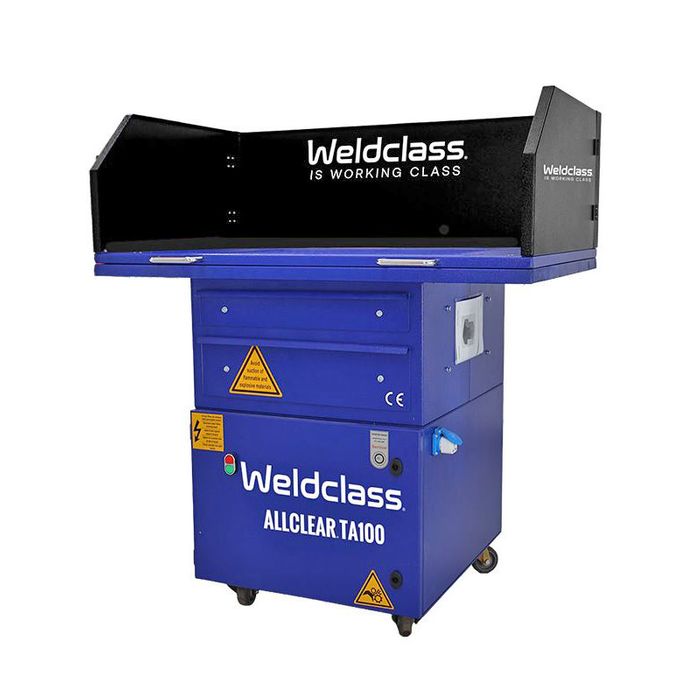

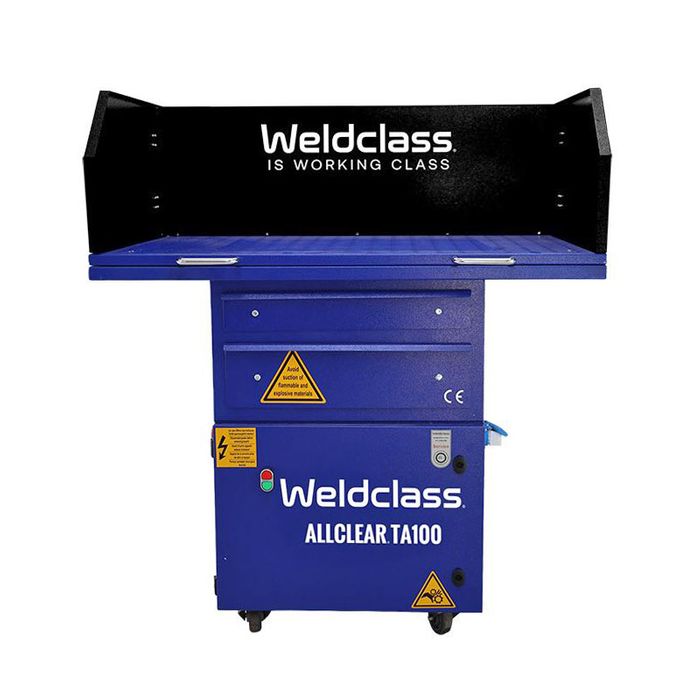

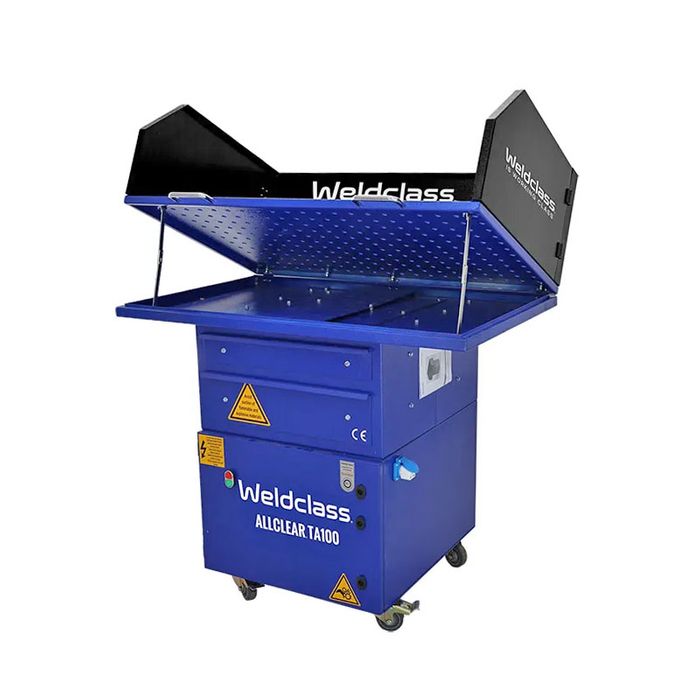

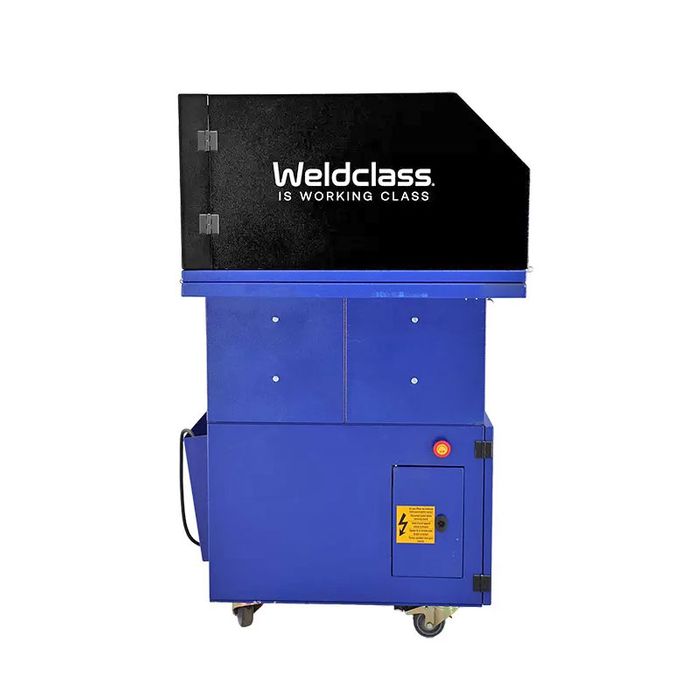

The AllClear TA100 (91100TA1) is a compact and ergonomic mobile downdraft table that is perfect for welding and light grinding. Equipped with a cassette-type main filter plus G4 prefilter and mesh spark filter, it offers ultimate ease of use. With a powerful 1kW AC motor and 240V power supply, it generates an impressive 7m per second airspeed on the working surface, effectively extracting dangerous welding and grinding fume particles to create a safe and healthy work environment. The rust-proof galvanised body and caster wheels provide excellent mobility, making it an ideal solution for any workspace.

KEY FEATURES

  • Down-draft table with inbuilt filter
  • For welding & light grinding
  • Compact and mobile
  • Ergonomic design with easy access to all functions & replacement filters

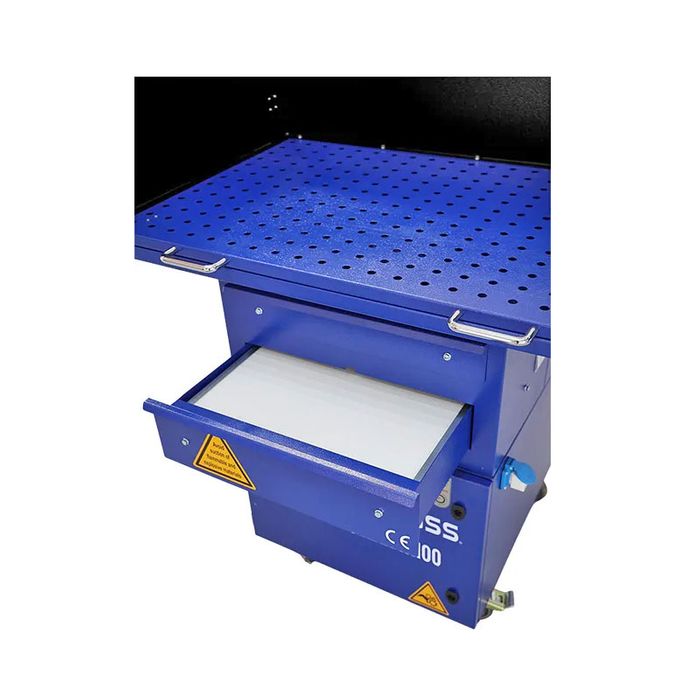

  • F9 Cassette / box type main filter
  • G4 prefilter

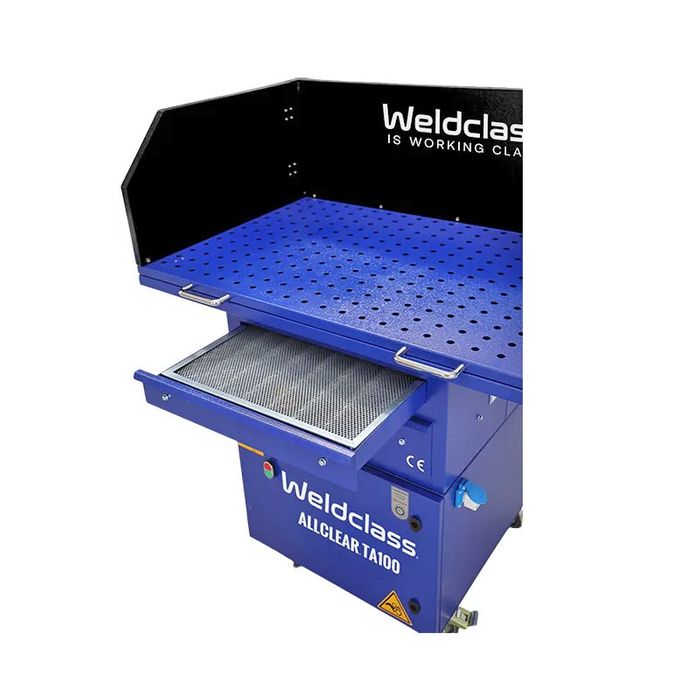

  • Mesh spark filter
  • Operates on ~230V 10A single phase power
  • Ideal for education and training applications
  • 7 Year Warranty Offer*

APPLICATIONS

  • Welding
  • Light / occassional grinding
  • NOT suitable for for heavier grinding, or cutting (including oxy & plasma cutting/gouging) - for these applications with higher spark and dust level the ALLCLEAR TA400 table is recommended
  • NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour**

SPECIFICATIONS

  • Power supply: Single phase ~230V 10A
  • Load capacity: 500kg
  • Motor size: 1kw
  • Max air flow: 2,500m³ / hour
  • Average air flow at surface: 1,350m³ / hour
  • Air speed at surface: 7m / sec
  • Noise level: 68 dBA
  • Sound insulation: Acoustic sponge
  • Body material: Galvanised steel
  • Body: Galvanised steel
  • Fan: Aluminium
  • Dimensions (mm): L700 x W1100 x H920/1255
  • Weight: 130kg

Downloads

Details

  • Brand:
    AllClear
  • Unit/Pack:
    EA
