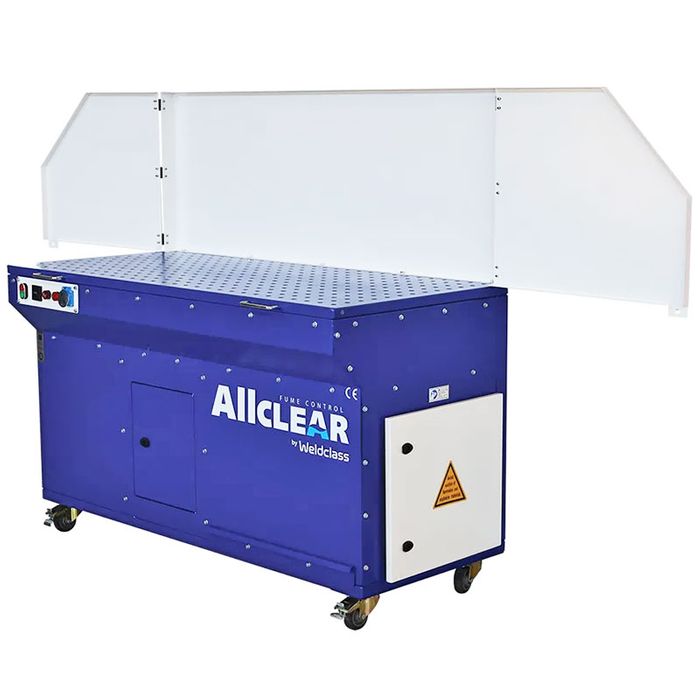

AllClear TA400 Grinding & Welding Downdraft Table 3Ph/415V
The AllClear TA400 Grinding & Welding Downdraft Table with Filter 3Ph/415V (WC-TA400) is a heavy-duty mobile downdraft table for welding, grinding, cutting and gouging. Equipped with an automatic filter cleaning system, the TA400 is efficient to use and maintain. It has an impressive airflow rate of 2,500m³/hr and delivers highly effective fume extraction for a safe and healthy work environment - thanks to a powerful 2.2kW motor and internal design engineered for maximum suction efficiency.
Other features include; spacious 1500 x 700mm downdraft workbench, 500kg load capacity, heavy-duty 5mm table top, 10A 230V outlet for powering grinders and other tools, hinged side panels, working hour counter, filter fullness indicator and more.
Multi-level spark filtration allows for safe use with processes that generate high levels of sparks and spatter, such as heavy grinding, welding with heavy material, flux-cored wire, gouging, etc. Mounted on casters for mobility, and operates off 3-phase 415V power supply.
KEY FEATURES
- Spacious 1500 x 700mm down-draft work bench
- Heavy-duty 5mm thick table top
- For grinding, welding, cutting, and gouging fumes
- Hinged side panels allow placement of longer objects on the table
- Operates on 415V 3-Phase power (no plug supplied)
- Cleanable filter for longer filter life & reduced operating costs
- Automatic filter cleaning (requires unit to be connected to compressed air supply)
- Heavy-duty build for industrial use, with exceptional 2,500m³/hr airflow rate and 500kg load capacity
- 7 Year Manufacturer’s Warranty Offer
APPLICATIONS
- Welding including MIG, TIG, STICK and Flux-Core
- Grinding of steel or stainless-steel
- Plasma Cutting
- Oxy Cutting, Brazing and Soldering
- Gouging
- Multi-level spark filtration (mesh filter plus deflector) allows for safe use with processes that generate high levels of sparks and spatter**
- NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***
SPECIFICATIONS
Power supply: 3-Phase 415V
Power plug required: 415V ≥10A, plug not included****
Work area / table top dimensions: W1500 x D700mm
Table top height: Approx 900mm
Overall dimensions: W1580 x D780 x H1450mm
Weight: 300kg
Load capacity: 500kg
Motor size: 2.2kw
Filter type: Cleanable
Filter cleaning: Automatic
Max air flow: 2,500m³ / hour
Noise level: 74 dBA
Table Top: 5mm coated steel
Body: coated steel
Fan: Aluminium
Air supply pressure required: 3-4 bar / 300-400 kPa / 40-60 psi
Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical
* Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
** Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
*** Aluminium dust, including grinding dust, can be explosive when airborne, and for this reason, fume extractors and downdraft tables should not be used for extraction of aluminium grinding dust (this does not apply to aluminium welding fumes, which can be safely extracted). Oil mist and gases can also cause explosion. Water vapour will damage the filter.
**** Power plug not included. Requires 415V plug, with amperage 10A or higher. To ensure correct rotation/direction of extractor fan/motor, the plug wiring 'phase rotation' has to match the wiring at the premises/facility of use (phase rotation wiring of any 3-phase circuit can vary from one facility to another). Plug should be fitted by a qualified electrician on the premises.
