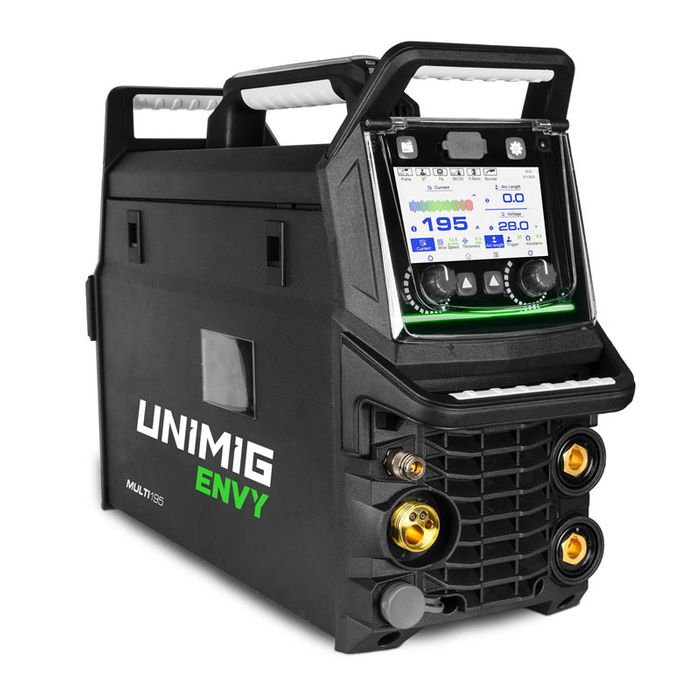

Unimig ENVY Multi 195 Welder

Stock Code:
U11204
Price:
$1,915.00 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites


Get unmatched performance, the Unimig ENVY Multi 195 is a 10A multi-process welder that produces professional-grade welds every time.

  • Single and double pulse
  • MIG programs & high-frequency DC TIG MIG & TIG Smart-Set weld modes for complete synergic setups
  • 10 amp plug, so you can use it with any domestic outlet

FEATURES

Job Memory
The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.

Dual Gas Inputs
Set up for MIG and TIG at the same time. With dual gas inputs for both weld types, you won’t need to swap your gas when you swap torches. The quick connect inputs also make replacing your gas bottle as simple as unplugging and plugging in.

Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 8.5kVA for this machine.

Lightweight & Portable
Weighing just 15.5kg, you can take this machine with you anywhere.

Inductance Control
Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.

Burnback Adjustment
Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.

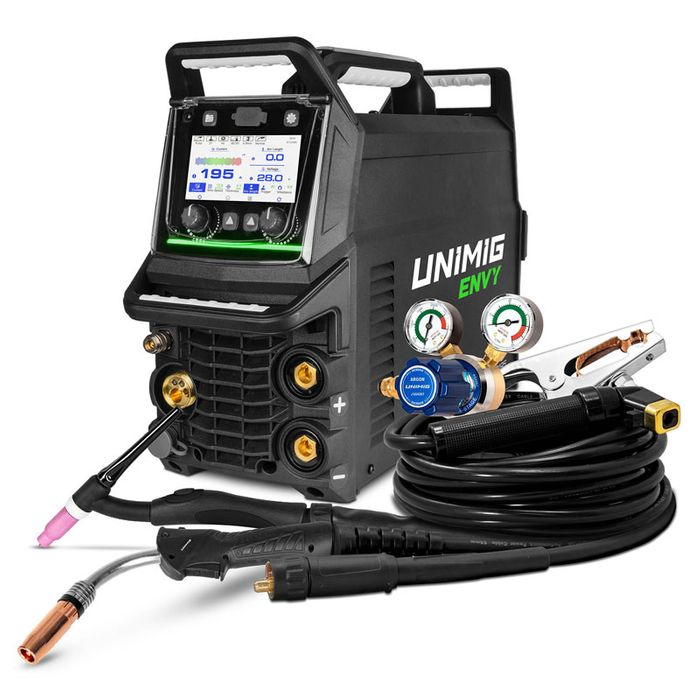

IN THE BOX

• Unimig ENVY Multi 195 Welder
• 3m M26 Digital MIG Torch
• 4m SR17 TIG Torch
• 4m Twist Lock Electrode Holder
• 4m 300 Amp Earth Clamp & Lead
• Argon Regulator
• 1.8m Quick-Connect Gas Hose
• 2 x 0.8-0.9mm V Groove Rollers
• 2 x 0.8-0.9mm F Groove Rollers
• 2 x 1.0-1.2mm U Groove Rollers
• Operating Manual

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE
240V Single-Phase

SUPPLY PLUG
10A

Ieff (A)
9.9

IMAX (A)
25.5

OPEN CIRCUIT VOLTAGE (OCV)
75.0

PROTECTION CLASS
IP21S

INSULATION CLASS
H

MINIMUM GENERATOR (kVA)
8.5

DINSE CONNECTOR
35/50

STANDARD
AS 60974.1

WARRANTY
5 Years

WEIGHT (KG)
15.50

DIMENSIONS (L x W x H)
640 x 210 x 400mm

SUITABLE MATERIALS
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
MMA: Mild Steel, Stainless Steel, Cast Iron

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE
25-195A

MIG DUTY CYCLE @ 40°C
15% @ 195A; 60% @ 98A; 100% @ 76A

MIG WIRE SIZE RANGE
0.6-1.2mm

MIG WIRE SPOOL SIZE
1kg (D100) | 5kg (D200)

MIG WELDING THICKNESS RANGE
1-8mm

DRIVE ROLLER SIZE
30/22

TIG SPECIFICATIONS

TIG IGNITION TYPE
DC High-Frequency TIG | DC Lift Arc

TIG WELDING CURRENT RANGE
5-195A

TIG DUTY CYCLE @ 40°C
20% @ 195A; 60% @ 112A; 100% @ 87A

TIG WELDING THICKNESS RANGE
1-8mm

MMA SPECIFICATIONS

MMA CURRENT RANGE
10-195A

MMA DUTY CYCLE @ 40°C
10% @ 195A; 60% @ 112A; 100% @ 87A

MMA ELECTRODE RANGE
2.5-4.0mm

MMA WELDING THICKNESS RANGE
2-12mm

Downloads

Details

  • Brand:
    Unimig
  • Unit/Pack:
    EA
