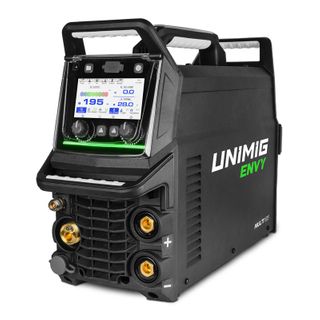

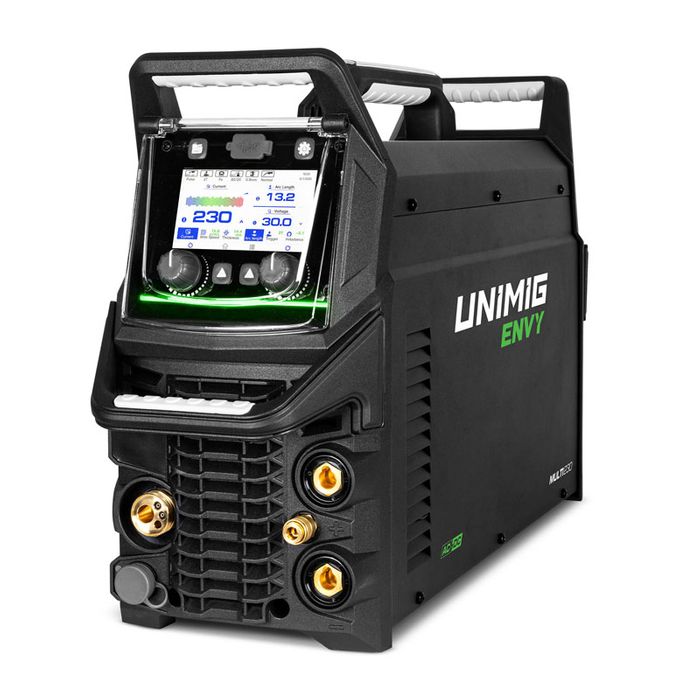

Unimig ENVY Multi 230 AC/DC Welder

Stock Code:
U11203
Price:
$3,390.00 excl GST
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites


The Unimig ENVY Multi 230 AC/DC is a professional-grade multi-process welder capable of every kind of welding you need filled with the latest revolutionary technologies.

  • Single and double pulse MIG programs
  • High-frequency AC & DC TIG
  • MIG & TIG Smart-Set weld modes for complete synergic setups

FEATURES

Job Memory
The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.

Inductance Control
Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.

Dual Gas Inputs
Set up for MIG and TIG at the same time. With dual gas inputs for both weld types, you won’t need to swap your gas when you swap torches. The quick connect inputs also make replacing your gas bottle as simple as unplugging and plugging in.

AC Waveforms
Customise your AC waveforms. Choose from your preferred welding waveform or use a combination of two to adjust the arc characteristics to suit your welding needs.

Burnback Adjustment
Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.

Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.



IN THE BOX

• Unimig ENVY Multi 230 AC/DC Welder
• 3m M26 Digital MIG Torch
• 4m T2 TIG Torch
• 4m Twist Lock Electrode Holder
• 4m 300 Amp Earth Clamp & Lead
• Argon Regulator
• 1.8m Quick-Connect Gas Hose
• 2 x 0.8-0.9mm V Groove Roller
• 2 x 0.8-0.9mm F Groove Roller
• 2 x 1.0-1.2mm U Groove Roller
• Operating Manual


MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE
240V Single-Phase

SUPPLY PLUG
15A

Ieff (A)
15.0

IMAX (A)
30.0

OPEN CIRCUIT VOLTAGE (OCV)
76.0

PROTECTION CLASS
IP21S

INSULATION CLASS
H

MINIMUM GENERATOR (kVA)
10

DINSE CONNECTOR
35/50

STANDARD
AS 60974.1

WARRANTY
5 Years

WEIGHT (KG)
24.00

DIMENSIONS (L x W x H)
680 x 210 x 395mm

SUITABLE MATERIALS
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE
25-230A

MIG DUTY CYCLE @ 40°C
25% @ 230A; 60% @ 148A; 100% @ 115A

MIG WIRE SIZE RANGE
0.6-1.2mm

MIG WIRE SPOOL SIZE
1kg (D100) | 5kg (D200)

MIG WELDING THICKNESS RANGE
1-10mm

DRIVE ROLLER SIZE
30/22

TIG SPECIFICATIONS

TIG IGNITION TYPE
AC/DC High Frequency

TIG WELDING CURRENT RANGE
10-230A

TIG DUTY CYCLE @ 40°C
35% @ 230A; 60% @ 175A; 100% @ 136A

TIG WELDING THICKNESS RANGE
1-10mm

MMA SPECIFICATIONS

MMA CURRENT RANGE
10-200A

MMA DUTY CYCLE @ 40°C
25% @ 200A; 60% @ 130A; 100% @ 100A

MMA ELECTRODE RANGE
2.5-4.0mm

MMA WELDING THICKNESS RANGE
2-12mm

Downloads

Details

  • Brand:
    Unimig
  • Unit/Pack:
    EA
