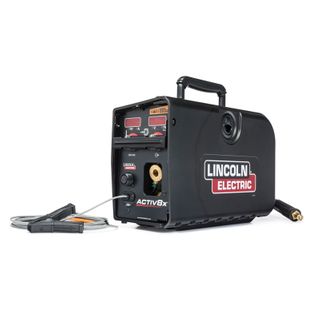

Lincoln Activ8X Pipe Wire Feeder

Stock Code:
K5240-1
Price:
$12,050.00 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites


Perfectly tuned for pipe welding applications the Lincoln Activ8X Pipe Wire Feeder is the ideal field solution for GMAW and FCAW welding applications out on the pipeline. With weld processes specifically optimised for cross country pipe welding, the Activ8X Pipe allows you to take Lincoln Electric’s industry-leading root-to-cap weld processes – including STT® and Pulsed MIG – right out to the field.

In addition, the rugged and compact design provides durability to withstand the harshest conditions, from mud and rain, to extreme heat or cold, delivering the reliability you need to perform in the toughest welding applications.

FEATURES

  • Waveform controlled STT-Field arc for full penetration, full fusion, open root passes on pipe
  • No control cables needed
  • No sense lead needed
  • Portable, compact package
  • CV DC+ only for solid wire and metal core wire
  • Simple setup
  • Easy to use with 4 memory locations

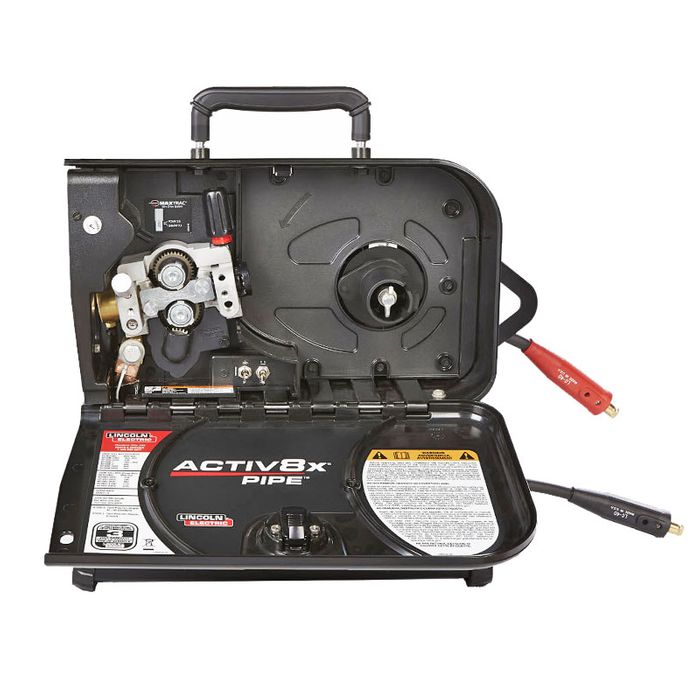

  • 8" (200mm) diameter spool capacity

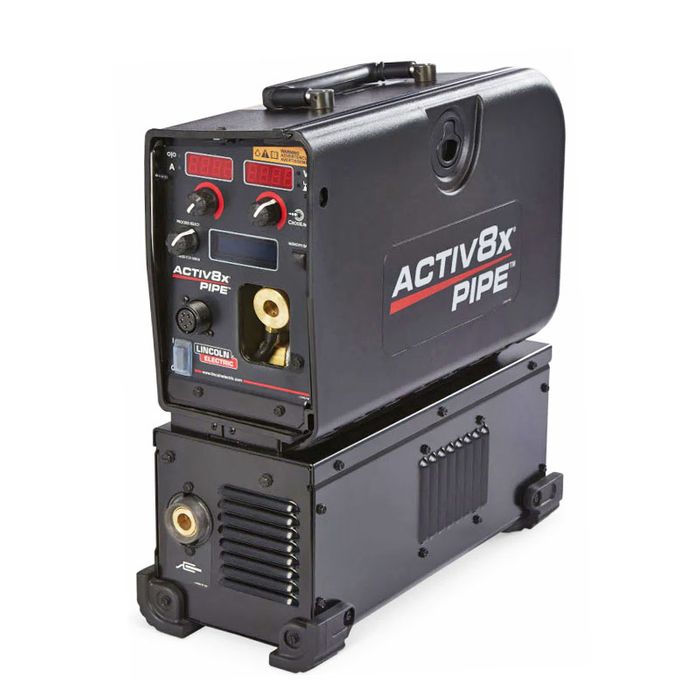

  • Recommended compatible power source; Flextec 350XP (CE) (Twist Mate / Dinse)
  • Twist Mate / Dinse connections

SPECIFICATIONS

MACHINES

Machines Processes
MIG (GMAW)Machines Processes MIG (GMAW)Pulsed MIG (GMAW-P)Flux-Cored Gas-Shielded (FCAW-G)GMAW-STT

Data Technologies
USB

Machines Communication Technology
CrossLinc

Work Lead Connector Type
Dinse

WIRE AND TIG FEEDERS

Number of driven rolls
2 rolls

Number of driven rolls
2 rolls

Feeder type
Portable

Max spool diameter
200mm

Communication Technology
CrossLinc

UI type
Meters

Max Wire Diameter (Solid)
3/64 in (1.2 mm)

Feedhead Configuration
Single

Wire Configuration
Single

Gun Bushing
Tweco #2-#4

Wire Feed Speed Range (IPM)
50-700

Wire Feeders Processes
MIG, Pulsed MIG, MIG-STT

Safety Listing CSA
Yes

BASIC SPECIFICATION

Polarity
DC+

Rated Output
275A@60%

APPLICATION

Typical Application
Cross Country Pipeline, LPG & LNG Storage Vessels, Pipeline & Offshore, Piping, Power Generation, Process Piping, Shipbuilding

Warranty
3 Years

PRODUCT WEIGHTS AND DIMENSIONS

Dimensions (H x W x D)
457 mm x 203 mm x 483 mm

Net Weight
10.1kg

Downloads

Details

  • Brand:
    Lincoln Electric
  • Web Type:
    Lincoln Electric Machines
  • Unit/Pack:
    EA
