ProArc Headstock-Tailstock Welding Positioner 1000kg 240V

Stock Code:
HTS-1000
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

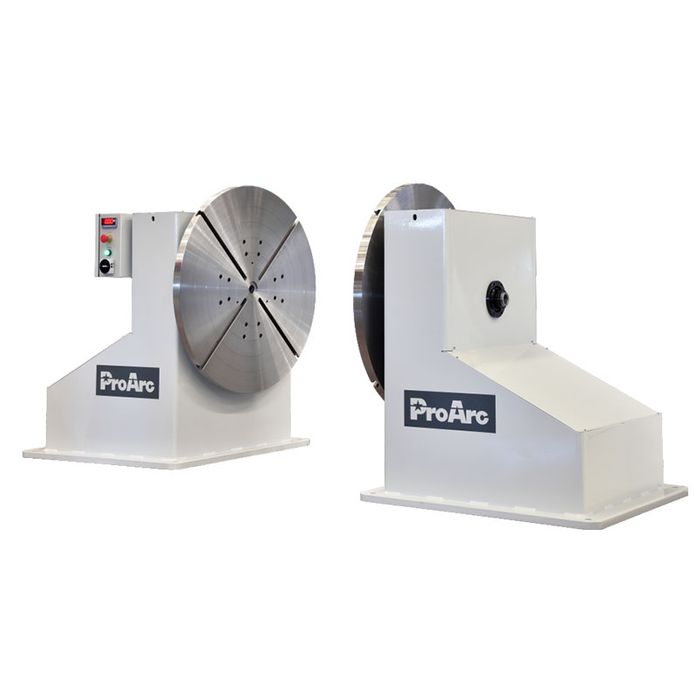

The ProArc HTS-1000 welding positioner comprises of the HS-500 headstock and TS-500 tailstock.

Features & benefits:
• All welded steel frame structure
• For long weldments rotation
• Machined 'T' slots table with pilot and through hole
• A.C. inverter drive for rotation
• Forward-stop-reverse and variable speed control are standard
• Totally gear-safe design
• Maintenance-free grounding system
• Optional adjustable table height to fit larger workpieces
• Available capacities range from 500kg to 20,000kg

Specifications:
HS-Headstock/TS-Tailstock: HS-500/TS-500
Power input: AC 100-240V 50/60 Hz, 1 phase
Rotation motor (hp): 1/5
Overall length (mm): 510
Overall width (mm): 500
Overall height (mm): 825
Centre to floor (mm): 600
Bold-down hole dia.*square (mm): 20*450
Capacity (kg): 500 (HS-500)/500 (TS-500)
Total loading capacity (kg): 1000
Rated eccentricity (mm): 100
Eccentric load torque rating (kg-cm): 5000
Table dimension (mm): 450
Through hole (mm): Ø25
Table pilot hole (dia. x depth) (mm): Ø50 x 5
Table slot bolt size: M12
Rotation speed (RPM): 0.12 ~ 2
Earthing (amp): 300

Details

  • Brand:
    ProArc
  • Web Type:
    ProArc Headstock-Tailstock Welding Positioners
  • Unit/Pack:
    EA
  • Pack Qty:
    1
