ProArc Headstock-Tailstock Welding Positioner 4000kg 220V

Stock Code:
HTS-4000
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

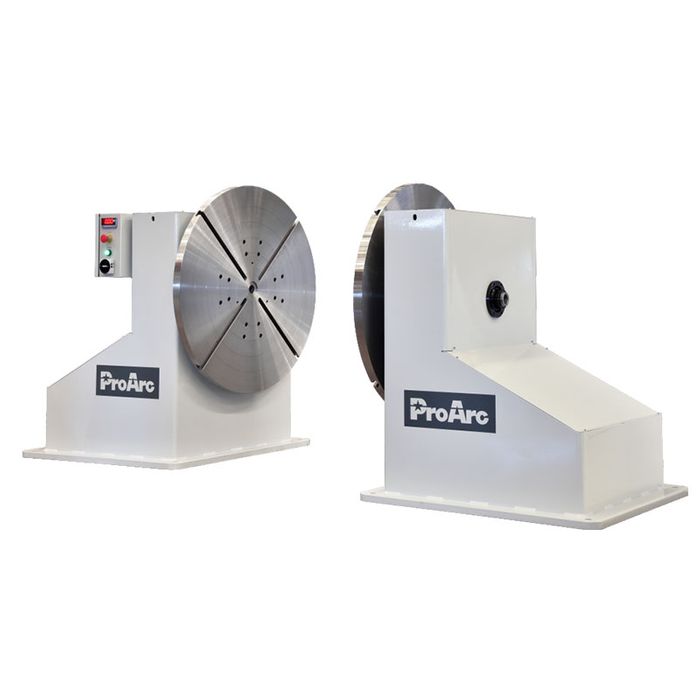

The ProArc HTS-4000 welding positioner comprises of the HS-2000 headstock and TS-2000 tailstock.

Features & benefits:
• All welded steel frame structure
• For long weldments rotation
• Machined 'T' slots table with pilot and through hole
• A.C. inverter drive for rotation
• Forward-stop-reverse and variable speed control are standard
• Totally gear-safe design
• Maintenance-free grounding system
• Optional adjustable table height to fit larger workpieces
• Available capacities range from 500kg to 20,000kg

Specifications:
HS-Headstock/TS-Tailstock: HS-2000/TS-2000
Power input: AC 220V 50/60 Hz, 1 phase
Rotation motor (hp): 1
Overall length (mm): 900
Overall width (mm): 1000
Overall height (mm): 1,175
Centre to floor (mm): 800
Bold-down hole dia.*square (mm): 20*750
Capacity (kg): 2000 (HS-2000)/2000 (TS-2000)
Total loading capacity (kg): 4000
Rated eccentricity (mm): 300
Eccentric load torque rating (kg-cm): 60,000
Table dimension (mm): 800
Through hole (mm): Ø35
Table pilot hole (dia. x depth) (mm): Ø50 x 5
Table slot bolt size: M16
Rotation speed (RPM): 0.05 ~ 0.8
Earthing (amp): 600

Details

  • Brand:
    ProArc
  • Web Type:
    ProArc Headstock-Tailstock Welding Positioners
  • Unit/Pack:
    EA
  • Pack Qty:
    1
