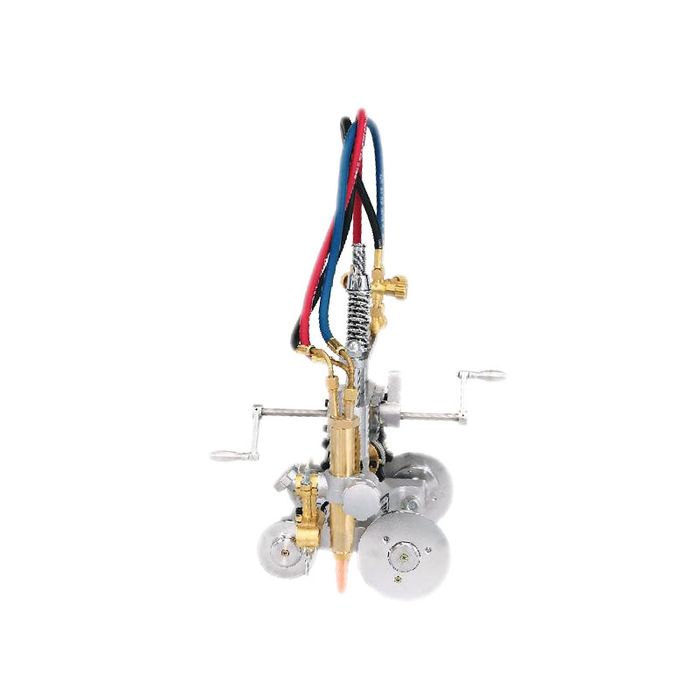

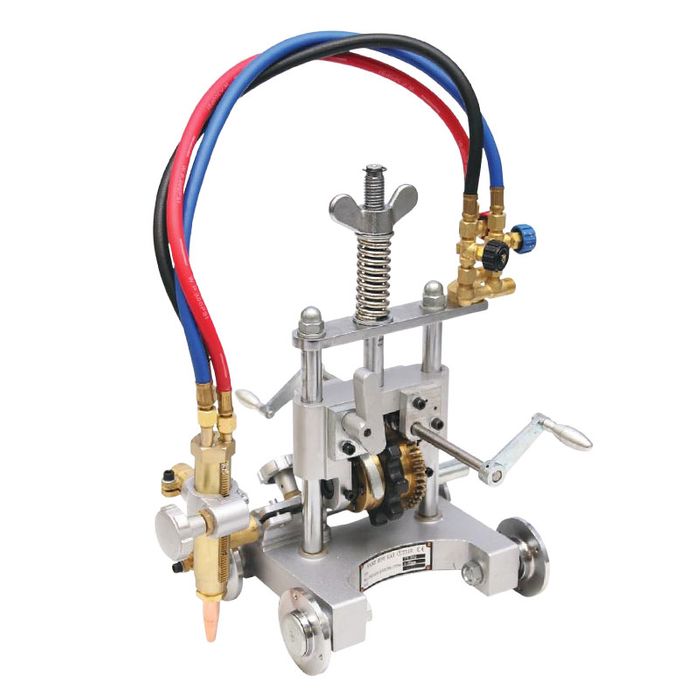

TX-21Q Pipe Cutter with Quick Clutch & 2.4m Chain

Stock Code:
4125
Price:
$1,782.00 excl GST
Stock Level:
Currently in Stock
Get a Fast Quote
Add to Favourites

Downloads

Description

The Weldclass TX-21Q is a tried and tested, reliable hand-crank style gas (flame) pipe cutting machine. It has a unique 'quick clutch' feature to allow fast positioning of the machine around the pipe, without needing to wind the handle - saving you valuable time on the job.

For compatible use with Oxy/Acetylene or Oxy/LPG.

Features & Benefits:
• Light weight and portable
• Unique quick clutch feature; quickly engages or disengages the drive sprocket to allow fast positioning of the machine by hand prior to cutting
• Robust design
• Backlash free worm drive system for smooth cutting
• Uses common chain design - chain is interchangeable with other machines
• Horizontal and vertical torch adjustment
• Straight or bevel cutting
• Supplied with additional wheel flanges which bolt onto existing front wheels to increase chassis clearance for cutting smaller pipes
• Valves located away from the torch for easy operation
• Use with Oxy/Acetylene or Oxy/LPG

Applications:

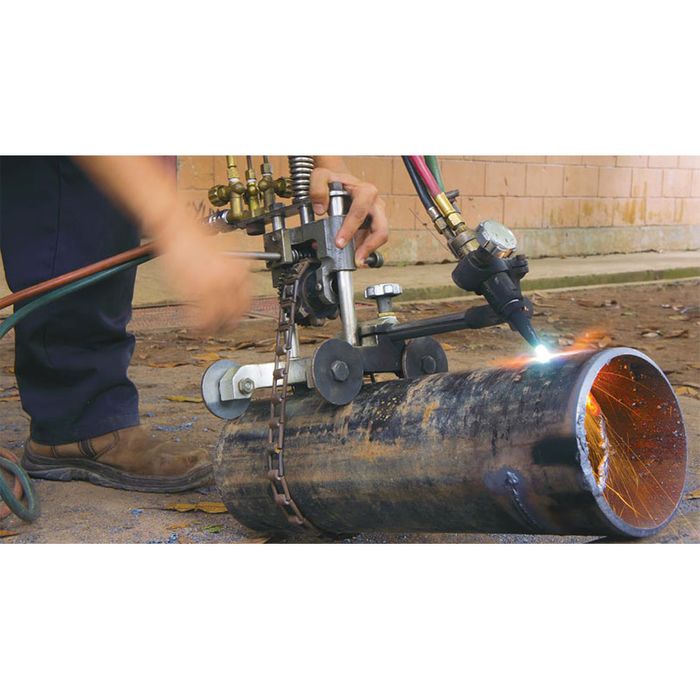

• Ideal for cutting steel pipes 100mm or larger

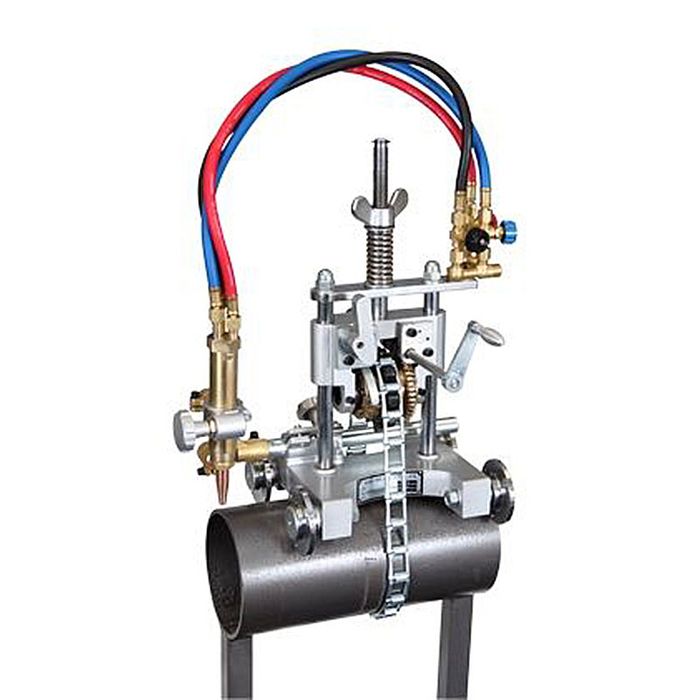

• Chain is used to hold the cutter and guide it around the pipe
• Propelled by hand crank, No power or electricity needed

Specifications:
Pipe Diameter: Minimum 100mm O.D. ; Maximum: Approx. 600mm O.D. with one length of chain, additional chain can be added to cut larger pipe
Cutting Thickness: Up to 50mm wall thickness
Bevel Angle: 0 – 45°
Cutting Tips: Uses 3-seat machine cutting tips; Oxy/Acetylene – Type 51; Oxy/LPG – Type 54
Gas: Oxy & Acetylene or Oxy & LPG
Gas Inlet Connections: 5/8” UNF (Standard Australian Oxy connection)
Dimension: Approx 280mm x 280mm x 450mm high
Weight: Approx 13kg
Warranty: 6 months
Also Known as: Oxy gas pipe cutter with chain, oxy acetylene & oxy lpg flame cutting, portable manual pipe cutting machine for steel pipe, chain and gear hand crank drive pipe cutter

FAQs:
Q: Why does this pipe cutting machine use Type 51/54 3-seat tips, instead of standard Type 41/44 tips as used on hand torches?

A: Type 41/44 tips are not used on cutting machines for a number of reasons, one being that they are not the best design to achieve good performance in machine cutting applications. Type 51/54 3-seat tips are a very common tip used on many Oxy cutting & machines in Australia & other countries.

Details

  • Brand:
    Weldclass
  • Web Type:
    Pipe Cutting
  • Unit/Pack:
    EA
