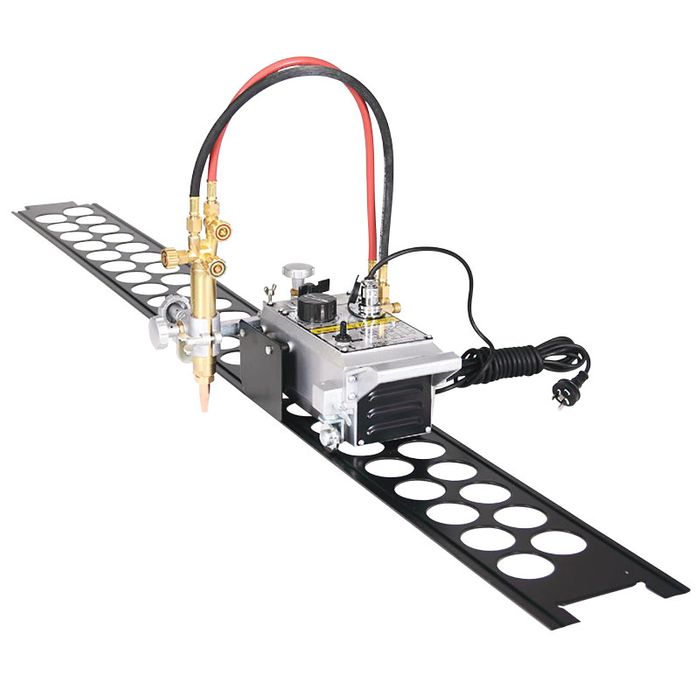

TX-180 Plate Cutter Package with Single Torch & 1.8m Track

Stock Code:
4121
Price:
$1,472.50 excl GST
Stock Level:
Currently in Stock

Description

The Weldclass TX-180 Plate Cutter is an ideal machine for cutting or stripping metal plate. Cuts steel plate up to 150mm thick. Accurate and easy to use item with a proven performance ratio that can be used with LPG or Oxy/Acetylene.

Package includes:
• Tractor Unit

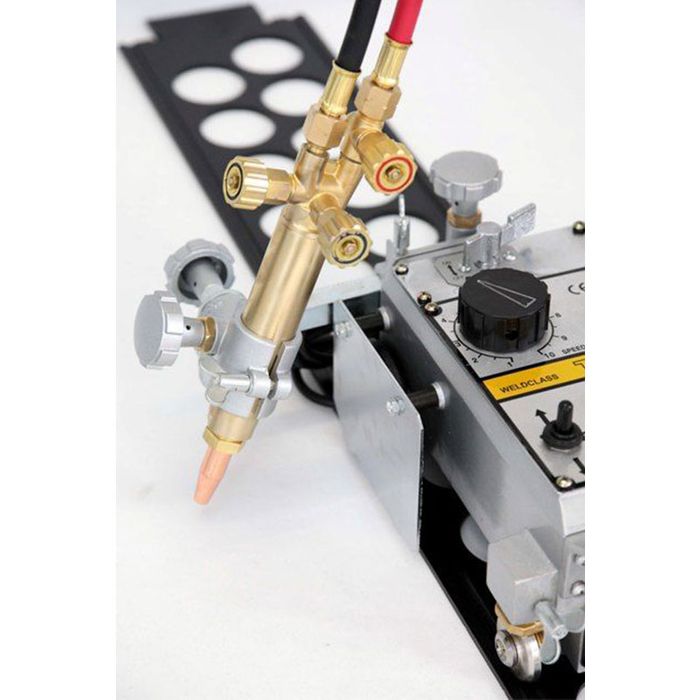

• Single Cutting Torch Assembly
• 1.8m Track
• Oxy/Acetylene Cutting Tips: Sizes 0, 1, 2
• Oxy/LPG Cutting Tips: Sizes: 0, 1, 2
• Tool Kit

Key features:
• Uses common track design - track is interchangeable with other machines
• Horizontal and vertical torch adjustment
• Straight or bevel cutting
• Heat deflector
• Adjustable speed
• Forward and reverse
• Twin torch upgrade kit available
• Use with "Type 51/54" 3-seat machine cutting tips

Applications:

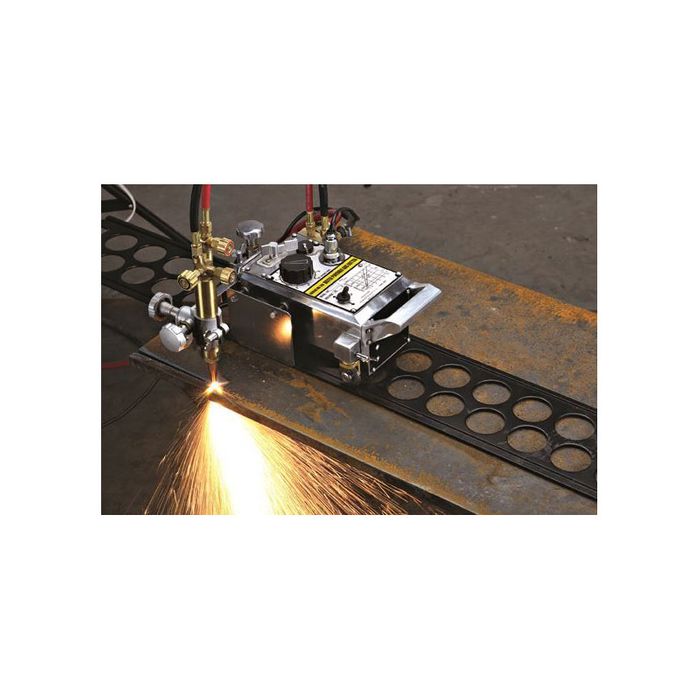

• Straight or Bevel cutting of steel plate

Specifications:
Travel Speed: 180 – 800mm / minute
Cutting Thickness: 5 – 150mm
Bevel Angle: 0 – 45°
Cutting Tips: Uses 3-seat machine cutting tips; Oxy/Acetylene – Type 51; Oxy/LPG – Type 54
Power Supply: 240V – 10A Plug
Gas: Oxy & Acetylene or Oxy & LPG
Gas Inlet Connections: 5/8” UNF (Standard Australian Oxy connection)
Dimension: 370mm Long x 300mm Wide (with standard rack bar) x 150mm High (excluding torch & hoses)
Weight: With Single Torch: 10kg With Twin Torch: 15kg
Cooling: Fan cooled
Warranty: 6 months
Also Known as: Straight Line Cutter, Beetle Style Cutter

FAQs:
Q: Why does this plate cutting machine use Type 51/54 3-seat tips, instead of standard Type 41/44 tips as used on hand torches?

A: Type 41/44 tips are not used on cutting machines for a number of reasons, one being that they are not the best design to achieve good performance in machine cutting applications. Type 51/54 3-seat tips are a very common tip used on many Oxy cutting & machines in Australia & other countries.
