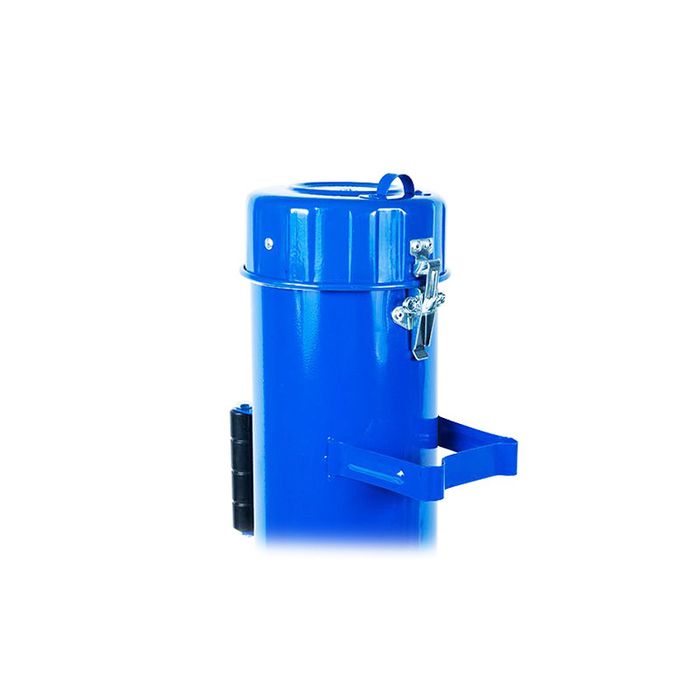

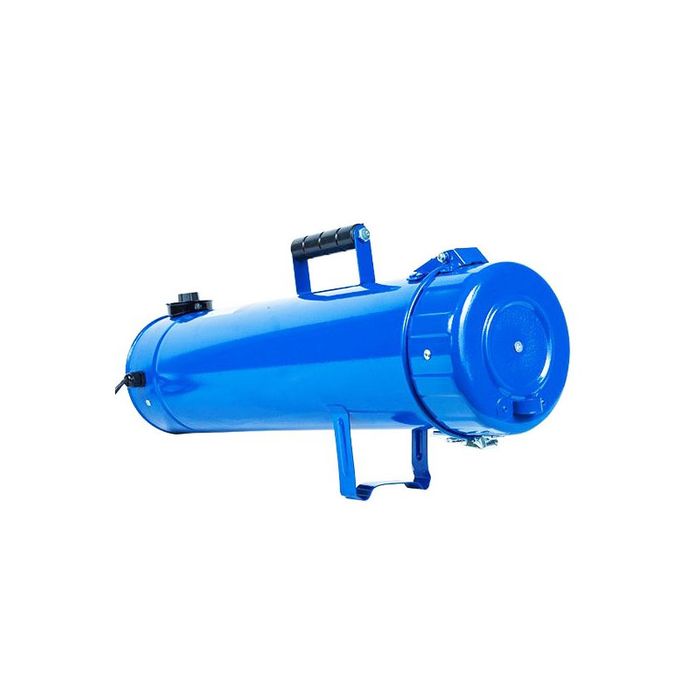

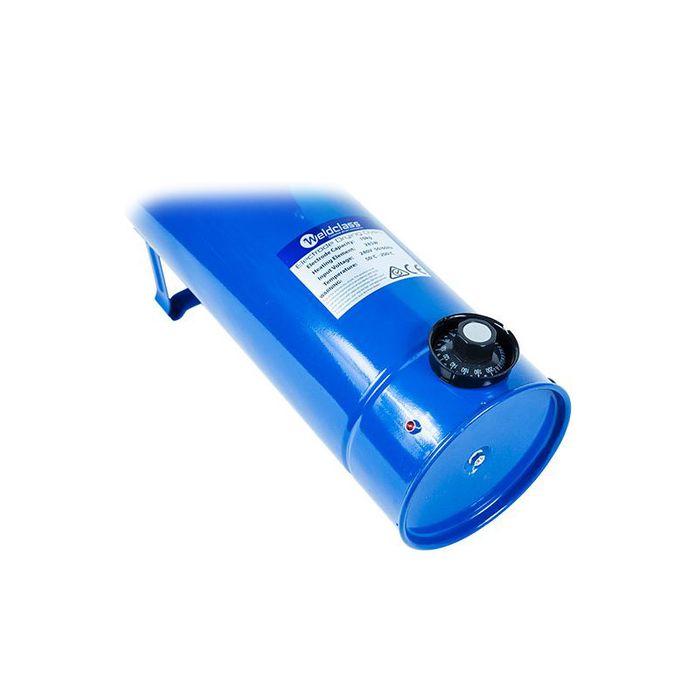

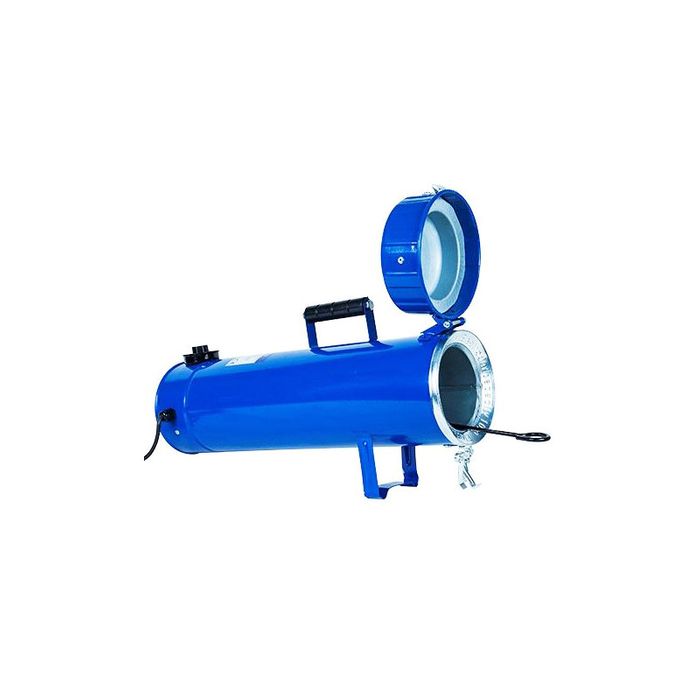

Weldclass Portable Electrode Oven 5-10kg

Stock Code:
$394.70 excl GST
Stock Level:
Please contact us for stock availability



Two models in one portable electrode oven for users that are looking for either 5kg or 10kg capacity. Suitable for all types of electrodes and commonly used with Low-Hydrogen electrodes, to eliminate moisture contamination and maintain electrode mechanical properties.

Features & Benefits:
• Weight, size and portability is comparable to most 5kg ovens, but with the capacity to fit 10kg if required
• Considerably lighter, more compact and more portable than most other 10kg models
• Keeps electrodes moisture-free for optimum weld quality and electrode performance
• Cylindrical Chamber keeps electrodes in better condition and avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged)
• Lightweight (4.5kg) = Reduced strain on operator
• 7-Year Manufacturer's Warranty

• Variable temperature control 50-200°C
• Over-centre latch to hold lid firmly shut
• Protected temperature control knob
• Insulated lid for improved temperature stability
• Overall dimensions: 600 x 300 x 160mm including handle and foot
• Shipping Weight / Dimensions: 5.5kg 280 x 180 x 620mm
• Galvanised internal chamber for durability
• Internal chamber size: ø105 dia x 470mm
• Fits electrodes up to 500mm long
• Power supply: 240V 10A
• Heating element: 285W
• Weight: 4.5kg
• Approvals / Conformance: CE EN 61000: 6-1, 6-3, 3-2, 3-3


  • Brand:
  • Web Type:
    Electrode Ovens
  • Unit/Pack:
  • Pack Qty:
