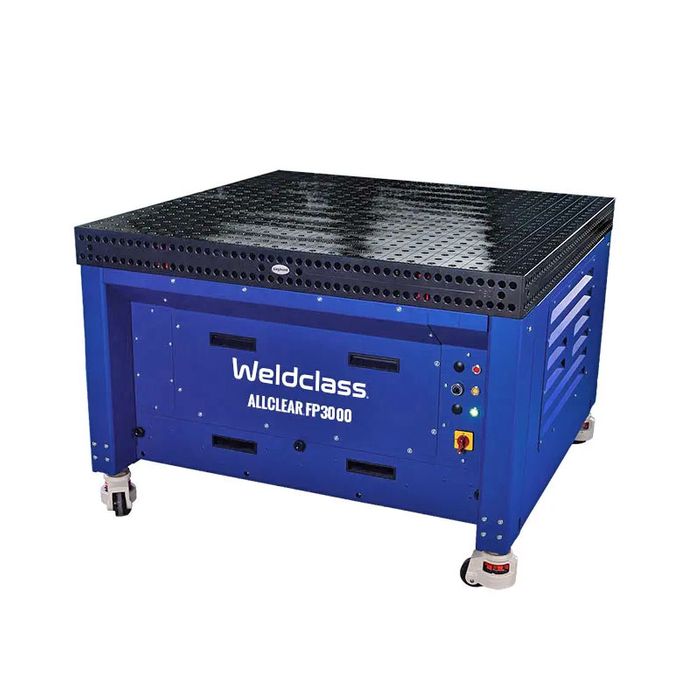

AllClear FP3000 with 3000x1500x100mm Table Top
Meet the AllClear FP3000 (WFP30T116) from Weldclass' FP Series: a range of Downdraft Fixture-Point welding tables that keep fumes out of your work zone without restricting access. Fumes and grinding dust are extracted downwards at the source, giving you full tabletop freedom for clamping, jigging, cobots, and robotics, with no overhead hoods or hoses. With up to 2,300m³/hr airflow, a variable-speed 3-phase motor, and cleanable, reusable M-Class (>99%) filter, the FP Series delivers powerful and efficient fume extraction.
FEATURES
- Downdraft welding and grinding table with inbuilt filter
- Fixture-point table top, compatible with globally used welding table brands and associated tooling/clamping accessories
- No overhead hoods or hoses that would otherwise restrict access
- Heavy-duty build for industrial use (600kg/m2 load capacity), yet mobile and easy to move around the workshop
- Up to 2,300m³/hr airflow rate for effective fume extraction
- Operates on 415V 3-phase power (5 pin plug)
- Cleanable, reusable cartridge filter for longer filter life and reduced operating costs
- Spark deflector plate shields filter from sparks & coarse particles (redirecting them to the dust collection tray), significantly reducing the risk of burnout / fire**, and further increasing filter life
- Dust collection tray allows high volume use, and easy & safe removal of dust
- Filter fullness indicator, malfunction warning
- Made in Europe
APPLICATIONS
- Cobots and robotics
- TIG Welding
- MIG and Flux-Core Welding
- STICK Welding
- Grinding of steel or stainless-steel1
- Suitability for Plasma or Oxy-fuel cutting will depend on application3
- Used in education, manufacturing, maintenance, and industrial applications
- WARNING: NOT suitable for extraction of fumes that contain aluminium dust, oil mist, gases, or water vapour2
PRODUCT VIDEO
SPECIFICATIONS
- Power supply: 3-phase ~415V, 5 pin (plug not included)4
- Working height: 725mm excluding the table top (825mm with a 100mm table top)
- Load capacity: 600kg/m2
- Filter type: Cleanable M-Class (>99% efficiency)
- Filter surface area: 14m²
- Max air flow: 2,300m³/hour
- Noise level: 74 dBA
- Warranty: 2 Years
TABLE TOP SPECIFICATIONS
| Hole Diameter Ø |
Thickness (Sidewall Height) |
Hole Spacing / Pattern |
| 16mm | 100mm | 50mm spacing, square grid |
| 28mm | 200mm | 100mm spacing, square grid |
1 Regular maintenance must be carried out, and all warnings and instructions provided in the user manual and on the unit must be followed for ongoing safe use and prevention of fire hazards. Poor or improper maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
2 Whilst aluminium welding fumes can be safely extracted, Aluminium Dust, including grinding dust, can be explosive when airborne, and for this reason, fume extractors and downdraft tables should not be used for extraction of aluminium grinding dust or applications where aluminium dust may be present in the extraction zone. Oil mist and gases can also cause explosion. Water vapour will damage the filter.
3 Compared to welding and grinding, Plasma and Oxy-Fuel cutting processes produce large volumes of hot and/or molten metal/dross particles that are projected downwards. This can cause: a) spatter/dross build-up and high rate of wear to the table top, filter system, and other components, b) rapid filter clogging and loss of fume extraction performance, c) fire hazard if filter systems become worn or overwhelmed with a large volume of hot particles/dross.
ALLCLEAR FP Series Tables are generally suitable for Infrequent and Light-Duty oxy or plasma cutting only, provided that precautions are taken for protection of the table top and filters are checked and cleaned regularly (minimum daily). Use of ALLCLEAR FP Series Tables in their standard configuration for frequent and/or medium-to-heavy oxy or plasma cutting is NOT recommended by Weldclass, without appropriate modifications for hot material/dross management. Contact Weldclass for more information on solutions for plasma and oxy-fuel cutting. ALLCLEAR FP Series Tables are NOT recommended for gouging processes.
4 Power plug not included. Requires 415V 5 pin plug, with amperage 10A or higher. To ensure correct rotation/direction of extractor fan/motor, the plug wiring ‘phase rotation’ has to match the wiring at the premises/facility of use (phase rotation wiring of any 3-phase circuit can vary from one facility to another). Plug should be fitted by a qualified electrician on the premises.
