AllClear PD30 Personal Fume Monitor

Stock Code:
WC-01668
Price:
$2,289.50 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

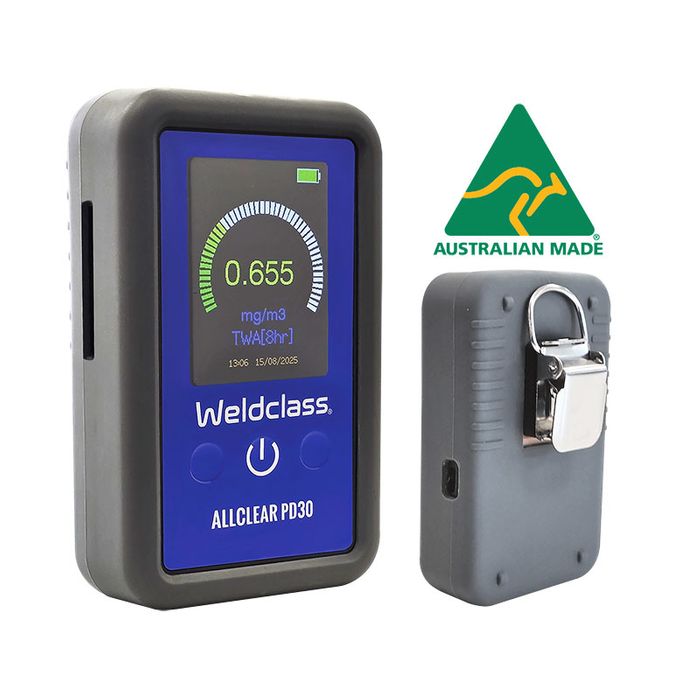

Stay on top of workplace air quality with the Australian-made AllClear PD30 Personal Welding Fume Monitor. Lightweight and wearable, the PD30 measures welding fumes directly where your people work. Provides real-time, on-device TWA (Time-Weighted Average) fume readings, to support compliance with Australian legislation. With 12+ hours of runtime at a 1-second sampling rate and simple, colour-coded display, the PD30 is a dependable and easy-to-use solution for keeping welders safe on the job.

PD30 data can be viewed directly on the device, via WiFi on a mobile phone, or through cloud access - where multiple/unlimited devices can be connected to monitor fume levels across your workforce and workplace.

KEY FEATURES

  • Designed and Made in Australia
  • Wearable: measure fume right where your team works
  • Provices TWA (Time Weighted Average) reading, to support compliance with Australian legislation that specifies TWA standards/limits
  • TWA reading displayed on PD30 device (unlike some other devices where TWA reading is not available on the device itself)
  • Small and lightweight: 260g
  • Runtime of 12+ hours with 1 second sample rate
  • Shock absorbent protective rubber cover
  • Tough metal clip attaches to clothing or belts

DATA OPTIONS

  • PD30 device: Real-time TWA reading
  • Mobile phone web app (free, single device only, connect via WiFi): Real time TWA reading, alarm settings, download historical readings (up to 3yrs) via csv
  • Cloud platform: Connect unlimited number of PD30 devices to track and monitor TWA readings across entire worksites, download historical readings, etc from one portal. Subscription fee per device applies

SPECIFICATIONS

  • Battery life: 12+ hours, or 18 hours in power save mode
  • Data connection: WiFi
  • Charge cable connection: USB-C
  • Mounting: Metal material/clothing clip + D-loop ring
  • Data storage: 3 years
  • Dimensions: H120 x W74 x D32mm
  • Weight: 260g

TECHNICAL DATA

  • Particle size detection range: 0.3um – 10um
  • Warnings: Inhalable / Respirable TWA8H (Time Weighted 8 Hours), and Inhalable / Respirable STEL (Short Term Exposure Limit)
  • Housing material: Silicone rubber
  • Mounting
  • Battery size/type: 3.7V lithium ion
  • Charger specifications: 240V 10A, 5V 1amp, USB-C connection
  • Data connection: WiFi 802.11 b/g/n
  • CPU: 240 Mhz
  • Operating temperature range: -10OC to +60OC
  • Operating humidity range: 0-90%, non-condensing
  • Measuring method: Photometric (scattered laser)
  • Measurement interval: 1 per second
  • Sampling method: Dynamic controlled fan
  • Display: 2.4 inch TFT, full colour
  • Callibration and maintenance: Return to Weldclass for service & callibration every 2 years from date of issue
  • Country of origin: Made in Australia
  • Datalog file format: CSV
  • Datalog file grouping: Daily
  • Datalog retrieval: Webserver, to smart device or PC
  • Memory capacity: 16GB SD card + 4GB internal

* Standard warranty 2 years, with extended 7 year warranty offer available if registered online after purchase, click here for details.

Downloads

Details

  • Brand:
    AllClear
  • Unit/Pack:
    EA
