Bug-O Mini Circle Welder 240V

Stock Code:
100-1480-240
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

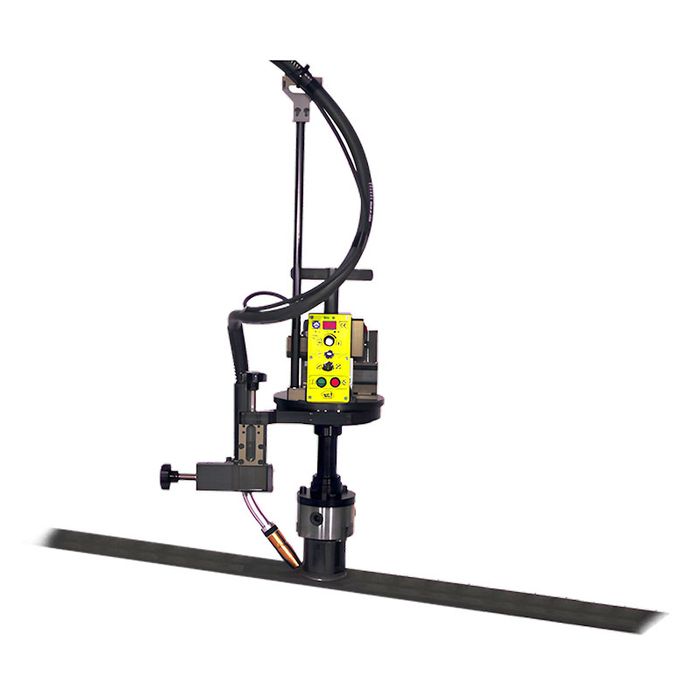

The Bug-O Mini Circle Welder (MCW) is designed for applications such as wind tower brackets inside of wind power towers and small tubes of boiler tube sheet.

FEATURES

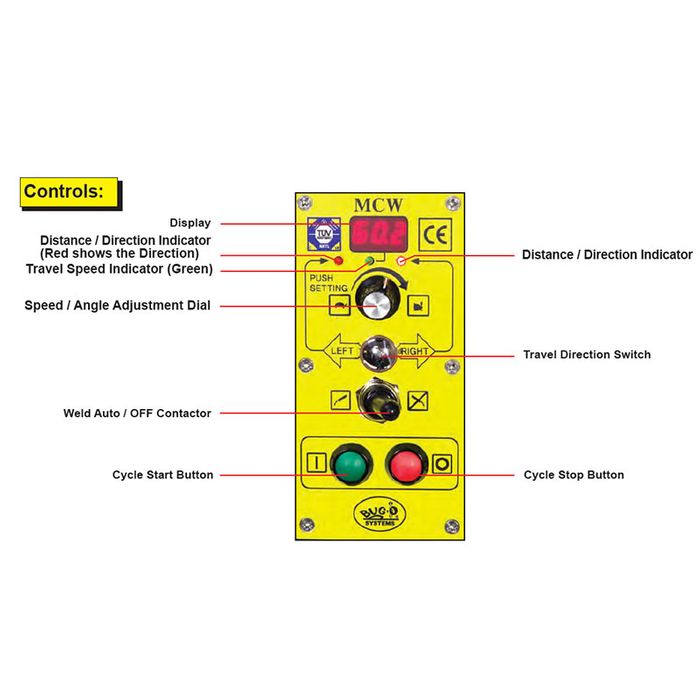

  • LED screen shows the exact travel speed
  • Welds 1.18″-3.94″ (30-100mm) diameter
  • Adjustable crater fill
  • The travel speed is controlled by a microcomputer to achieve precise rotation, so the programmed weld length is consistent
  • When welding is stopped, the built-in automatic crater fill function improves the weld quality
  • Working position setup is simple with provided torch adjustment device
  • After welding starts, the machine will weld one turn and then automatically stop
  • After one cycle of automatic welding is completed, the machine will weld in the opposite direction to prevent cable twisting
  • When using a collet type centering device, the operator turns the carrying handle to secure the machine to the weldment

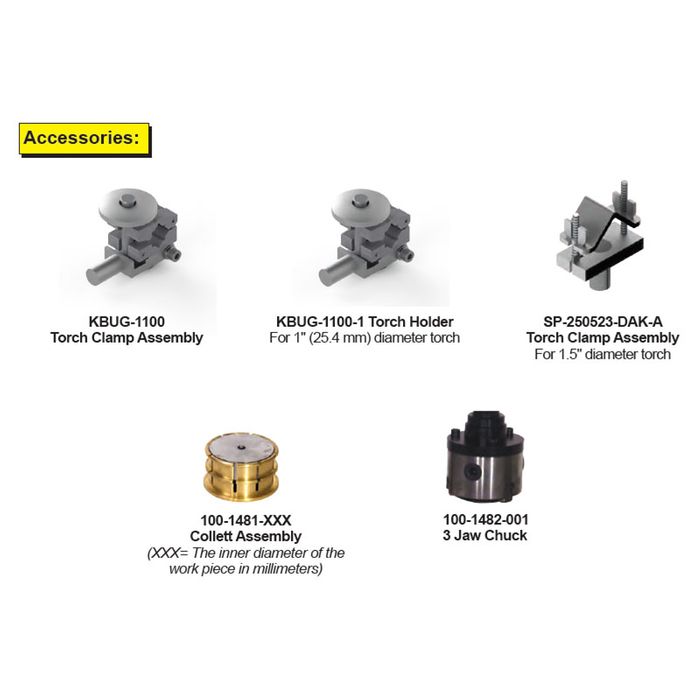

  • If machine is used with the optional 3-jaw chuck, the above statement does not apply

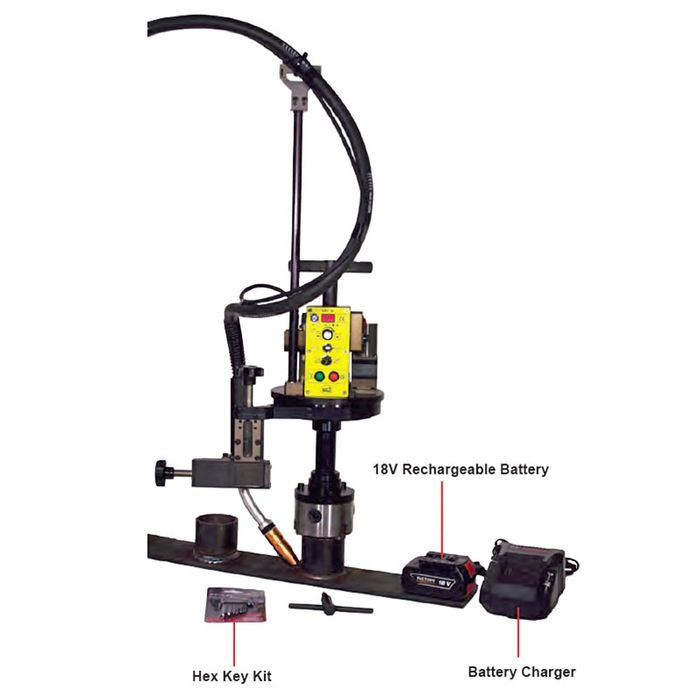

  • An 18 volt, 4.0Ah rechargeable battery powers the machine

BENEFITS

  • Increase Productivity - Mechanisation enhances production efficiency by delivering consistent, repeatable results
  • Improve Quality - Microcomputer regulated travel speed ensures consistent weld length
  • Reduce Distortion - Precise speed and path control of welds
  • Diminish Material Handling - Precise speed and path control of welds
  • Improve Worker’s Environment - Moves the operator further away from fumes

SPECIFICATIONS

Power: 240VAC/50-60Hz/1Ph
Travel Speed: 0 - 471cm/min)

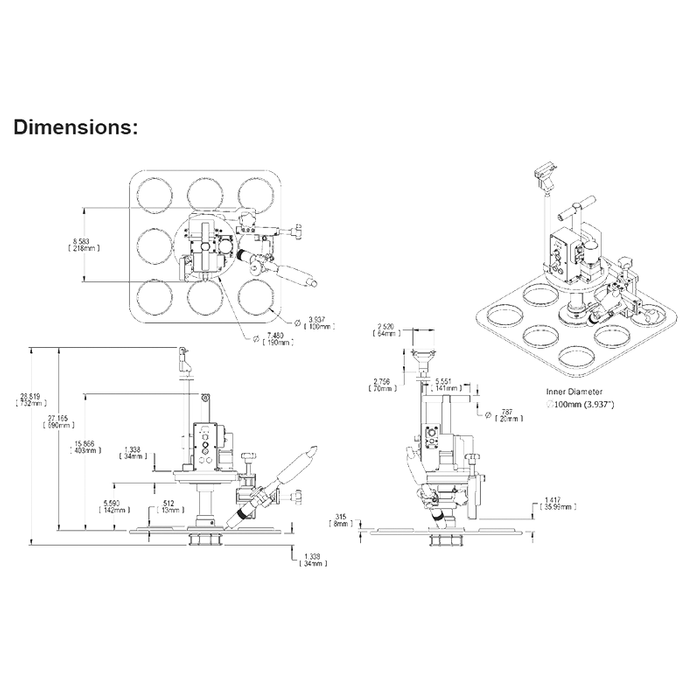

Dimensions: 331 x 221 x 438mm
Net Weight: 7.8kg

Downloads

Details

  • Brand:
    Bug-O Systems
  • Web Type:
    Bug-O Automation
  • Unit/Pack:
    EA
