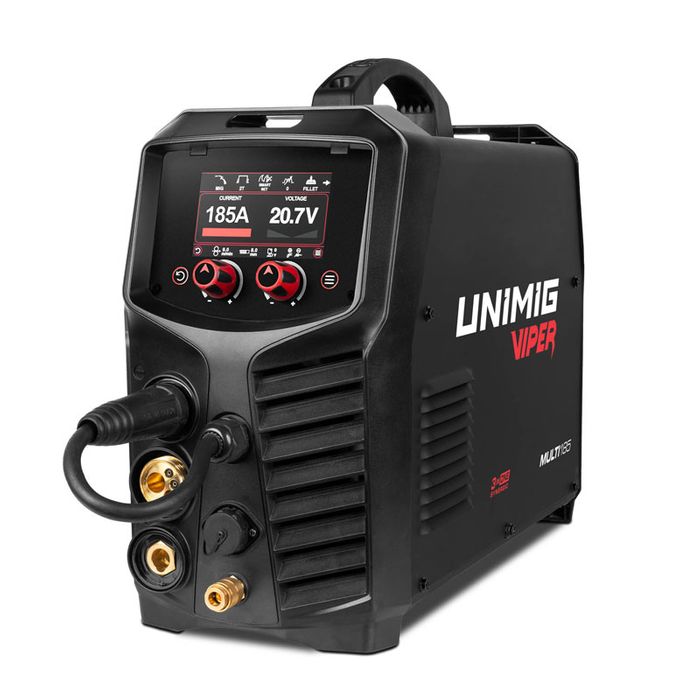

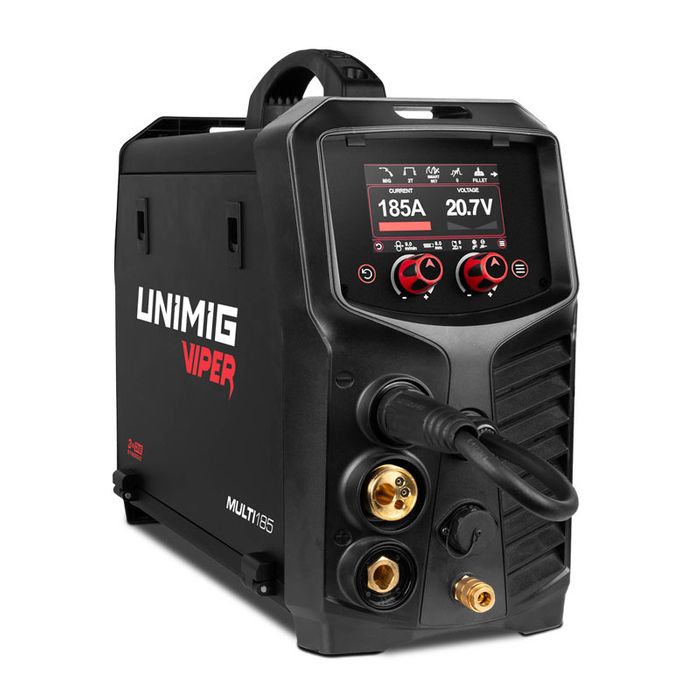

Unimig VIPER Multi 185 MIG/TIG/STICK Welder

Stock Code:
U11260
Price:
$1,295.00 excl GST
Stock Level:
Currently in Stock
Get a Fast Quote
Add to Favourites

Now with single pulse MIG, the Unimig VIPER Multi 185 MIG/TIG/STICK Welder (U11260) is the perfect multi-process machine for all those home repairs and hobby projects you've got planned.

  • Single pulse MIG programs & high-frequency DC TIG
  • MIG Smart-Set weld modes for complete synergic setups
  • 10 amp plug, so you can use it with any domestic outlet


FEATURES

Single Pulse MIG
A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. The addition of a base current and reduction in heat means it’s perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time.

4.3" Colour LCD Interface
Change settings with ease with the intuitive controls and next-generation user interface.

High-Frequency DC TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.

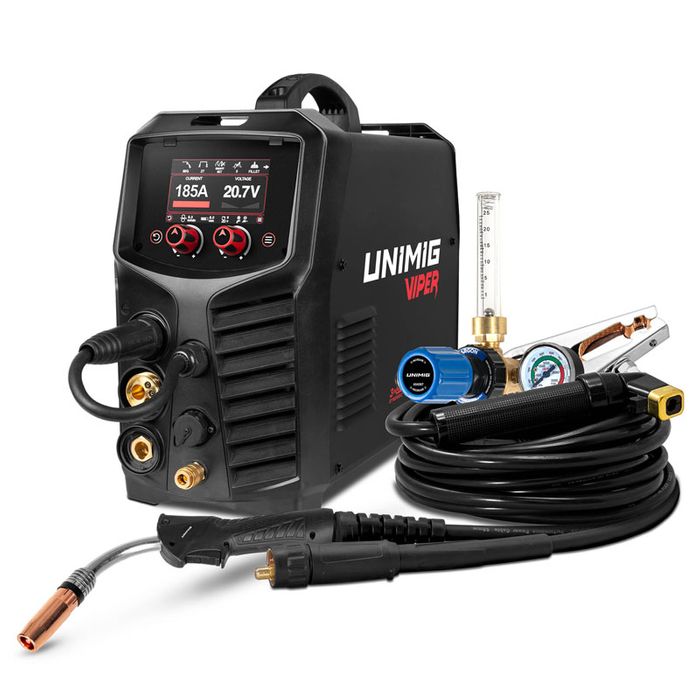

IN THE BOX

  • Unimig VIPER MULTI 185 Welder
  • 3m M26 MIG Torch
  • 3m Twist Lock Electrode Holder
  • 3m 300 Amp Earth Clamp & Lead
  • Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • 9-to-9 Pin TIG Torch Adapter
  • 0.8-0.9mm V Groove Roller
  • 0.8-0.9mm F Groove Roller
  • 1.0-1.2mm U Groove Roller
  • Operating Manual

MACHINE SPECIFICATIONS

TECHNICAL DATA

SKU: U11260
Primary Input Voltage: 240V Single Phase 50/60Hz
Supply Plug: 10A
Ieff (A): 10.0
Imax (A): 31.0
Rated Output: 20-185A
No Load Voltage (V): 67.0
Protection Class: IP21S
Insulation Class: H
Minimum Generator (kVA): 10
Dinse Connector: 35/50
Standard: AS 60974.1
Welds: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron | TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
Warranty (Years): 3

MIG SPECIFICATIONS

MIG Welding Current Range: 30-185A
MIG Duty Cycle @ 40°C: 10% @ 185A, 60% @ 77A, 100% @ 60A
MIG Wire Size Range: 0.6-1.0mm
MIG Wire Spool Size: 1kg (100mm) / 5kg (200mm)
MIG Welding Thickness Range: 1-10mm
Drive Roller Size: 30/22

TIG SPECIFICATIONS

TIG Function Type: DC High-Frequency TIG
TIG Welding Current Range: 20-185A
TIG Duty Cycle @ 40°C: 10% @ 185A, 60% @ 77A, 100% @ 60A
TIG Welding Thickness Range: 1-6mm

MMA SPECIFICATIONS

STICK Welding Current Range: 20-180A
STICK Duty Cycle @ 40°C: 10% @ 180A, 60% @ 75A, 100% @ 60A
STICK Electrode Range: 2.5-4.0mm
STICK Welding Thickness Range: 2-10mm

SIZE & WEIGHT

Dimensions (mm): 523 x 214 x 388mm
Weight (kg): 13.5kg

Downloads

Details

  • Brand:
    Unimig
  • Unit/Pack:
    EA
