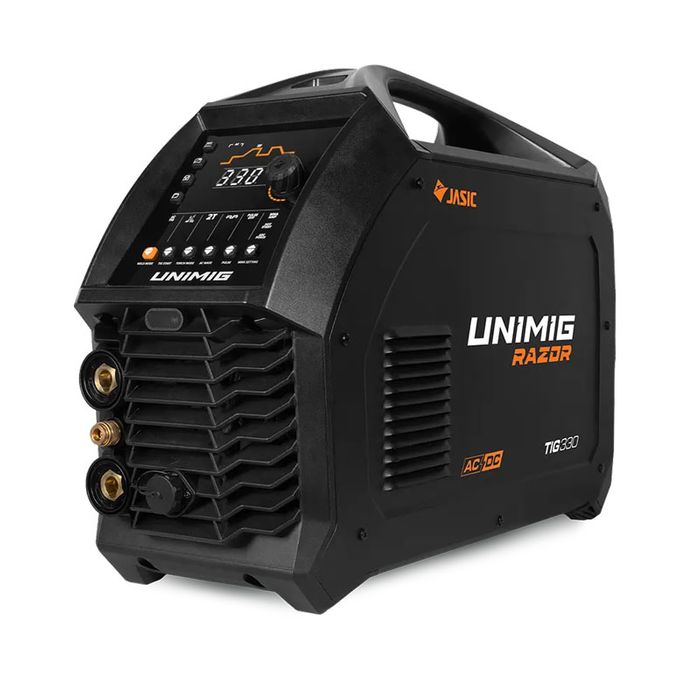

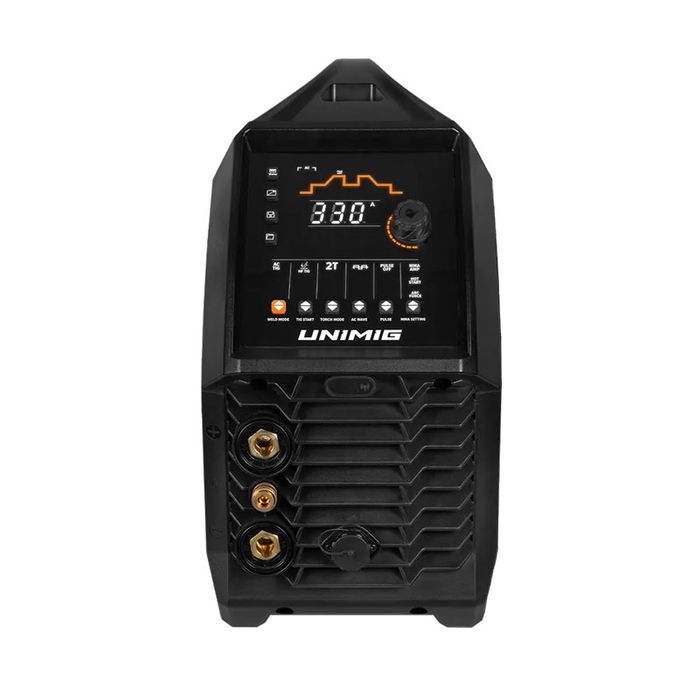

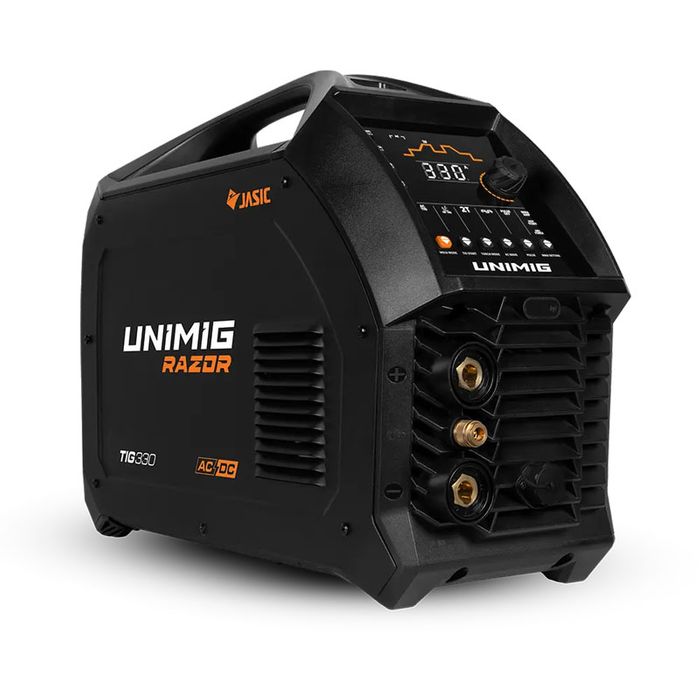

Unimig RAZOR TIG 330 AC/DC Welder
Get incredible results from start to finish with the Unimig RAZOR TIG 330 AC/DC Welder (U11021), designed for high-end fabrication, and marine and industrial engineering situations.
- Effortlessly weld any metal with the high-frequency AC/DC TIG
- The ultimate combination of AC and DC with mixed arc settings
- Switch your AC welds to suit your needs with the choice of three waveforms

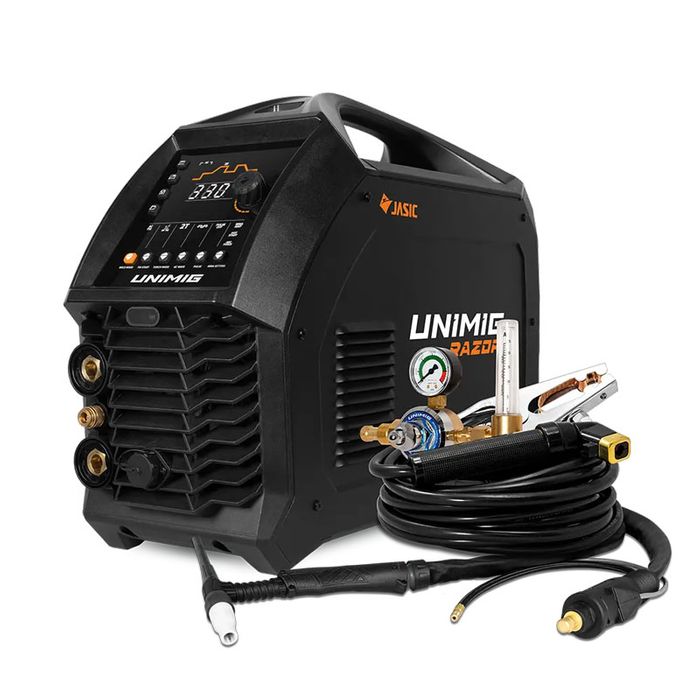

PACKAGE INCLUDES
- Unimig RAZOR TIG 330 AC/DC Welder (U11021)
- 4m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 2.5m Gas Hose with fittings
- Operating Manual
KEY FEATURES
High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Lift Arc Start TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
Water Cooler Compatible
Get greater performance on every weld. Connect the water cooler unit to remove excessive heat, extending the weld time and the life of your consumables. When combined with the T3W Water-Cooled TIG Torch, which uses Bi-Flow™ Technology, you get greater performance from the TIG torch.
Job Memory
The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 40 jobs can be memorised and stored for recall.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend a 20kVA for this machine.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
415V Three-Phase
SUPPLY PLUG
Unplugged (32A recommended)
IEFF (A)
10.0
IMAX (A)
17.6
OPEN CIRCUIT VOLTAGE (OCV)
71.0
OPEN CIRCUIT VOLTAGE WITH VRD ACTIVE (V)
9.5
PROTECTION CLASS
IP23S
INSULATION CLASS
H
MINIMUM GENERATOR (KVA)
20.0
DINSE CONNECTOR
35/50
STANDARD
AS 60974.1
WARRANTY
5 Years
WEIGHT (KG)
23.80
DIMENSIONS (L x W x H)
568 x 230 x 416MM
SUITABLE MATERIALS
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG SPECIFICATIONS
TIG IGNITION TYPE
AC/DC High-Frequency
AC/DC Lift Arc
TIG CURRENT RANGE
10-330A
TIG DUTY CYCLE @ 40°C
30% @ 330A
60% @ 233A
100% @ 181A
TIG WELDING THICKNESS RANGE
1-16mm
MMA SPECIFICATIONS
MMA CURRENT RANGE
10-270A
MMA DUTY CYCLE @ 40°C
30% @ 270A
60% @ 190A
100% @ 148A
MMA ELECTRODE RANGE
2.5-4.0mm
MMA WELDING THICKNESS RANGE
2-16mm
Downloads
Details
-
Brand:Unimig
-
Unit/Pack:EA
