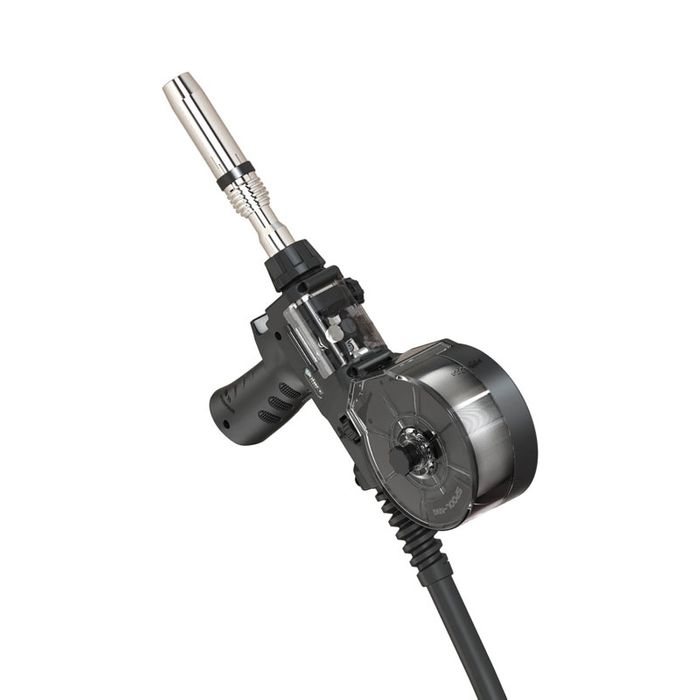

Unimig 220A Spool Gun U11240 - 6.0m

Stock Code:
U11240
Price:
$830.50 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites


The Binzel Style 220A Spool Gun U11240 has been engineered for maximum performance when MIG welding softer wires.

  • 220A output will weld as thick as 1.2mm wires
  • Weld softer wires like aluminium with ease
  • Get the ultimate heat and abrasion resistance, plus flexibility, with the Duraflex performance cable
  • Suited for use with Unimig ENVY Multi range

FEATURES

0.8-1.2mm Wire Size
Weld across almost the entire range of wire sizes with the spool gun, from as thin as 0.8mm to as thick as 1.2mm.

220A Output
Perform effortlessly on every weld. With a rated output of up to 220 amps, the spool gun delivers superior performance.

1000+ Hours of Motor Life
Engineered to last as long as your welder, the spool gun’s motor has over 1000 hours of run time.

Duraflex Performance Cable
Get ultimate cable flexibility and the highest heat and abrasion resistance. The outer cable jacket is constructed from cross-link polymers, providing a tear-proof layer with a burn threshold of 375°C.

Rear Cable Support
The extra-durable cable support system keeps your torch housing protected and intact no matter what angle the torch lead is bent at, improving wire-feeding consistency.

SPECIFICATIONS

COOLING METHOD
Air-Cooled

MAXIMUM OUTPUT
220A

DUTY CYCLE @ 40°C - CO²
60% @ 220A

DUTY CYCLE @ 40°C - MIXED GAS
60% @ 200A

WIRE SIZE
0.8-1.2mm

LENGTHS (M)
6

MINIMUM MOTOR LIFE (HOURS)
1420

STANDARD
EN 60974-7

Downloads

Details

  • Brand:
    Unimig
  • Web Type:
    Unimig MIG Torches
  • Unit/Pack:
    EA
