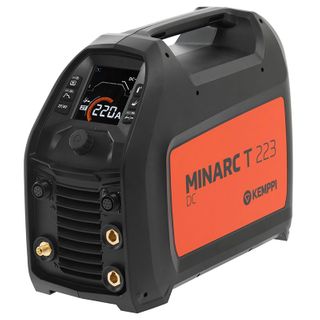

Kemppi Minarc T 223 DC MLP Portable TIG Welder

Stock Code:
MIT223DCMLPGMAU
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites


The Kemppi Minarc T 223 DC MLP Portable TIG Welder is a portable, small, yet mighty TIG welding machine designed for welders on the go. With a powerful output of 220 amps, this portable welding machine delivers precise DC TIG and MMA performance and is protected with a durable and stylish molded casing. Kemppi's professionals design, engineer, build, and test every Minarc T DC TIG welding power source in Finland, ensuring reliable Finnish welding quality for every weld.

This multi-voltage TIG welder is perfect for industrial workshops and site welding applications. It uses PFC technology for energy-efficient operation. Standard features include pre- and post-flow gas control, slope time regulation, memory channels, and power adjustments that can be made using optional remote controls.

This model also offers a pulse function and 'Minilog' control, which allows welders to select preset power levels during welding directly from the standard torch trigger switch.

Package comes with DC TIG power source, carrying strap, earth return cable, gas hose, and Flexlite TX welding TIG torch (available in 4m or 8m lengths).

FEATURES

  • DC TIG and MMA processes available
  • 220A DC @ 20% duty cycle, 1-phase, 220V-240V
  • Power-efficient PFC technology
  • HF and Lift ignition
  • Pulse option and Minilog (MLP models)
  • Lightweight and portable with 9.6kg
  • Refined ignition
  • Stable welding arc
  • Reliable Finnish quality
  • Four memory channels
  • Hand and foot-operated remote-control options
  • Color LCD for easy-to-use user interface
  • Pre and post-gas timer
  • Slope in/out timer



SPECIFICATIONS

Mains connection voltage: 230-240V ±10%
Mains connection voltage: (MV low range) 110-120V ±10%
Mains connection phases: 1~50/60Hz
Mains connection cable type: 3G, H07RN-F
Mains connection cable size: 1.5mm²
Maximum supply current [I1max]: 24A
Maximum supply current (@MV low range) [I1max]: 23A
Effective supply current [I1eff]: 15A
Effective supply current (@MV low range) [I1eff]: 15A
Rated maximum input power [S1max]: 5.5kVA
Mains fuse: 15A
Mains fuse (@MV low range): 15A
No-load voltage (MMA/TIG) [U0]: 107V
No-load voltage (MMA) [Ur]: 23V
No-load voltage (MMA) VRD [Ur VRD]: 23V
Open circuit voltage (MMA) [Uav]: 23V
Idle power: 10W
Output, duty cycle % at rated max. current, TIG: 20%
Output at +40 °C, rated max current, TIG: 220A
Output at +40 °C, 60% TIG: 170A
Output at +40 °C, 100% TIG: 140A
Output, duty cycle % at rated max. current, MMA: 25%
Output at +40 °C, rated max current, MMA: 170A
Output at +40 °C, 60% MMA: 140A
Output at +40 °C, 100% MMA: 120A
Output, duty cycle % at rated max. current, TIG (@MV low range): 20%
Output at +40 °C, rated max current, TIG (@MV low range): 130A
Output at +40 °C, 60% TIG (@MV low range): 110A
Output at +40 °C, 100% TIG (@MV low range): 90A
Output, duty cycle % at rated max. current, MMA (@MV low range): 20%
Output at +40 °C, rated max current, MMA (@MV low range): 75A
Output at +40 °C, 60% MMA (@MV low range): 70A
Output at +40 °C, 100% MMA (@MV low range): 60A
Output range, TIG: 5A / 8V ... 220A / 20V
Output range, MMA: 15A / 15V ... 170A / 34V
Output range, TIG (@MV low range): 5A / 8V ... 130A / 16V
Output range, MMA (@MV low range): 15A / 15V ... 75A / 31V
Power factor at rated maximum current [λ]: 1
Efficiency at rated maximum current [η]: 85%
EMC class: A
Stick electrode diameter: 1.6mm-4.0mm
Welding connection type: R1/4
Wired communication type: Analog
Arc striking voltage: 11kV
Operating temperature: -20°C - 40°C
Storage temperature: -40°C - 60°C
Recommended minimum generator power [Sgen]: 8kVA
Degree of protection (fully installed): IP23
External dimensions, length: 461mm
External dimensions, width: 202mm
External dimensions, height: 367mm
Weight without accessories: 9.6kg
Standards: EN IEC 60974-1, -3, -10, IEC 61000-3-12

Downloads

Details

  • Brand:
    Kemppi
  • Unit/Pack:
    EA
