Lincoln Aspect 300 ACDC TIG Water Cooled Welder Package 415V

Stock Code:
K12058-1WCPKG
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites


The Lincoln Aspect 300 is an industrial AC/DC TIG welding machine designed and manufactured using the latest inverter digital technology. This machine has been designed and built to perform in the most hazardous environments at high outputs: 300A at 35% duty cycle both in TIG AC and TIG DC application. The controller provides all the features you would expect from industrial AC/DC TIG inverter welding machines combined with a user-friendly front panel layout, setting advanced TIG parameters has never been so simple! Processes Stick DC, Stick AC, TIG DC, TIG AC, Lift TIG, TIG HF, TIG Pulse Applications Fabrication, Production, Shipbuilding, Construction Product Number K12058-1 OUTPUT

The top class features like the 2A minimum current, the multiple AC mode selection (including four different wave shapes), the optimized TIG start with adjustable electrode type and HF polarity, makes the unit the right choice to suit any application. It can be simply changed to water-cooled by adding the COOL ARC® 46 Water Cooler. A robust, stable and well equipped cart is available for easy movement of the unit.

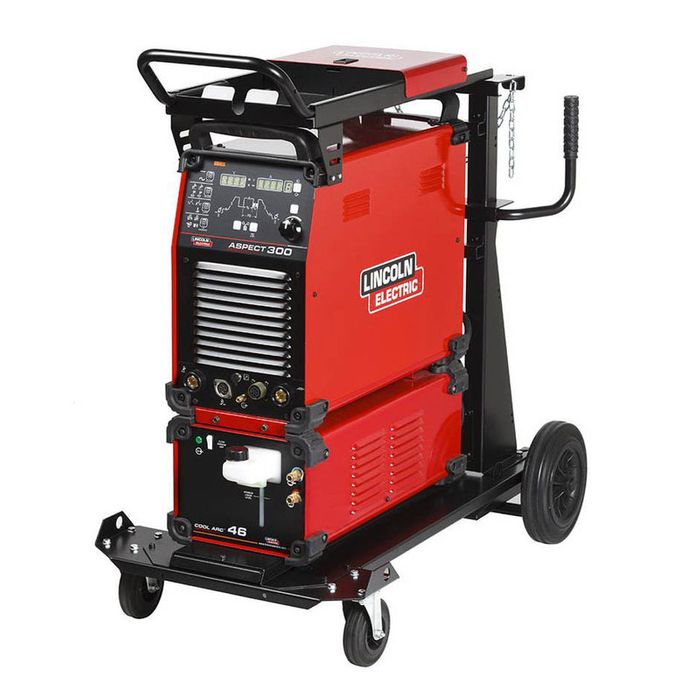

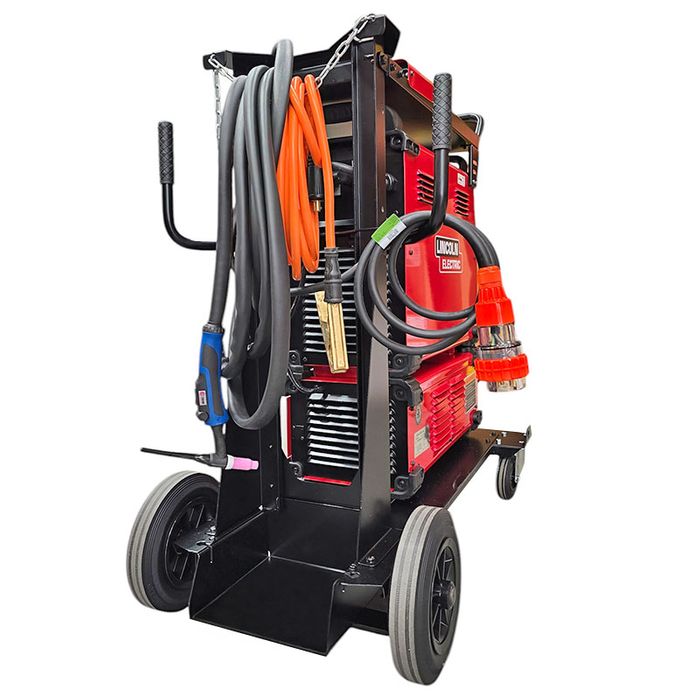

This complete package comes with a Lincoln Aspect 300 AC/DC TIG welding machine (K12058-1), Lincoln COOL ARC® 46 Water Cooler (K14105-1), Lincoln TPX Cart (K14129-1), 8 metre TIG torch, earth return lead, 32 Amp 415V plug and argon regulator.

FEATURES

  • Superb welding characteristics with TIG DC, TIG AC and Stick welding processes
  • Adjustable cleaning and penetration for perfect aluminium welding
  • Variable AC frequency (40-400Hz) for control of travel speed and penetration
  • Full function user-friendly control panel layout with graph and a numeric display make it easy to set all welding parameters
  • Rugged construction: electrical safety (IP23), potted PC boards and optimum airflow reduce contamination to extend the equipment’s life in the harshest environmental conditions
  • PFC (Power Factor Correction) advantages: 30% more output current with the same input current, suitable for 230-400V (+15%-10%) three phase, low current consumption, energy saving, low current harmonics and reduction of the total CO² produced by the welding process
  • With VRD for added safety to the welding operator
  • Water coolers and carts available

PROCESSES

STICK DC, STICK AC, TIG DC, TIG AC, Lift TIG, TIG HF and TIG Pulse

APPLICATIONS

Fabrication, Production, Shipbuilding and Construction

SPECIFICATIONS

Input Power: 230/400V/3Ph
Rated Output Current/Voltage/Duty Cycle: 300A/22V/35% | 200A/18V/100%
Fuse Size: 32/20
Output Range: 2-300
Protection/Insulation Class: IP23/H

Downloads

Details

  • Brand:
    Lincoln Electric
  • Unit/Pack:
    EA
