Bug-O K-BUG 2002 Dual Torch Digital Fillet Welder 240V

Stock Code:
KBUG-2002
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites

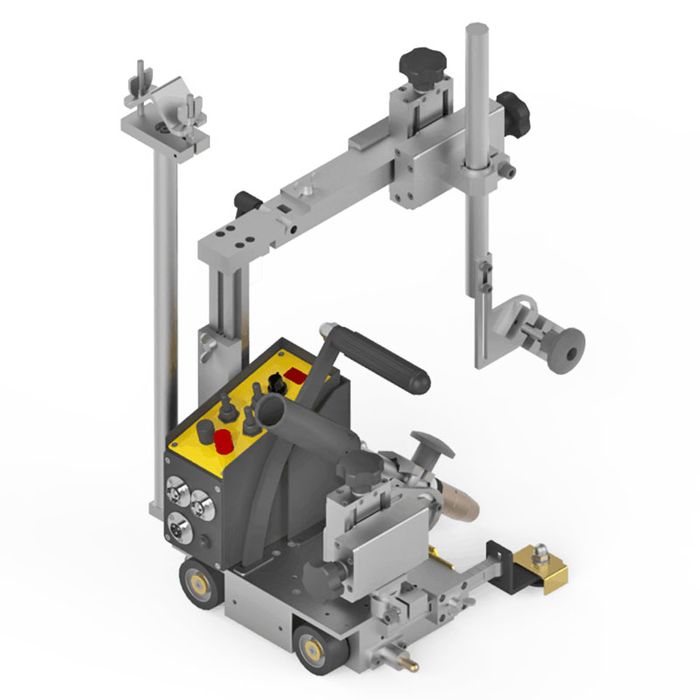

The Bug-O K-BUG 2002 Dual Torch Digital Fillet Welder is a portable straight-line travel carriage. It is designed to carry two welding guns at the same time to fillet weld both sides of a stiffener at the same time. It can hold straight barrel or gooseneck guns. By creating two continuous or intermittent “stitch” welds at a constant travel speed the K-BUG 2002 simultaneously produces high quality, uniform welds in a fraction of the time compared to manual welding. By taking the gun out of the operator’s hand there is less fatigue for the welder. No more starting and stopping for welds longer than 16 inches. When the K-BUG 2002 carries the torch, it provides uniform heat input and puts the right amount of weld in the right place. Regulated travel speed eliminates excessive weld deposition and helps reduce defects. Precise puddle control improves penetration and controls undercut. The machine’s guide wheels track the workpiece to provide precise, continuous weld placement.

The K-BUG 2002 includes a quick release gun clamp that allows you to set any torch angle you want. The handle is not only for carrying but is also a magnet release. When you pull back on the handle it releases the magnetism to allow for easy positioning.

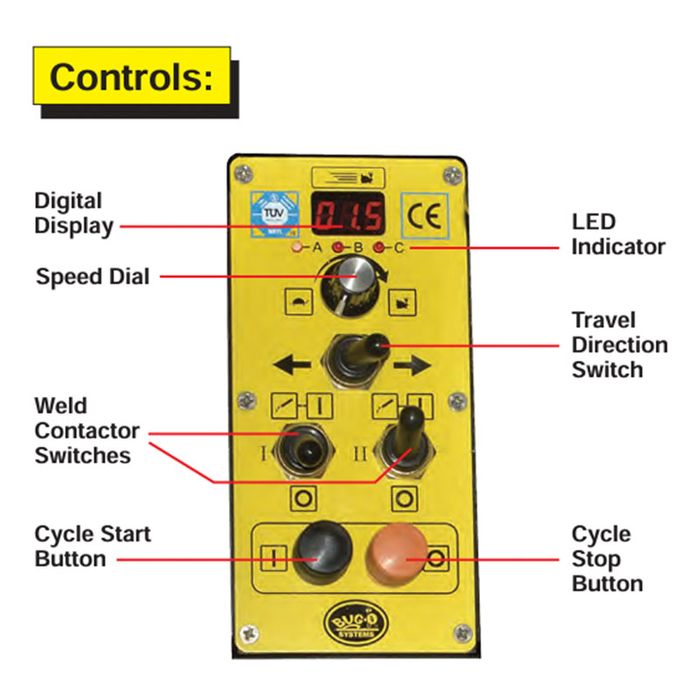

The machine controls are quite simple: cycle start button, cycle stop button, initiation switches for the two weld contacts so that you can weld with one or two guns, a travel direction switch and the speed control dial, which also doubles as a selector dial when setting the background parameters. The digital speed display numerically shows real-time travel speed in in/min. (cm/min). It also displays parameters during setup of intermittent function and time settings.



FEATURES

A magnetic travel carriage for welding continuous or stitch welds in the horizontal position.

  • State of the art digital technology ensures accuracy
  • High torque, low inertia motor for precise stops and starts
  • Drive motor overload protection
  • Lightweight carriage with powerful permanent magnets to grip work piece
  • Guide wheels track web or flange of work piece
  • Closed loop speed control provides adjustable and repeatable control
  • Stores travel settings after power is turned off
  • Crater fill at the beginning and end of welding
  • Two (2) Weld Contactor Enable switches to independently activate each welding torch
  • Carriage Travel and arc start in one switch
  • Built-in Limit Switches stop tractor travel and welding when activated
  • Will climb up a 75° incline
  • Digital programming of weld length, skip length and total travel distance

SPECIFICATIONS

Power: 240V/50-60Hz/1Ph
Welding Position: Flat “down hand” position
Pulling Power: 5kg
Torch Holder: Fits barrels up to 19mm diameter
Travel Speed: 0.1-95cm/min

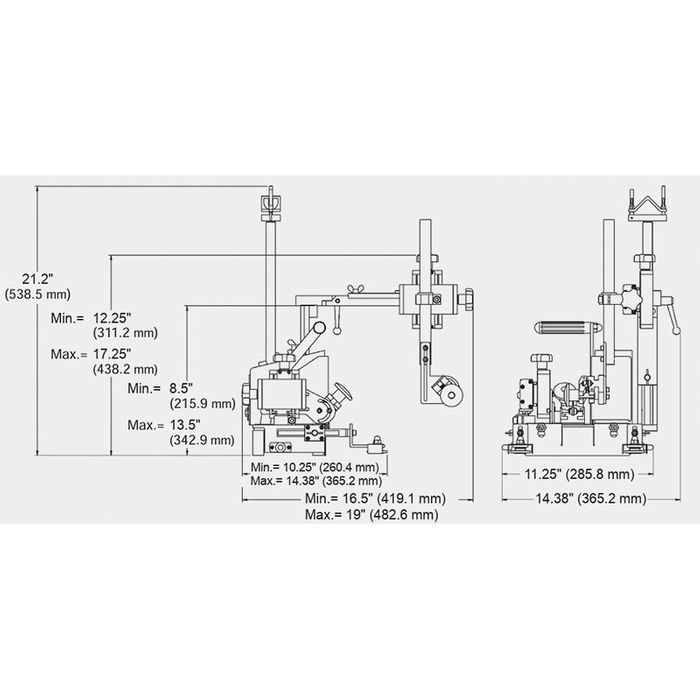

Max Stiffener Height: 300mm
Shipping Dimensions: 508 x 483 x 381mm
Shipping Weight: 13kg
Net Weight: 10.5kg
