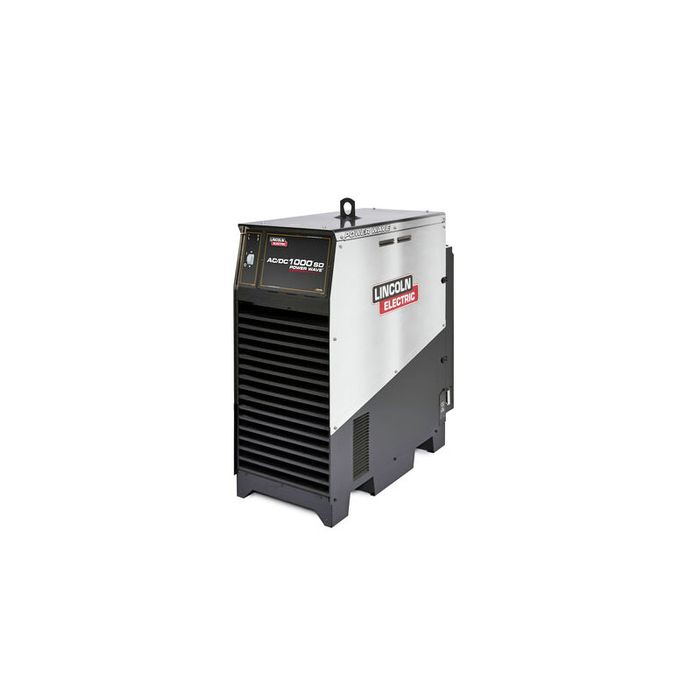

Lincoln Power Wave AC/DC 1000SD Submerged Arc Welder

Stock Code:
K2803-1
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites


The Lincoln Power Wave AC/DC 1000SD delivers Waveform Control Technology® to submerged arc welding. Choose constant current or constant voltage operation and set variable frequency and amplitude. Software-driven AC, DC positive or DC negative output allows for advanced control over deposition rate and penetration leading to increased weld speeds, consistently higher quality welds and improved efficiency in both single or multi-arc configurations.


FEATURES

  • Automatic Polarity Switching - No hardware reconfiguration required.
  • Simple Multi-Arc Configuration - Synchronize multiple arcs or parralel machines for maximum productivity
  • Advanced Connectivity - All Power Wave® systems come standard with access to Lincoln Electric Power Wave® Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
  • Proven Severe Duty Reliability - IP23 rated to withstand harsh environments.
  • 380 - 575 VAC, 50/60Hz Voltage Input - Offers glabal compatibility.
  • Input Voltage Compensation - Provides reliable and consistent operation over ± 10% input voltage variation.
  • 95% Power Factor Correction - Energy efficient design results in substantial energy cost savings compared to traditional transformer based equipment.
  • True Energy™ - Measures, calculates and displays instantaneous energy in the weld for critical heat input calculations.
  • 115V (10A) AC Duplex Auxiliary Power Receptacle - Features Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
  • Factory Burn-In Tested - At maximum output for 2 hours to ensure quality and reliability.
  • Control panels: MAXsa® 10 / PILOT PRO

TYPICAL APPLICATIONS

Construction, Mining, Construction & Field Erection, Dissimilar Metals, Elevated Temperature Piping, Heat Exchangers, Heavy Equipment, Heavy Fabrication, High Pressure Piping, High Temperature, High-strength Pipe, LPG & LNG Storage Vessels, Marine Applications, Marine Fabrication & Repair, NACE Applications, Offshore, Oil & Gas, Petrochemical, Petrochemical Industry, Petroleum Processing, Pipeline & Offshore, Power Generation, Power Plants, Pressure Vessels, Process Piping, Railcar Fabrication, Robotics/ Hard Automation, Shipbuilding, Structural Fabrication and Structural Welding.

SPECIFICATIONS

Machines Processes: Submerged Arc (SAW)
Output Range: 100-1000A
Polarity: AC/DC
Data Technologies: Ethernet
Machines Communication Technology: ArcLink
Dimensions (H x W x D): 1250mm x 488mm x 1174mm
Net Weight: 367.4kg
Warranty: 5 Years

Details

  • Brand:
    Lincoln Electric
  • Unit/Pack:
    EA
