3M Speedglas G5-03NC Pro Welding Helmet

Stock Code:
631810
Price:
$462.20 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

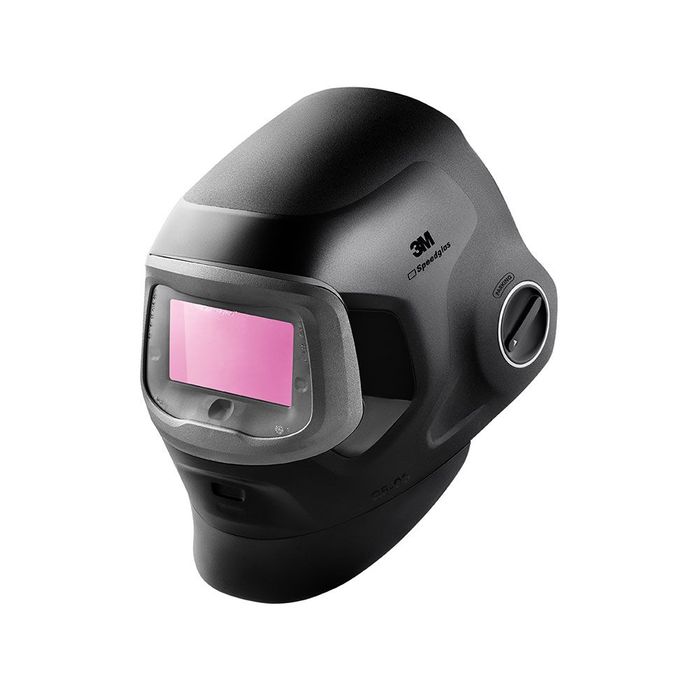

The ALL-NEW 3M Speedglas G5-03 NC Pro Welding Helmet features state-of-the-art TrueView optics for a more realistic view of the weld (shades 3/5, 8-12), shade 5 SideWindows for enhanced peripheral vision and an upgraded extra comfort head harness. The G5-03NC Pro is also compatible with a range of optional extras including configurable head and neck covers.

PRODUCT FEATURES

Swedish Quality
Every Speedglas welding helmet is made in Sweden, with each auto-darkening filter individually inspected by hand.

Expansive Viewing Area
Featuring a large 55 x 107mm viewing area combined with SideWindows for peripheral vision, the G5-03NC Pro Welding Helmet provides greater views of your surroundings.

Ergonomic and Adaptable
The new G5-03 Pro headband establishes a new standard for comfort and ergonomics. The advanced harness evenly distributes weight, avoids pressure on sensitive areas, and can be fully customised to fit your head. Additionally, the extra-large back pad provides exceptional comfort.

Speedglas SideWindows for Welding Safety
Previously hidden peripheral hazards (beams, obstacles and other workers) are now visible through two, shade 5 side lenses (conventional shade 12 protection).

Lock into Cut and Grind Modes
Dedicated modes allow you to lock the welding lens into its light state (shade 3) for grinding applications, or shade 5 for cutting applications.

Enhanced Welding Vision
Speedglas True-View has literally changed the way welders see, making what you see through the lens appear lighter, more detailed and colourful.

Powerful Arc Detection
The G5-03NC welding lens sensors are capable of detecting a welding arc down to an industry-leading 1 amp, with a centre sensor for TIG welding applications.

Welding Task Light
An optional helmet-mounted task light is available, allowing you to light up your workspace. The lightweight battery-powered light is designed to cast a wide light, with configurable light intensity.

All Welding Applications with Multiple Modes
With shades 3, 5, 8-12 and multiple mode settings you can weld, grind, cut and tack, indoors and outdoors even with a completely hidden arc.

Extend your Welding Coverage
A range of additional head and neck covers are available to protect against sparks and splatter, giving you customisable welding protection to suit your needs.

Australian & New Zealand Standards Compliant
Complies with Australian & New Zealand standards for high impact face protection (AS/NZS1337.1) and eye protection (AS/NZS1338.1).

SPECIFICATIONS

Relevant Welding Helmet Standards: Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact)
Speedglas TrueView Welding Lens: Yes
Variable Colour Technology: No
STICK Welding: Yes
MIG Welding: Yes
TIG Welding: Yes (industry leading detection down to 1 Amp)
Grinding Feature: Grind Mode
Memory Mode (Set-and-Forget): No
SideWindow Peripheral Vision: Yes
Hidden Arc Mode: Yes
Welding Lens Viewing area: 55 x 107mm + SideWindows
Variable Dark Shades: Shade 5, 8-12
Light State: TrueView Shade 3
UV Protection: Shade 12 (permanent)
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 40-470 ms
Bluetooth Enabled: No
Optional Task Light: Yes
Comfort Exhaust Vents: No
Head Harness: New G5-03 Pro Head Harness
Safety Helmet: No
Required minimum protection factor: N/A
Air flow Level: N/A
Adjustable Air Control: No
Adflo Battery Run Time: N/A
Adflo Battery Charge Time: N/A
Welding Helmet Model: Speedglas G5-03 Pro

Downloads

Details

  • Brand:
    Speedglas
  • Web Type:
    Speedglas Helmets
  • Unit/Pack:
    EA
