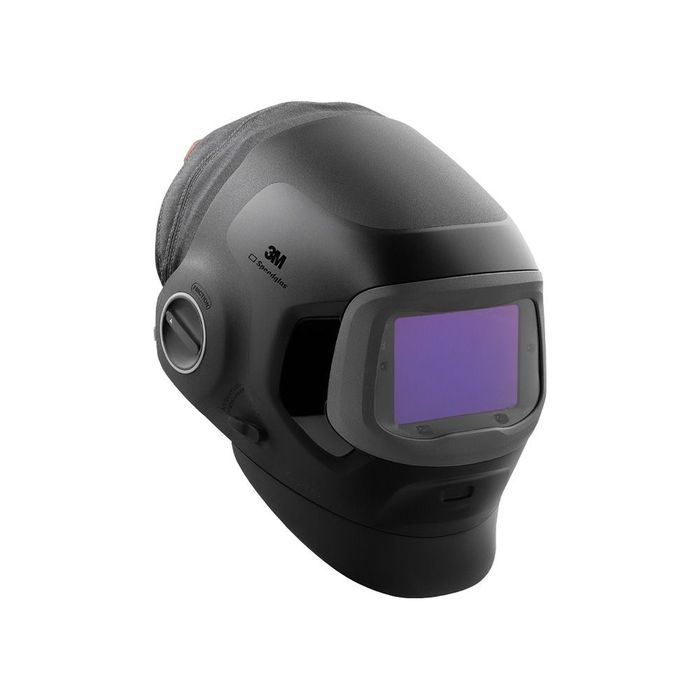

3M Speedglas G5-03 VC Pro Air Upgrade Kit
The 3M Speedglas G5-03 VC Pro Air Welding Helmet Upgrade Kit allows current Adflo PAPR users to cost-effectively upgrade to new Speedglas G5-03 technology, including new TAP functionality, True-View, Shades 3/5, 8-14, Bluetooth connectivity, configurable coverage, and an optional helmet-mounted task light.
PRODUCT FEATURES
Upgrade to Variable Colour, TAP Technology, True-View, and more!
Current Adflo users can now access Speedglas G5-03 features by simply upgrading their headtop. Connect the new G5-03VC helmet to your existing Adflo PAPR and enjoy Variable Colour, True-View, Climate Control, and brand new TAP technology! Each upgrade kit is comprised of the helmet and lens.
Climate Control
The two levers on either side of your Speedglas G5-03 helmet will allow you to adjust the amount and direction of the airflow within your welding helmet to meet your exact preference; all while keeping your welding helmet on, and your eye, face, and respiratory protection in place.
Effective Welding Fume Protection
A comfortable, secure face seal follows the contours of the helmet and face to form an effective positive pressure respiratory seal within the G5-03 Pro Air welding helmet. Filtered air is then evenly distributed throughout the breathing zone via the helmet's unique airflow pattern.
Exclusive Speedglas TAP Technology
Speedglas G5-03 VC delivers all-new TAP technology to allow seamless switching between weld, cut, and grind modes by tapping the outside of your welding helmet. This allows you to cycle between modes without removing your helmet and compromising your protection.
Variable Colour in the Dark State
Designed for better contrast for your welds and comfort for your eyes, the G5-03VC welding lens lets you choose the optimal colour tone for your dark state. Select cool, warm, or natural tones based on your specific preference.
Working at High Amperages?
For high amp welding in hard wearing environments, the Speedglas G5-03 VC auto-darkening lens has an extra dark shade 14 tailor-made for heavy-duty applications.
Bluetooth® Lens Technology
With the 3M Connected Equipment app, welders can pair their G5-03 welding helmet lens to their smart phone to remotely switch between dark shades, variable colour tones, and program their preferred settings as memory modes.
Huge Viewing Area with SideWindows
With the G5-03VC welding lens, welders can enjoy a massive 73 x 109mm viewing area. What's more, previously hidden peripheral hazards like beams, obstacles, and other workers are clearly visible through two shade 5 SideWindows.
Configurable Head Harness
Personalise the fit of your G5-03 Pro welding helmet with its fully adjustable head harness. To limit duress over long shifts, this harness evenly distributes weight across the head to avoid pressure points. Additional support is offered by an extra-large back pad at the rear of the harness.
Weld, Cut, Grind & Tack
Each G5-03 VC lens can adapt to all common welding applications including MIG/MAG, MMAW, and TIG welding. With a light shade of 3 and dark shades 5, 8-14, the lens also features a new TAP function that allows you to easily switch settings by simply tapping the outside of the helmet.
Experience True-View Optics
Speedglas True View provides exceptional optical quality and clarity, allowing a wider spectrum of colours to pass through the welding lens for a lighter, brighter, and more realistic view.
1 Amp Arc Detection
The G5-03 VC welding lens includes powerful photo sensors capable of detecting a welding arc as low as 1 amp, as well as reliable switching between modes. Auto-On ensures your helmet is instantly ready to weld at your last used settings as soon as you pick it up.
Task Light Built for Welding
Powered by the Adflo PAPR battery, the optional helmet-mounted task light available with the Speedglas G5-03 has been designed to cast a wide light for welders working in low-light conditions.
Upgraded Head & Neck Coverage
Depending on the application and environment, you may feel the need to extend your head and neck protection. To that end, the G5-03 Pro Air is compatible with a range of leather and fabric head and neck covers built to resist splatter and sparks.
AS/NZS Compliant
The Australian and New Zealand Standards for respiratory protection (AS/NZS1716), high impact face protection (AS/NZS1337.1), and eye protection (AS/NZS1338.1) are all met by Speedglas G5-03.
Welding Protection Made in Sweden
Boasting industry-leading features and reliability, Speedglas welding helmets and auto-darkening lenses are crafted in Sweden.
SPECIFICATIONS
Relevant Welding Helmet Standards: Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact), Respiratory Protection - AS/NZS1716
Speedglas TrueView Welding Lens: Yes
Variable Colour Technology: Yes
STICK Welding: Yes
MIG Welding: Yes
TIG Welding: Yes (industry leading detection down to 1 Amp)
Grinding Feature: TAP Technology (shade 3)
Memory Mode (Set-and-Forget): Yes
SideWindow Peripheral Vision: Yes
Hidden Arc Mode: Yes
Welding Lens Viewing area: 73 x 109mm + SideWindows
Variable Dark Shades: Shade 5, 8-14
Light State: TrueView Shade 3
UV Protection: Shade 14 (permanent)
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 50-1300 ms
Bluetooth Enabled: Yes
Optional Task Light: Yes
Comfort Exhaust Vents: No (positive pressure seal)
Head Harness: New G5-03 Pro Head Harness
Safety Helmet: No
Required minimum protection factor: 50 Powered Air / 100+ Supplied Air (When connected to the Adflo or V-500E)
Air flow Level: 170 & 200 l/min powered air // 170 & 305 l/min supplied air (When connected to the Adflo or V-500E)
Adjustable Air Control: Yes
Adflo Battery Run Time: N/A
Adflo Battery Charge Time: N/A
Welding Helmet Model: Speedglas G5-03 Pro Air
