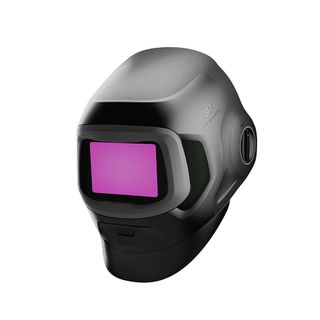

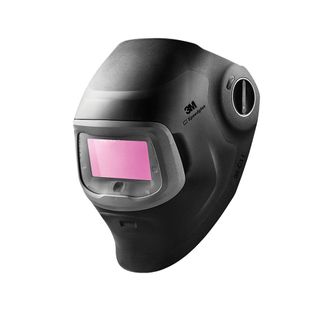

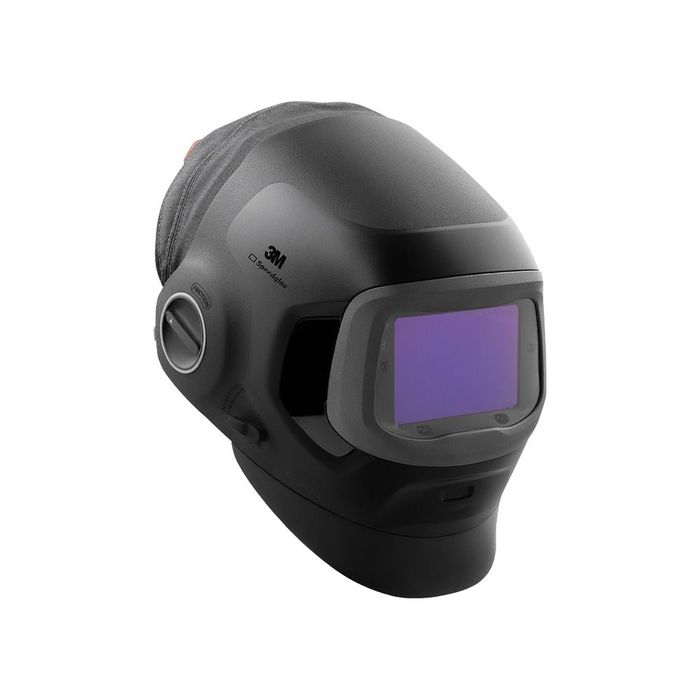

3M Speedglas G5-03 TW Pro Air Upgrade Kit
The 3M Speedglas G5-03 Pro Air TW Helmet Upgrade Kit allows existing 3M Adflo PAPR users to upgrade their welding helmet at a fraction of the cost. Simply attach the helmet to your existing Adflo PAPR and you can benefit from a suite of features including TAP technology, Climate Control, True-View, Shade 2.5 light state, and the options of extended head & neck coverage and a task light.
PRODUCT FEATURES
Upgrade to Speedglas G5-03 Pro Air with TAP Technology
Current Adflo customers can now enjoy the cutting edge Speedglas G5-03TW welding helmet, by simply upgrading their headtop. The Speedglas G5-03 TW helmet features new TAP functionality, True-View optics, an extra light shade 2.5 and airflow climate control. This kit features the headtop and lens, to connect to your existing Adflo PAPR unit.
Adjustable Helmet Airflow
An advanced helmet duct system allows the amount and direction of airflow within your G5-03 helmet to be customised for ultimate comfort in hot and humid welding environments. These adjustments can be made without removing your helmet and compromising your respiratory, face, and eye protection.
Comfortable Positive Pressure Face Seal
By following the contours of both your face and welding helmet, the G5-03 face seal creates a secure positive pressure seal to keep pollutants at bay. A constant flow of cool, clean air is delivered directly to the breathing zone of the welder, for maximum comfort and protection.
New TAP Function
In a world first, Speedglas G5-03 welding helmets offer TAP technology, enabling welders to easily switch between welding, grinding and cutting with just a tap of their helmet's exterior. This method of switching keeps eye, respiratory, and face protection intact, as the helmet can remain on at all times.
Super Bright Light State
An extra bright shade 2.5 light state enhances the effects of True-View technology, delivering the clearest optics during set-up, inspection and grinding. This clarity can also improve your welding, providing more realistic views of your weld pool and greater control over your arc.
Bluetooth® Enabled Lens
The G5-03TW lens is capable of Bluetooth® connectivity, so you can adjust your welding lens to our exact requirements from the palm of your hand. Adjust dark shades and pre-set your favourite modes via the 3M Connected Equipment app.
Larger 180 Degree Views
The G5-03TW welding lens boasts an expansive 73x109 mm viewing area, which when paired with the helmet's peripheral SideWindows results in one of the largest fixed front welding helmet viewing areas on the market.
Fully Customisable Head Harness
With a market leading 6 points of adjustment, dual comfort paddles, even weight distribution, and an added comfort pad, the Speedglas G5-03 Pro Air features the same top-of-the-line head harness as the G5-01, allowing welders to achieve their ideal fit.
Suits All Common Applications
With a light shade 2.5, dark shades 8-13, shade 5 cut mode, and TAP functionality for seamless switching, the G5-03TW welding lens is suitable for all common welding applications including MIG/MAG, MMAW, and TIG welding.
Legendary True-View Optics
Speedglas sets the benchmark for welding helmet optical quality with unparalleled True-View technology, now better than ever courtesy of an all-new extra light shade of 2.5.
Powerful Arc Detection
Capable of detecting a welding arc as low as 1 amp, the G5-03 TW lens also offers reliable light-dark switching. Auto-On technology activates the welding helmet as soon as you pick it up, restoring your most recently used lens settings.
Helmet Mounted Task Light Option
In welding environments where natural light is at a minimum, welders can benefit from an additional light source. To that end, an optional task light can be mounted to your G5-03 welding helmet, offering adjustable light intensity and even light distribution at a normal welding distance.
Extended Coverage Options
A versatile range of additional head and neck protectors are available with Speedglas G5-03 to safeguard against welding splatter and sparks. Large or small, fabric or leather... the choice is yours!
Australian & New Zealand Standard Compliance
The G5-03 Pro Air meets the relevant Australian & New Zealand Standards for eye protection (AS/NZS1338.1), respiratory protection (AS/NZS1716), and high impact face protection (AS/NZS1337.1) respectively.
Swedish Craftsmanship
Crafted in Sweden, Speedglas welding helmets offer industry-leading quality, with every auto-darkening lens still rigorously checked by hand.
SPECIFICATIONS
Relevant Welding Helmet Standards: Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact), Respiratory Protection - AS/NZS1716
Speedglas TrueView Welding Lens: Yes
Variable Colour Technology: No
STICK Welding: Yes
MIG Welding: Yes
TIG Welding: Yes (industry leading detection down to 1 Amp)
Grinding Feature: TAP Technology (shade 2.5)
Memory Mode (Set-and-Forget): Yes
SideWindow Peripheral Vision: Yes
Hidden Arc Mode: Yes
Welding Lens Viewing area: 73 x 109mm + SideWindows
Variable Dark Shades: Shade 5, 8-13
Light State: TrueView Shade 2.5
UV Protection: Shade 13 (permanent)
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 50-1300 ms
Bluetooth Enabled: Yes
Optional Task Light: Yes
Comfort Exhaust Vents: No (positive pressure seal)
Head Harness: New G5-03 Pro Head Harness
Safety Helmet: No
Required minimum protection factor: 50 (Powered Air) or 100+ (Supplied Air)
Air flow Level: 170 & 200 l/min powered air // 170 & 305 l/min supplied air (When connected to the Adflo or V-500E)
Adjustable Air Control: Yes
Adflo Battery Run Time: N/A
Adflo Battery Charge Time: N/A
Welding Helmet Model: Speedglas G5-03 Pro Air
