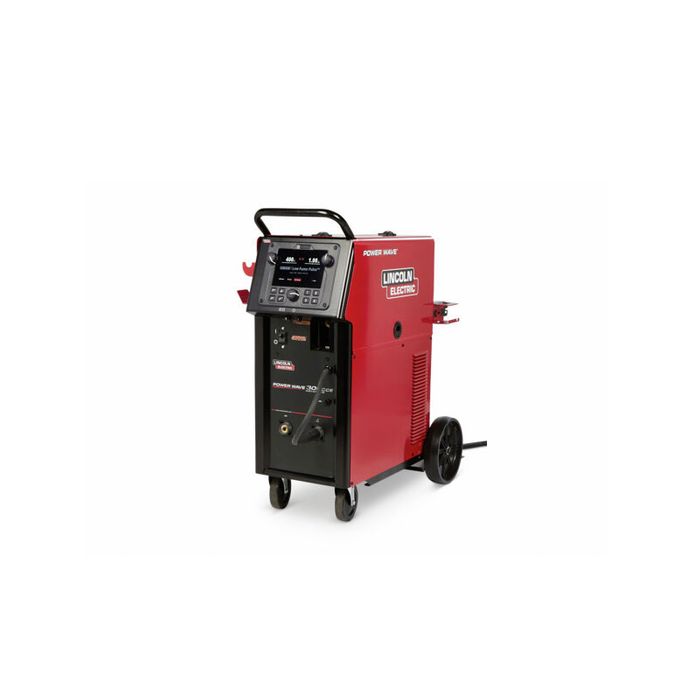

Lincoln Power Wave 300C Advanced CE

Stock Code:
K4490-2
Price:
$29,150.00 excl GST
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites


The Lincoln Power Wave® 300C Advanced CE Advanced Process Welder features best-in-class performance as the industry’s only true 300 Amp, 100% duty cycle, all-process machine and is packed with standard and advanced welding processes such as high frequency AC, STT®, Smart Pulse™ and Low Fume Pulse®.

WHAT'S INCLUDED

  • 4.5m Work Lead (K1803-3)
  • 0.9/1.2mm Combination V-Groove Drive Rolls (Included in Wire Drive Assembly) (KP1696-1)

FEATURES

  • Best-in-Class Performance - Industry’s only true 300 Amp, 100% Duty Cycle, All- Process Machine.
  • All-Process Versatility - SMAW, GTAW, GMAW, FCAW, CAG processes, with high-frequency and AC capabilities as well as access to advanced processes such STT®, Rapid X®and Low Fume Pulse®
  • Advanced Connectivity and Control - All Power Wave®systems come standard with access to Lincoln Electric Power Wave®Manager and Lincoln Electric Checkpoint®Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
  • Patented PowerConnect®Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
  • Tribrid®Power Module - Exceptional welding performance with high power factor and efficiency.
  • Ready-to-Run™ - Design features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and Twist-Mate™TIG connection and gas solenoid.
  • Smart Fan Operation - Only runs when needed to minimise noise and energy consumption.
  • Integrated 115V auxiliary power - Allows easy plug-in access for grinders and equipment or the Cool Arc 40 water cooler.

SPECIFICATIONS

MACHINE PROCESSES
Stick (SMAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Metal-cored Wire (GMAW-C)

IEC RATING
IP23

MAX RATING
350A

OUTPUT RANGE BY MODE
GMAW: 350A / 31.5 V/ 40%, GMAW: 300A / 29 V / 100%, SMAW: 325A / 33V / 40%, SMAW: 280A / 31.2V/100%, FCAW: 350A / 31.5 V/ 40%, FCAW: 300A / 29 V / 100%, GTAW: 325A / 23V / 40%, GTAW: 300A / 22V / 100%

DATA TECHNOLOGIES
Ethernet, Data Export Capable, USB

MACHINES COMMUNICATION TECHNOLOGY
ArcLink

WORK CABLE LENGTH
10ft

DIMENSIONS (H x W x D)
1008mm x 1006mm x 525mm

NET WEIGHT
102.5kg


BASIC SPECIFICATION

INPUT VOLTAGE
200-208/220-230/380-415/460/575V

INPUT CURRENT
40/25/20/15A

INPUT HERTZ
50/60Hz

INPUT POWER
200-208/220-230/380-415/460/575V/3/50/60

INPUT PHASE
3 Phase

MODE ICON
CC/CV

OUTPUT RANGE
5-350A

POLARITY
AC/DC

RATED OUTPUT
350A/31,5 V/40%, 300A/29 V/100%

TYPICAL APPLICATION
General Fabrication

WARRANTY
5 Years

Downloads

Details

  • Brand:
    Lincoln Electric
  • Unit/Pack:
    EA
