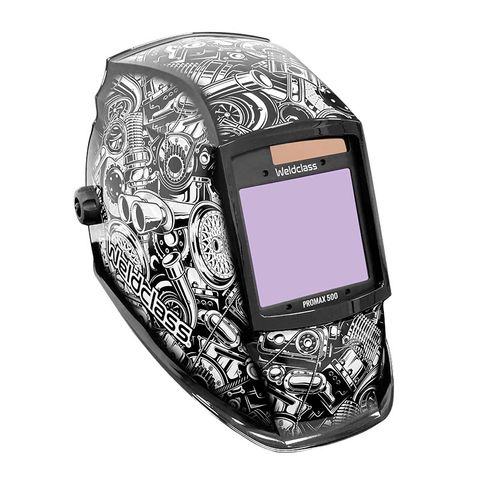

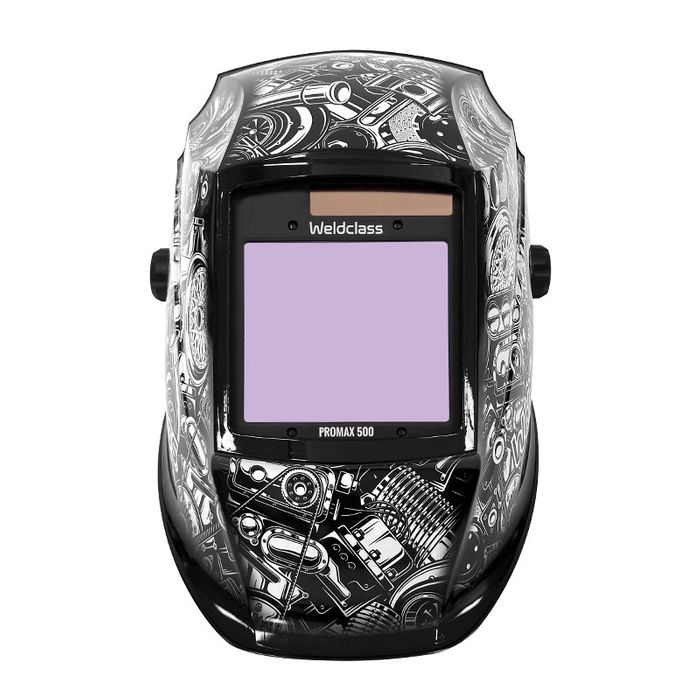

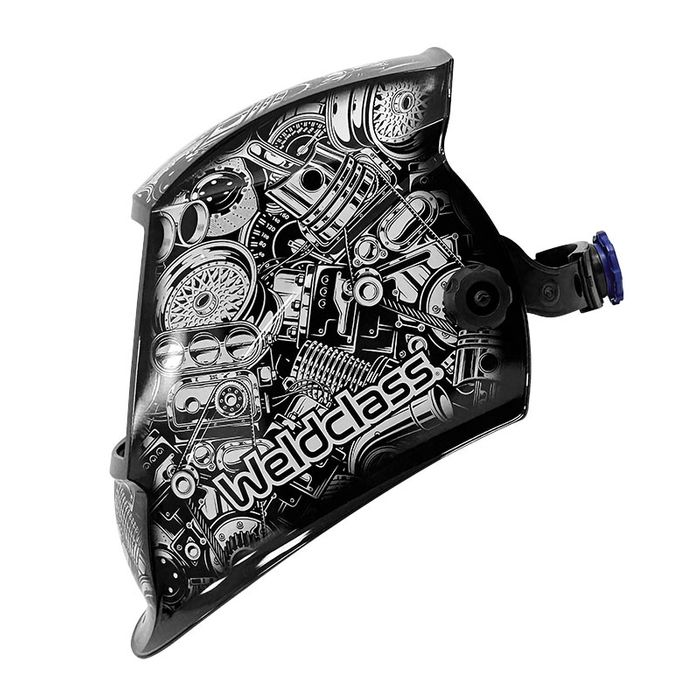

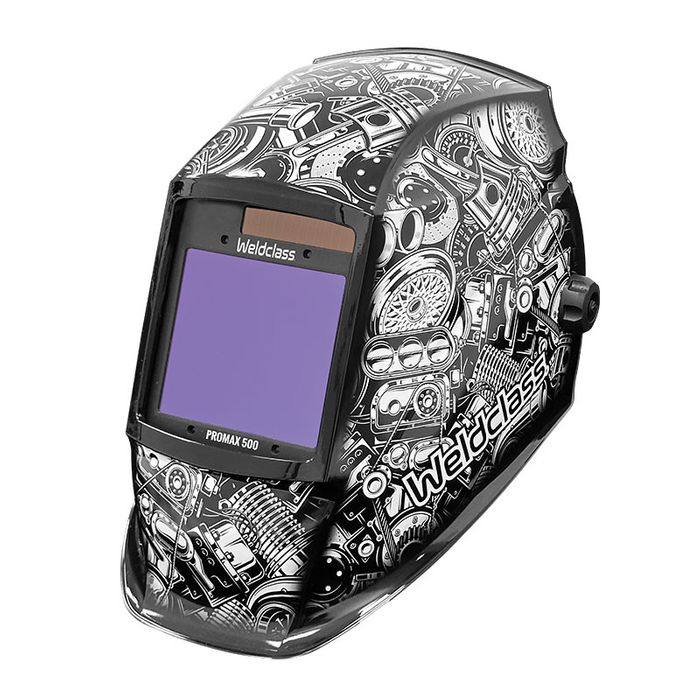

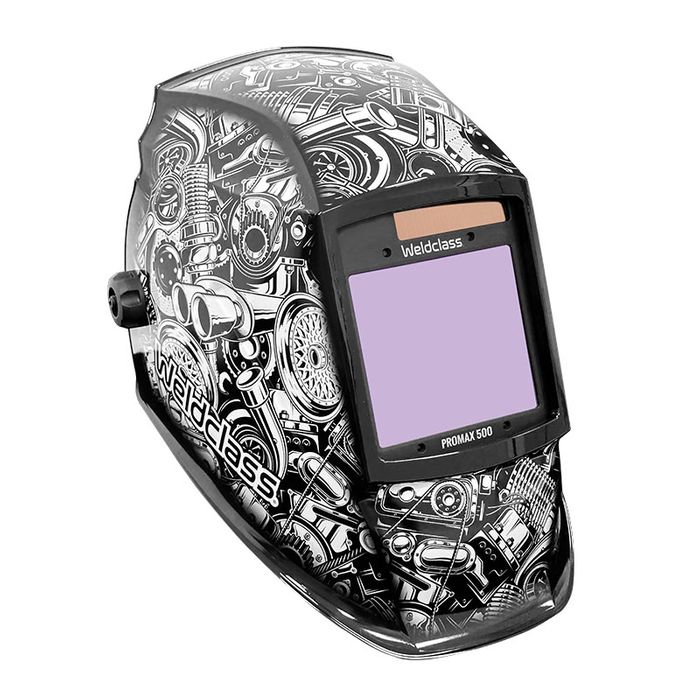

Weldclass Promax 500 Welding Helmet - Revhead Graphic

Stock Code:
7324
Price:
$315.90 excl GST
Special order item
Get a Fast Quote
Add to Favourites

Downloads

Description

The Weldclass Promax 500 Auto-Darkening Welding Helmet offers a super sized viewing area and fantastic value.

Promax 500 stand-out features include:
• Super-size viewing area: 98 x 87mm, with ultra-clear vision
• Dual shade range 5-8 / 9-13 plus grind mode to cover a wide range of welding processes
• 4 Arc Sensors for reliable arc detection & switching
• Light weight, comfortable & easy to use
• Auto-darkening lens complies with AS1338.1
• High-impact tested and rated to Australian standard AS1337.1
• 7-year warranty*

Functions:
• Welding mode: Variable shade 5-8 / 9-13
• Delay: Adjustable 0.1-1.0s (switching time from dark back to light after welding arc stops)
• Sensitivity: Adjustable low-high
• Grind mode: Locks lens to light mode (shade 4)

Suitable applications:
• MIG welding
• Stick welding
• TIG welding down to 5 amps
• Grinding
• Plasma Cutting
• Air-Arc Gouging

Specifications:
Switching Speed: Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
Arc Sensing: 4 Sensors
TIG Optimised: Yes. Suitable for low-amp TIG down to 5 amps
Power Supply: 1 x CR2450 replaceable battery & Solar assist
On / Off: Ready to use at any time, no switching required
Inactive Shade (Grind/Off): Shade 4
Active Shade (Weld): Dual range 5-8 / 9-13
Sensitivity: Low – High
Delay: 0.1 – 1.0 seconds
Grind Mode: Switchable On/Off
Weight: 560 grams
Viewing Area: 98 x 87mm
Magnification Lens Holder: Takes standard 108x51mm Magnification Lenses
Standards Compliance: Lens: AS1338.1, EN379, ANSI Z87.1, CSA Z94.3; Shell: AS/NZS1337.1 High Impact EN 175 B, ANSI Z87.1, CSA Z94.3
Optical Rating: 1/1/1 (Optical quality / Diffusion of light / Variation in luminous transmittance)
Warranty: Conditional 7 years (on auto darkening lens) - Visit Weldclass website for further details
Temperature Range: Operating -5 °C to +55 °C / Storage -10 to +65 °C

Details

  • Brand:
    Weldclass
  • Web Type:
    Weldclass Welding Helmets
  • Unit/Pack:
    EA
