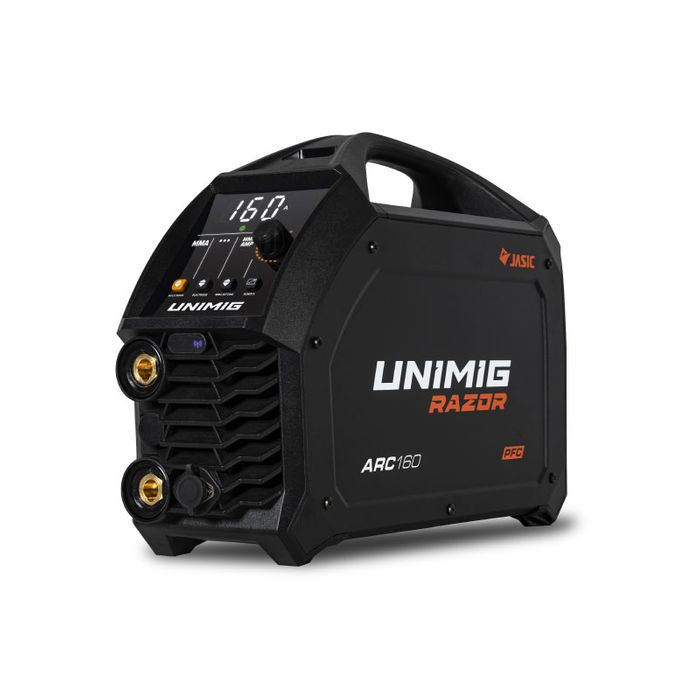

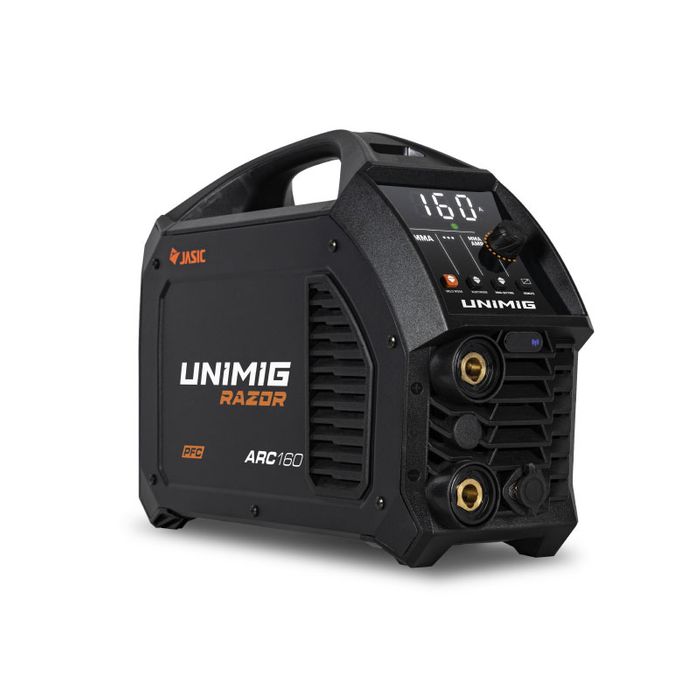

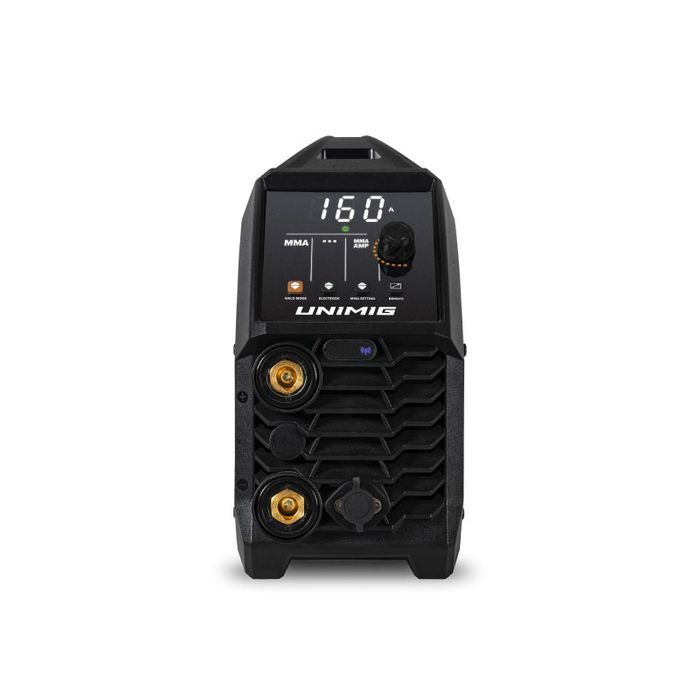

Unimig RAZOR ARC 160 PFC Stick Welder Mine Spec

Stock Code:
U13002K
Price:
$791.50 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Weighing at just 7.2kg, the Unimig RAZOR ARC 160 PFC Stick Welder is lightweight and portable and ready to go anywhere you need it.

It features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.

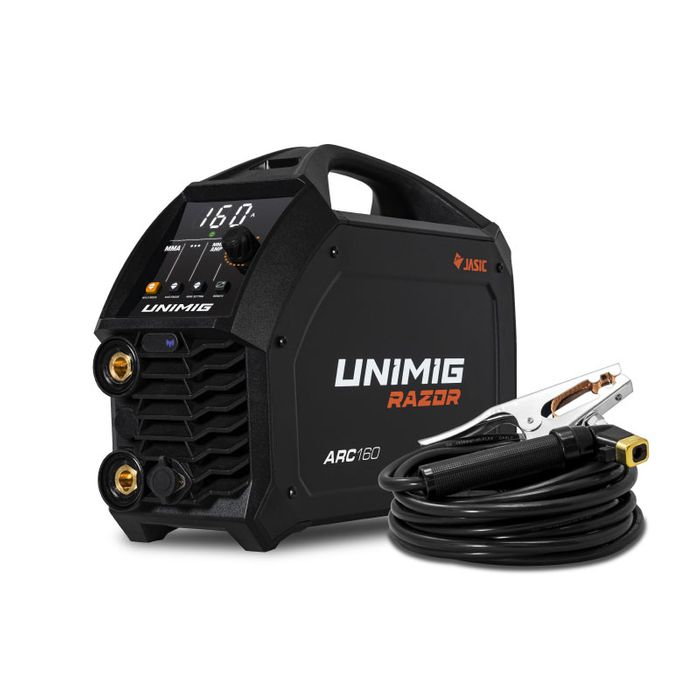

Package includes

• Unimig RAZOR ARC 160 PFC Stick Welder
• 4m Electrode Holder
• 4m 300 AMP Earth Clamp
• 10A Plug Fitted

Key Features

10A Plug
A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

DC Lift Arc TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.

Optional Remote Control
Upgrade your machine with a handy remote control. Both a wired and wireless controller are available.

Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.


Technical Data

Primary Input Voltage: 240V Single Phase
Supply Plug: 10 AMP
Ieff (A): 10
Rated Output: 20A/20.8V - 160A/26.4V
No Load Voltage (V): 78
Protection Class: IP23S
Insulation Class: H
Minimum Generator (kVA): 9.0
Dinse Connector: 35/50
Standard: AS/NZ60974-1
MMA Weld Material type: Mild Steel, Stainless Steel, Cast Iron
TIG Weld Material type: Mild Steel, Stainless Steel, Copper, Silicon Bronze
Warranty (Years): 5


STICK Specifications

STICK Welding Current Range: 20-160A
STICK Duty Cycle @ 40°C: 20% @ 160A; 60% @ 93A; 100% @ 72A
STICK Electrode Range: 2.5-4.0mm
STICK Welding Thickness Range: 2-10mm


TIG Specifications

TIG Function Type: DC Lift Arc
TIG Welding Current Range: 10-160A
TIG Duty Cycle @ 40°C: 35% @ 160A; 60% @ 123A; 100% @ 95A
TIG Welding Thickness Range: 1-6mm


Size & Weight

Dimensions (mm): 413 × 150 × 311mm
Weight (kg): 7.2kg
