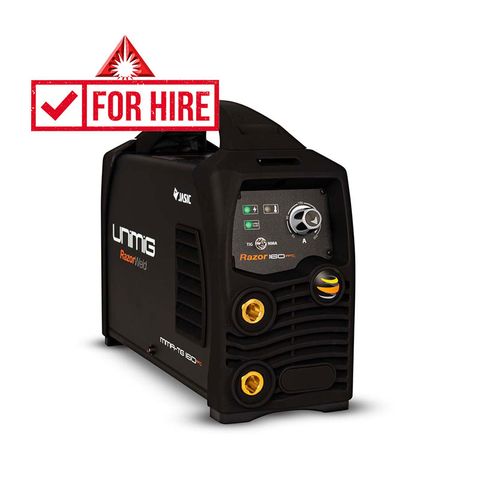

Unimig RAZOR Arc 160 PFC Stick/TIG Welder Mine Spec for Hire

Stock Code:
KUMJRRW160PFC-H
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Unimig Razor Arc 160 PFC is the perfect stick and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 10 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.

The Razor™ Arc 160 PFC features Power Factor Correction (PFC) for maximum electrical efficiency.

Features:
• Selectable VRD on/off (Voltage Reduction Device)
• Single PCB construction
• PFC ( Power Factor Correction) for maximum electrical efficiency
• Hot start (improves electrode starting
• Arc Force (boosts current to prevent electrode extinguishing)
• DC TIG Lift Arc ignition (prevents tungsten sticking during arc ignition)
• Thermal overload protection
• IP21S rating for environmental/safety protection
• Auto-compensation for voltage fluctuation
• Minimal harmonic feedback to power grid
• Generator use with pure sine wave generator only

Specifications:
Primary Input Voltage:240V 1 Phase
Rated Input Power: KVA7.1 KVA
Ieff: 10A
Rated Output:160A / 26.4V MMA - 160A / 16.4 TIG
Welding Current Range: 10-160A
No Load Voltage: 9V
Duty Cycle (40°C) –
MMA: 20% @ 160A
TIG: 45% @ 160A
Dimensions (mm): 365L x 227H x 135W
Weight (kgs): 6.5

Minimum Hire: 7 days (1 week)

Details

  • Brand:
    Alphaweld Welderentals
  • Unit/Pack:
    EA
  • Pack Qty:
    1
